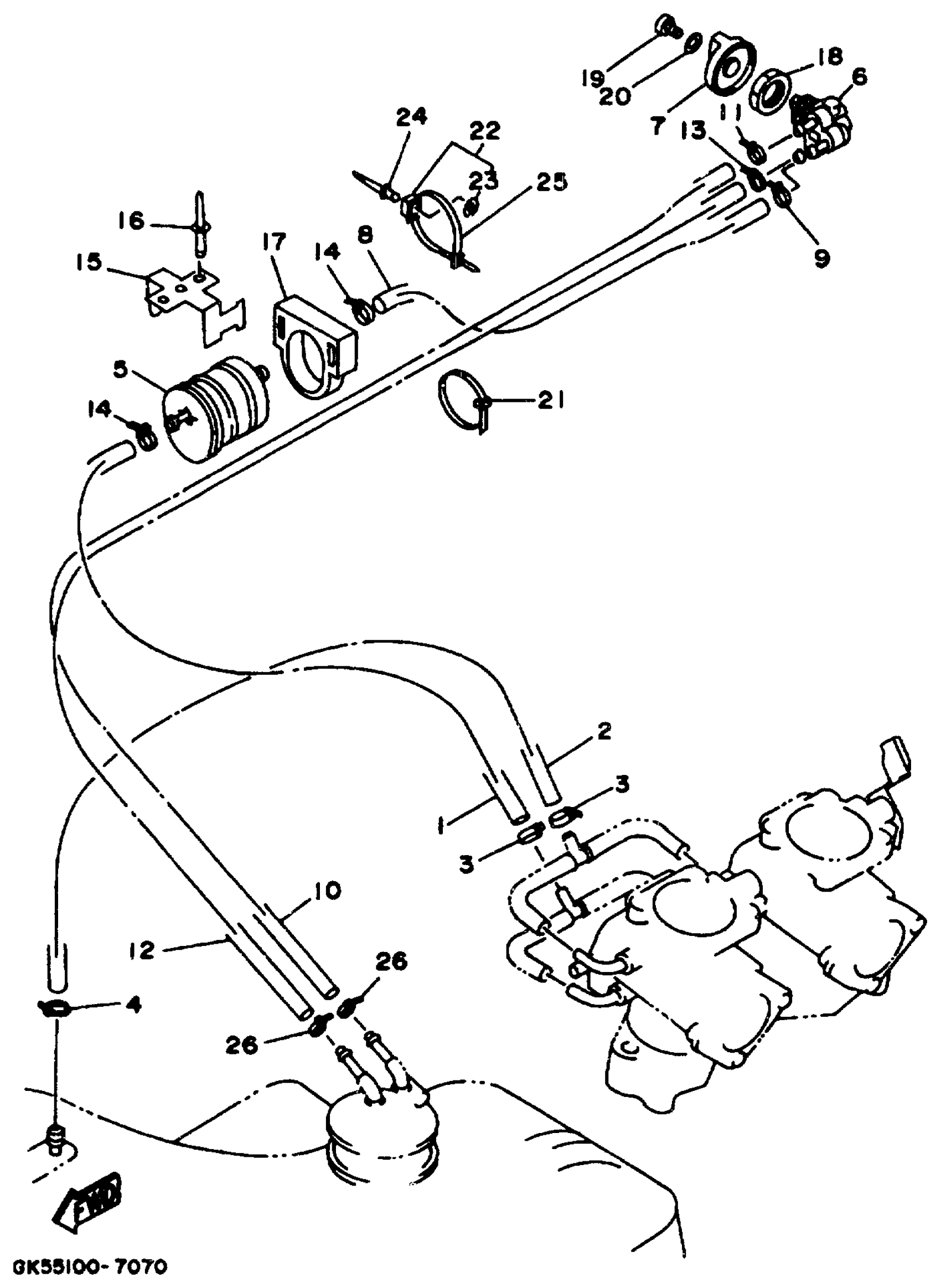

Find the part on the Fuel diagram for your 1997 Yamaha Wave Blaster II (WB760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Blaster II (WB760V) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

2

HOSE (L1700)

90445-10M87-00

1
Out of stock

3

CLAMP

90465-10098-00

1

$2.24

In stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

6

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

7

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

8

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

9

CLAMP

90465-10098-00

1

$2.24

In stock

10

HOSE (L1700)

90445-10M87-00

1
Out of stock

11

CLAMP

90465-10098-00

1

$2.24

In stock

12

HOSE (L1700)

90445-10M87-00

1
Out of stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

CLAMP

90465-10098-00

1

$2.24

In stock

15

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

16

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

17

HOLDER

EU0-67817-00-00

1

$17.99

In stock

18

NUT

90170-22M11-00

1
Out of stock

19

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

20

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

21

CLAMP (6E5)

90465-13M11-00

—

$5.72

In stock

22

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

23

. WASHER, PLAIN

90201-05925-00

1
Out of stock

24

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

25

BAND (EU0)

90601-20009-00

1

$6.46

In stock

26

CLAMP

90465-10098-00

1

$2.24

In stock
