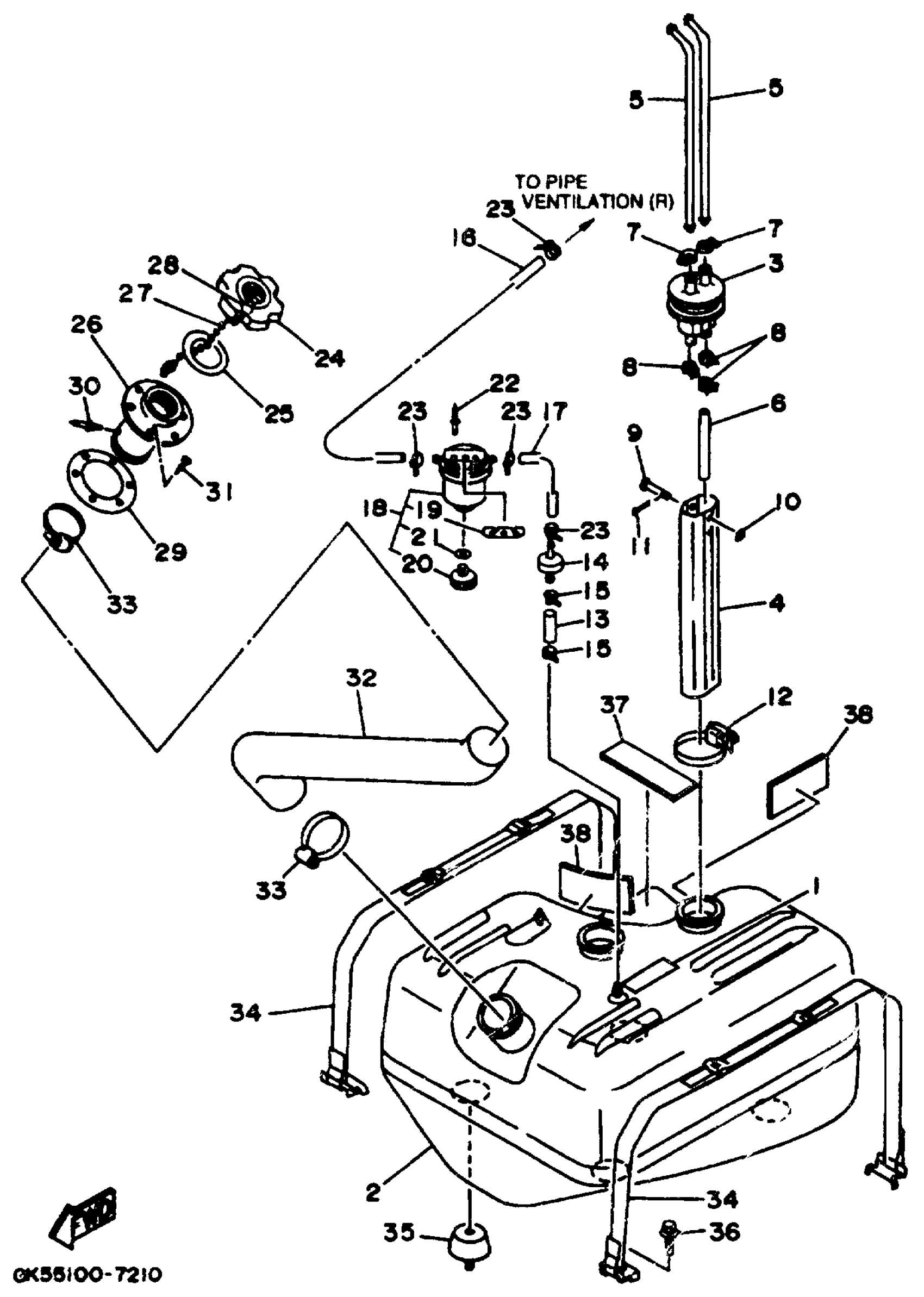

Yamaha WB760V (WAVE BLASTER II) 1997 FUEL TANK Diagram

#

Description
Price

1

LABEL,FUEL TANK

GH1-6418D-01-00

Unavailable

2

FUEL TANK

GH1-67711-01-00

Unavailable

3

PIPE, JOINT

FJ0-67713-01-00

Unavailable

4

PIPE, FILLER

EW2-67716-02-00

$24.98

5

PIPE, SUCTION 3

FN8-67714-02-00

Unavailable

6

HOSE (L198)

90445-11293-00

$6.69

7

BAND, HOSE 11

90601-11062-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$4.89

9

PIN (FJ0)

91790-05040-00

$2.53

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

PIN. COTTER

91490-16010-00

$2.36

12

BAND, HOSE 62

90601-16274-00

$19.68

13

HOSE

90699-50100-00

$26.99

14

CHECK VALVE

EU0-67767-31-00

$20.93

15

CLAMP

90465-10098-00

$1.68

16

HOSE, AIRVENT 3

GA7-6785H-00-00

Unavailable

17

HOSE

90699-50100-00

$26.99

18

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

19

. PLATE, FILTER

EW2-62142-00-00

$44.99

20

. PLUG, DRAIN

70R-24543-00-00

$9.08

21

. O-RING

70R-24489-00-00

$5.00

22

RIVET, BLIND

90267-48940-00

$10.99

23

CLAMP

90465-10098-00

$1.68

24

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

25

PACKING 1

EU0-67832-00-00

$7.40

26

SOCKET

FN8-67833-00-00

Unavailable

27

. CHAIN BALL

EU0-67835-00-00

$5.18

28

COUPLING

EU0-67839-00-00

$6.36

29

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

30

. RIVET, BLIND

90267-40935-00

$1.28

31

SCREW, FLAT HEAD

EU0-67869-00-00

$3.64

32

HOSE

GK5-67844-00-00

Unavailable

33

BAND, HOSE 55

90601-15573-00

$12.86

34

BELT, TANK 1

GH1-67743-02-00

Unavailable

35

DAMPER,FUEL TANK

GH1-6782B-01-00

Unavailable

36

BOLT, WITH WASHER

90119-08903-00

Unavailable

37

MAT 1

GH1-6759B-00-00

Unavailable

38

MAT 2

GH1-6759C-00-00

$20.99
