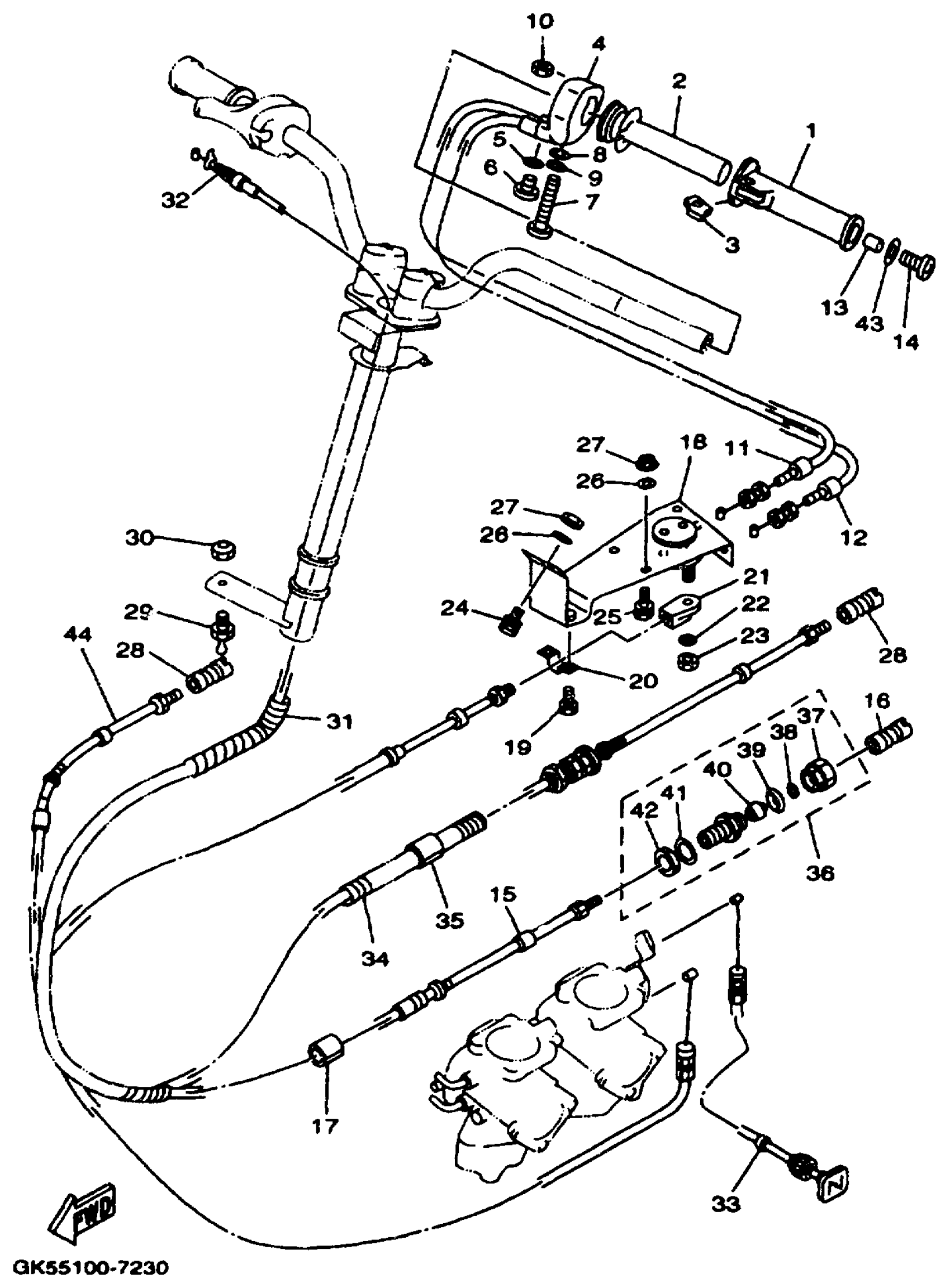

Yamaha WB760V (WAVE BLASTER II) 1997 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE

GH1-6155C-00-00

Unavailable

2

GRIP, INNER

GH1-6155B-00-00

Unavailable

3

. LEVER ASSEMBLY

GH1-6151M-00-00

Unavailable

4

HOUSING ASSY

99999-02927-00

Unavailable

5

WASHER, PLAIN (646)

92990-04600-00

$5.99

6

SCREW, BINDING (M01)

98980-04010-00

$6.99

7

SCREW, PAN HEAD

97890-06065-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT, SPECIAL

GH1-6143B-00-00

Unavailable

11

CABLE, NOZZLE CONTROL 2

GK5-6153D-00-00

Unavailable

12

CABLE, NOZZLE CONTROL 2

GH1-6153D-10-00

Unavailable

13

COLLAR(GH1)

90387-05916-00

Unavailable

14

SCREW (FJ0)

90149-05960-00

$4.14

15

CABLE, NOZZLE CONTROL 3

GK5-6153E-00-00

Unavailable

16

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

17

PACKING, HOSE 2

GJ1-67578-00-00

Unavailable

18

REMOCON, NOZZLE 2

GK5-6153J-00-00

Unavailable

19

BOLT(GH1)

97080-06012-00

Unavailable

20

CLAMP, CABLE

GH1-6043H-00-00

Unavailable

21

END, CABLE

GH1-6046C-00-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

NUT, FLANGE

95780-06300-00

Unavailable

24

BOLT, WITH WASHER

90119-06896-00

Unavailable

25

BOLT, WITH WASHER

90119-06900-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

NUT, SELF-LOCKING

95720-06300-00

Unavailable

28

SHAFT,JOINT BALL

GK5-6146F-00-00

Unavailable

29

STOOD, JOINT BALL

EU0-61461-01-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

Unavailable

31

SPI-LAP 11

90699-36100-00

Unavailable

32

CABLE, THROTTLE

GK5-67252-00-00

Unavailable

33

CABLE, CHOKE

GK5-67242-10-00

Unavailable

34

SPI-LAP 11

90699-36100-00

Unavailable

35

PACKING, HOSE 2

GK5-67578-00-00

Unavailable

36

CONNECTOR, CABLE

EU0-67267-00-00

Unavailable

37

. CAP

EU0-62694-00-00

Unavailable

38

. WASHER 30

EU0-61446-00-00

Unavailable

39

. STOPPER

EU0-61486-00-00

Unavailable

40

. SEAL, PIPE 30

EU0-61435-00-00

Unavailable

41

. PACKING (C)

EU0-61438-00-00

Unavailable

42

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

43

WASHER, PLATE

90201-05800-00

Unavailable

44

STEERING CABLE ASSY

GK5-61480-00-00

Unavailable
