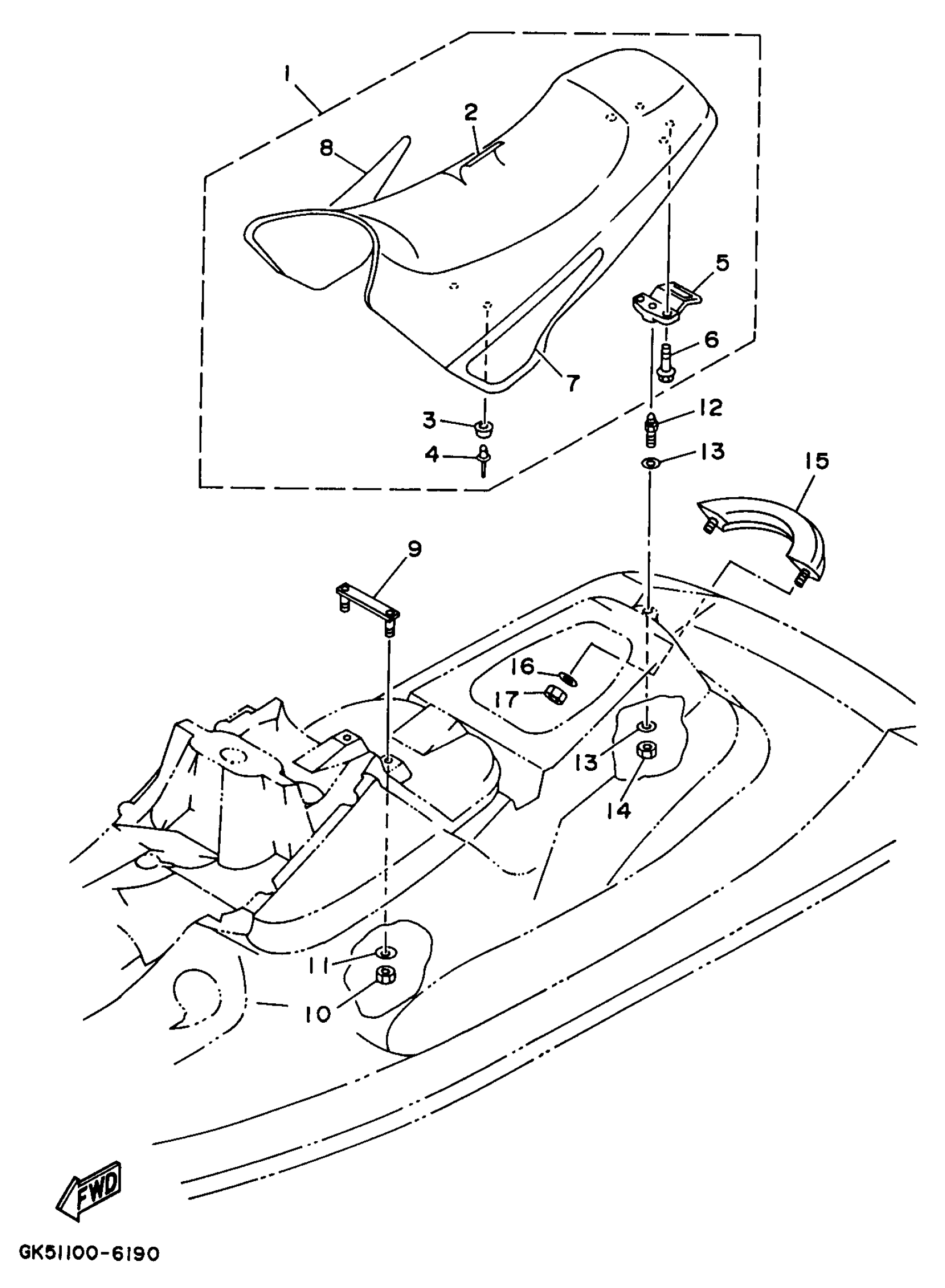

Yamaha WB760U (WAVE BLASTER II) 1996 SEAT - UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GK5-6371A-00-00

Unavailable

2

. COVER, SEAT 1

GK5-6371B-00-00

Unavailable

3

. STOPPER, SEAT

GK5-63729-00-00

Unavailable

4

RIVET,BLIND

90267-48107-00

Unavailable

5

SEAT LOCK ASSY

GH1-63850-03-00

Unavailable

6

BOLT, WITH WASHER

90119-06914-00

Unavailable

7

. GRAPHIC A

GK5-64173-10-00

Unavailable

8

. GRAPHIC A

GK5-64173-20-00

Unavailable

9

STAY, SEAT 1

GH1-6378C-00-00

Unavailable

10

NUT, SELF-LOCKING

95720-06300-00

Unavailable

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN

GH1-63774-01-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

14

NUT, NYLON (FN8)

95720-10300-00

$4.42

15

GRIP, HAND

GK5-6271B-00-00

Unavailable

16

WASHER (FJ0)

90201-08929-00

Unavailable

17

. NUT, SELF-LOCKING

95720-08300-00

Unavailable
