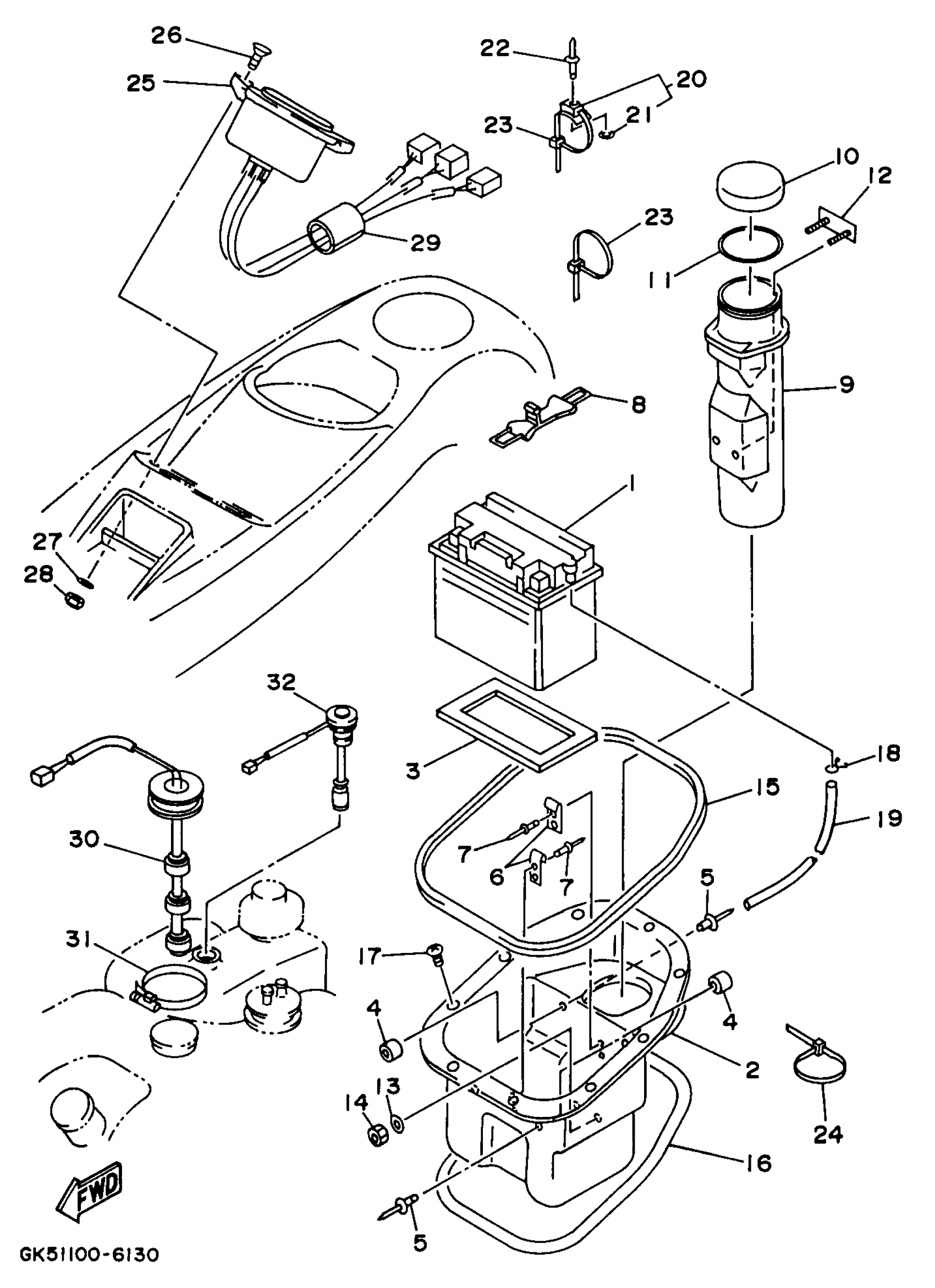

Yamaha WB760U (WAVE BLASTER II) 1996 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

2

BATTERY CASE COMP.

GK5-68211-00-00

Unavailable

3

PAD, BATTERY

F1S-U8221-00-00

$2.75

4

CUSHION, RUBBER

GK5-63768-00-00

$5.80

5

RIVET, BLIND

90267-48802-00

$1.98

6

HOOK A

GA7-65772-00-00

$9.08

7

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

8

BAND, BATTERY

GA7-68218-00-00

$41.99

9

BOX, FIRE EXTINGUISHER

GK5-65983-00-00

Unavailable

10

. CAP, CASE

EW2-65912-00-00

$23.99

11

. PACKING, CASE

EW2-65913-00-00

$5.91

12

BRACKET FIRE EXTINGUISHER

GK5-6593H-00-00

Unavailable

13

. WASHER, PLAIN

92990-05200-00

$4.29

14

NUT, FLANGE

95720-05300-00

$1.28

15

PACKING 4

GK5-6266C-00-00

Unavailable

16

PACKING 48

90656-67105-00

Unavailable

17

SCREW, TAPPING(61A)

97780-50612-00

$3.77

18

CLIP

90467-08M10-00

Unavailable

19

HOSE

90699-50135-00

Unavailable

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

. WASHER, PLAIN

90201-05925-00

Unavailable

22

RIVET, BLIND

90267-48802-00

$1.98

23

BAND (EU0)

90601-20009-00

$6.36

24

CLAMP (6E5)

90465-13M11-00

Unavailable

25

METER ASSY

GK5-6820A-01-00

Unavailable

26

SCREW

90149-06904-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

NUT, SELF-LOCKING

95720-06300-00

$1.82

29

PACKING

GK5-68244-00-00

Unavailable

30

SENDER, FUEL

GH1-6824B-00-00

Unavailable

31

BAND, HOSE 62

90601-162U5-00

$6.17

32

SENDER, OIL

GH1-6824C-00-00

Unavailable
