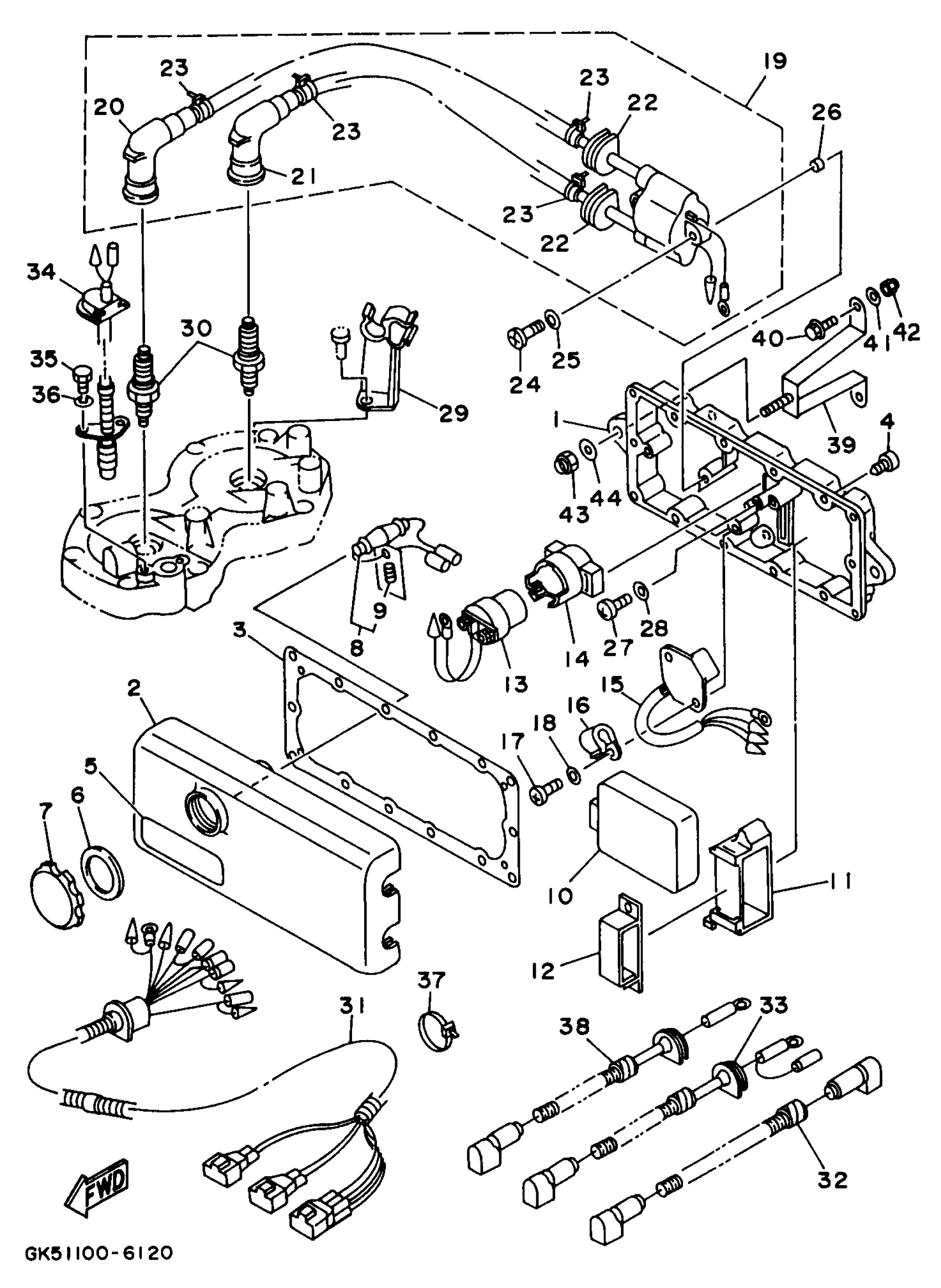

Yamaha WB760U (WAVE BLASTER II) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

64X-8552A-01-8P

Unavailable

2

COVER, CASE

6M6-8552E-01-00

$77.60

3

GASKET, TERMINAL

6M6-81921-00-00

$20.13

4

SCREW, TAPPING(65J)

97780-60625-00

$2.64

5

MARK 3

6R7-83623-40-00

$7.16

6

GASKET

6M6-81844-00-00

$10.99

7

CAP

6M6-8132W-00-00

$14.16

8

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

9

FUSE (10A)

1E6-82151-00-00

$5.80

10

C.D.I. UNIT ASSY

64X-85540-01-00

$399.99

11

BAND

64X-85546-00-00

Unavailable

12

CLAMP

90464-06M29-00

$6.27

13

STARTER RELAY ASSY

6G1-81941-10-00

$68.39

14

HOLDER, RELAY

6M6-81952-01-00

Unavailable

15

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

16

CLAMP

90465-08028-00

$4.31

17

SCREW, PAN HEAD

98580-06016-00

$2.96

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

IGNITION COIL ASSY

64X-85570-01-00

$264.28

20

. CAP, PLUG

62E-82371-10-00

Unavailable

21

. CAP, PLUG

62E-82371-10-00

Unavailable

22

GROMMET

90480-06M43-00

$5.69

23

CLAMP

90465-10098-00

$2.24

24

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.71

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

COLLAR(6R8)

90387-06M30-00

Unavailable

27

SCREW, PAN HEAD

98580-06016-00

$2.96

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

CLAMP, CORD

62T-82361-00-00

$10.99

30

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

31

EXTENSION, WIRE LEAD

63N-82553-00-00

$247.75

32

WIRE,LEAD

62T-82117-01-00

Unavailable

33

WIRE, LEAD

62T-82117-11-00

Unavailable

34

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

36

WASHER, SPRING

92995-06100-00

$3.04

37

CLAMP (6E5)

90465-13M11-00

Unavailable

38

WIRE, LEAD

6M6-82117-21-00

Unavailable

39

BRACKET, ELECTRIC BOX

GK5-6815D-00-00

Unavailable

40

BOLT,FLANGE (EW2)

90105-06903-00

Unavailable

41

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

42

NUT, SELF-LOCKING

95720-06300-00

$1.72

43

. NUT, SELF-LOCKING

95720-08300-00

$3.41

44

WASHER, PLAIN

92990-08200-00

$2.52
