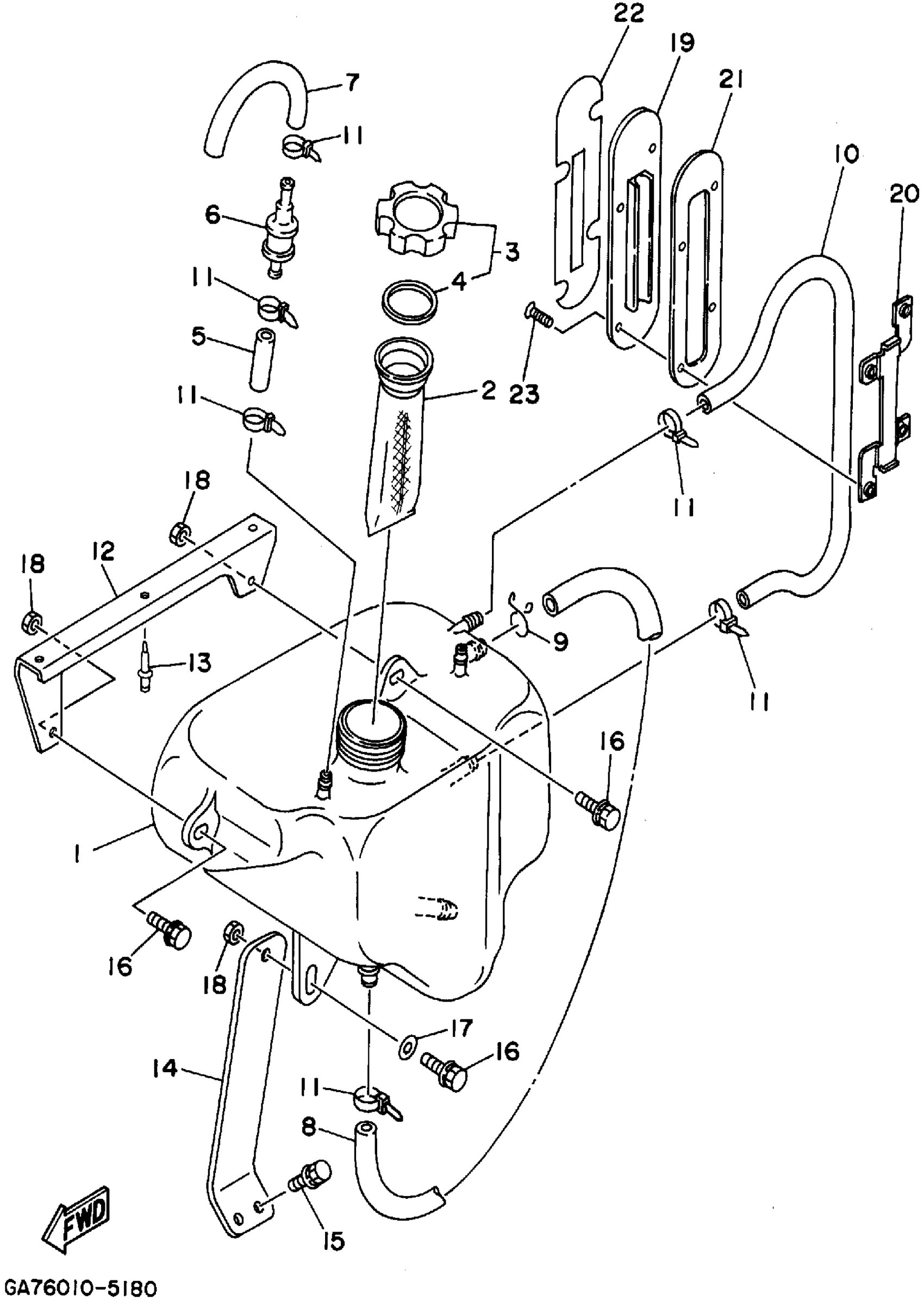

Yamaha WB700T (WAVE BLASTER) 1995 OIL TANK (FOR OIL INJECTION) Diagram

#

Description
Price

1

TANK, OIL

GA7-6775B-10-00

Unavailable

2

FILTER

FJ0-67752-00-00

Unavailable

3

OIL TANK CAP ASSY.

GE2-6784A-01-00

Unavailable

4

PACKING, OIL CAP

FJ0-67841-02-00

Unavailable

5

HOSE (L420)

90445-092K1-00

$12.49

6

. ROLL OVER VALVE

FJ0-67766-00-00

Unavailable

7

HOSE

F3D-6215E-00-00

Unavailable

8

HOSE

90446-11905-00

Unavailable

9

CLIP(72X)

90467-11M08-00

Unavailable

10

HOSE

90446-09907-00

Unavailable

11

CLAMP

90465-10098-00

Unavailable

12

BRACKET, OIL TANK

GA7-6775F-01-00

Unavailable

13

RIVET (EU0)

90267-48938-00

Unavailable

14

BRACKET, OIL TANK 2

GA7-6775L-01-00

Unavailable

15

BOLT, WITH WASHER

90119-06913-00

Unavailable

16

BOLT,WITH WASHER

90119-06940-00

Unavailable

17

WASHER (FJ0)

90201-08929-00

Unavailable

18

NUT, SELF-LOCKING

95720-06300-00

Unavailable

19

GAGE, LEVEL

GA7-6775D-00-00

Unavailable

20

BASE, LEVEL GAUGE

GA7-6775H-00-00

Unavailable

21

PACKING

GA7-6775E-00-00

Unavailable

22

LABEL, OIL GAUGE

GA7-6412B-00-00

Unavailable

23

SCREW

90149-05985-00

Unavailable
