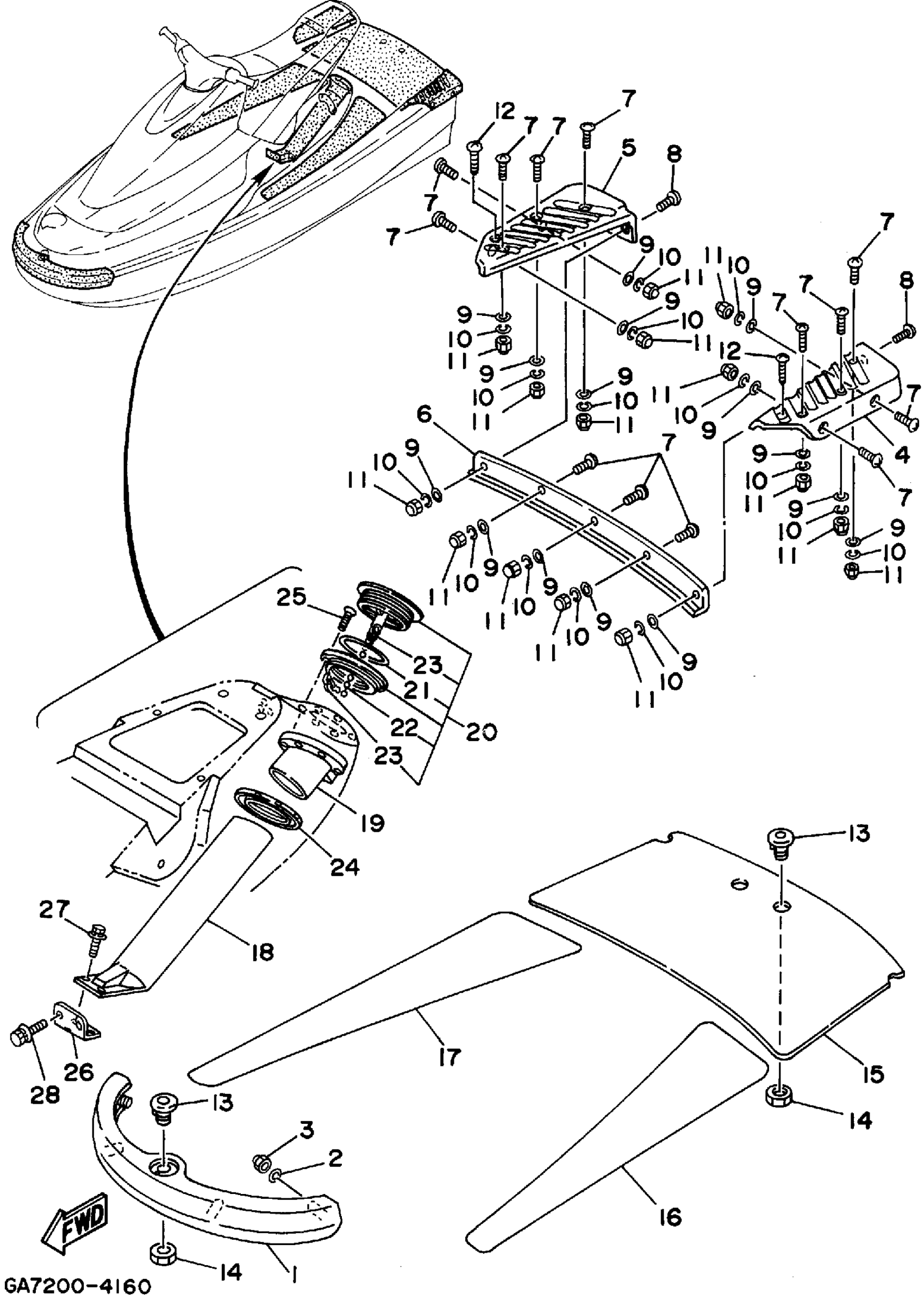

Yamaha WB700T (WAVE BLASTER) 1995 GUNWALE - MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GA7-62501-00-00

Unavailable

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

3

NUT (J17)

95380-06800-00

$8.49

4

GUNWALE, STERN 1

GA7-6251D-00-00

Unavailable

5

GUNWALE, STERN 2

GA7-6251E-00-00

Unavailable

6

COVER, GUNWALE 1

GA7-6252C-00-00

Unavailable

7

SCREW,BINDING

90154-06818-00

Unavailable

8

SCREW

90149-06971-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT (J17)

95380-06800-00

$8.49

12

SCREW

90149-05937-00

Unavailable

13

ROPE HOLE

FN8-61651-01-00

Unavailable

14

NUT

EU0-61652-00-00

Unavailable

15

MAT, UPPER

GA7-63581-00-00

Unavailable

16

MAT, STEP 1

GA7-6351H-01-00

Unavailable

17

MAT, STEP 2

GA7-6351J-01-00

Unavailable

18

BOX, FIRE EXTINGUISHER

GA7-65983-00-00

Unavailable

19

GROMMET

GA7-65984-00-00

Unavailable

20

INSPECTION CVR ASY

GA7-62720-11-00

Unavailable

21

. RING

93211-03902-00

Unavailable

22

. CHAIN BALL

EU0-67835-30-00

Unavailable

23

COUPLING

EU0-67839-00-00

Unavailable

24

PLATE, FIRE EXTINGUISHER

GA7-6593J-00-00

Unavailable

25

SCREW,FLAT HEAD

98780-04535-00

Unavailable

26

BRKT. FIRE EXTINGUISHER

GA7-6593H-00-00

Unavailable

27

BOLT,WITH WASHER

90119-06940-00

Unavailable

28

BOLT, WITH WASHER

90119-06901-00

Unavailable
