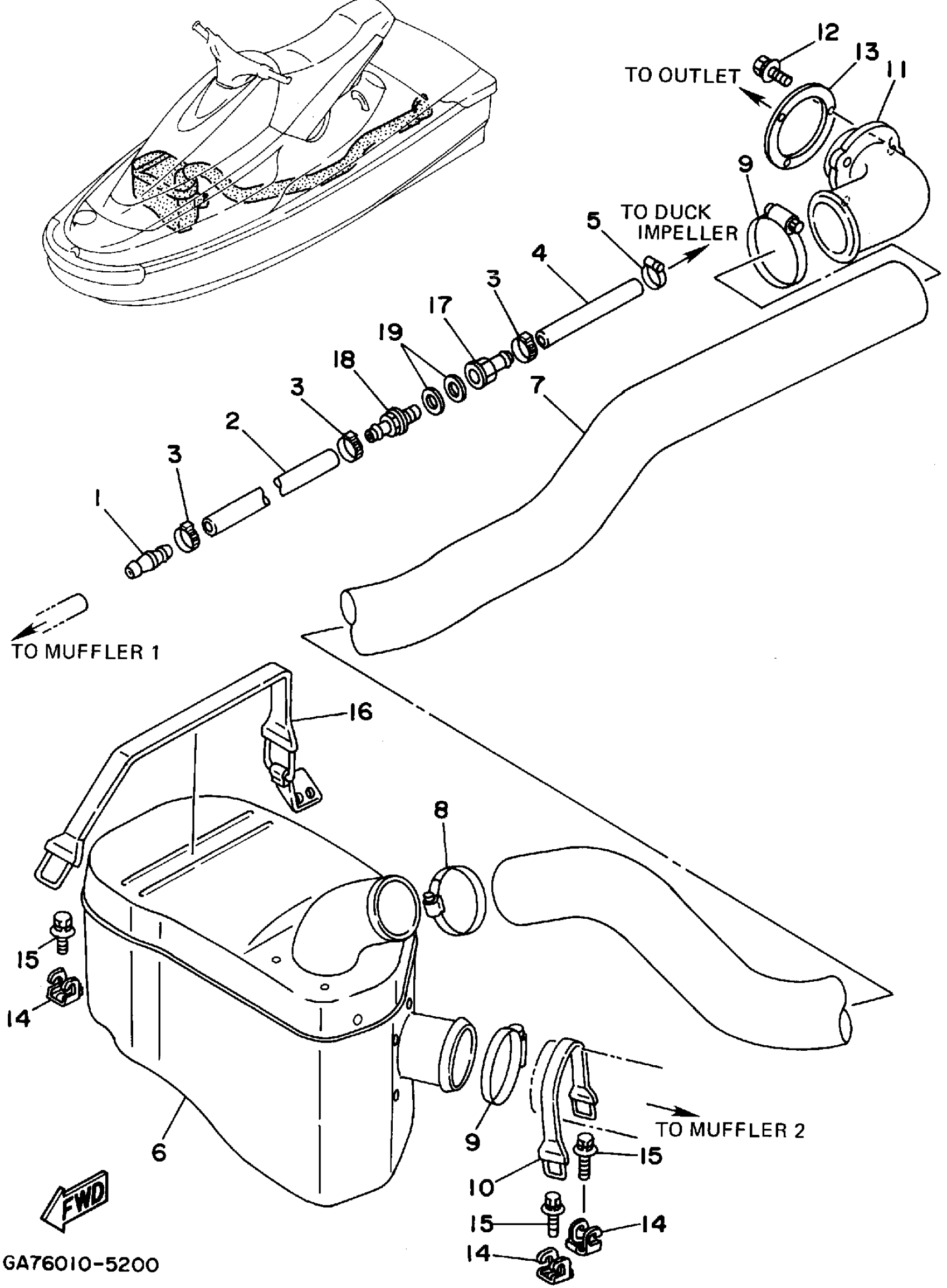

Yamaha WB700T (WAVE BLASTER) 1995 EXHAUST 2 Diagram

#

Description

Price

1

CONNECTION

6M6-51142-00-00

Unavailable

2

HOSE

90445-14M03-00

Unavailable

3

NYLON CLIP 1(GH1)

90601-11583-00

$8.49

4

HOSE

90445-14M17-00

Unavailable

5

BAND, HOSE 11

90601-11062-00

Unavailable

6

WATER LOCK COMP

GA7-67550-02-00

Unavailable

7

HOSE

GA7-67555-00-00

Unavailable

8

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$33.99

9

BAND,HOSE 75(GR7)

90601-17586-00

Unavailable

10

BAND, WATER LOCK

GA7-6756E-00-00

Unavailable

11

THRU-HULL

FN8-67565-01-00

Unavailable

12

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

13

PACKING

GA7-67525-00-00

Unavailable

14

HOOK A

EU0-65772-30-00

Unavailable

15

BOLT, WITH WASHER

90119-06913-00

Unavailable

16

HOOK C

GA7-67570-00-00

Unavailable

17

CONNECTION, THRU-HULL 1/4

90604-80757-00

Unavailable

18

CONNECTION, THRU-HULL 1/4

90604-80758-00

Unavailable

19

GASKET

90430-13909-00

Unavailable
