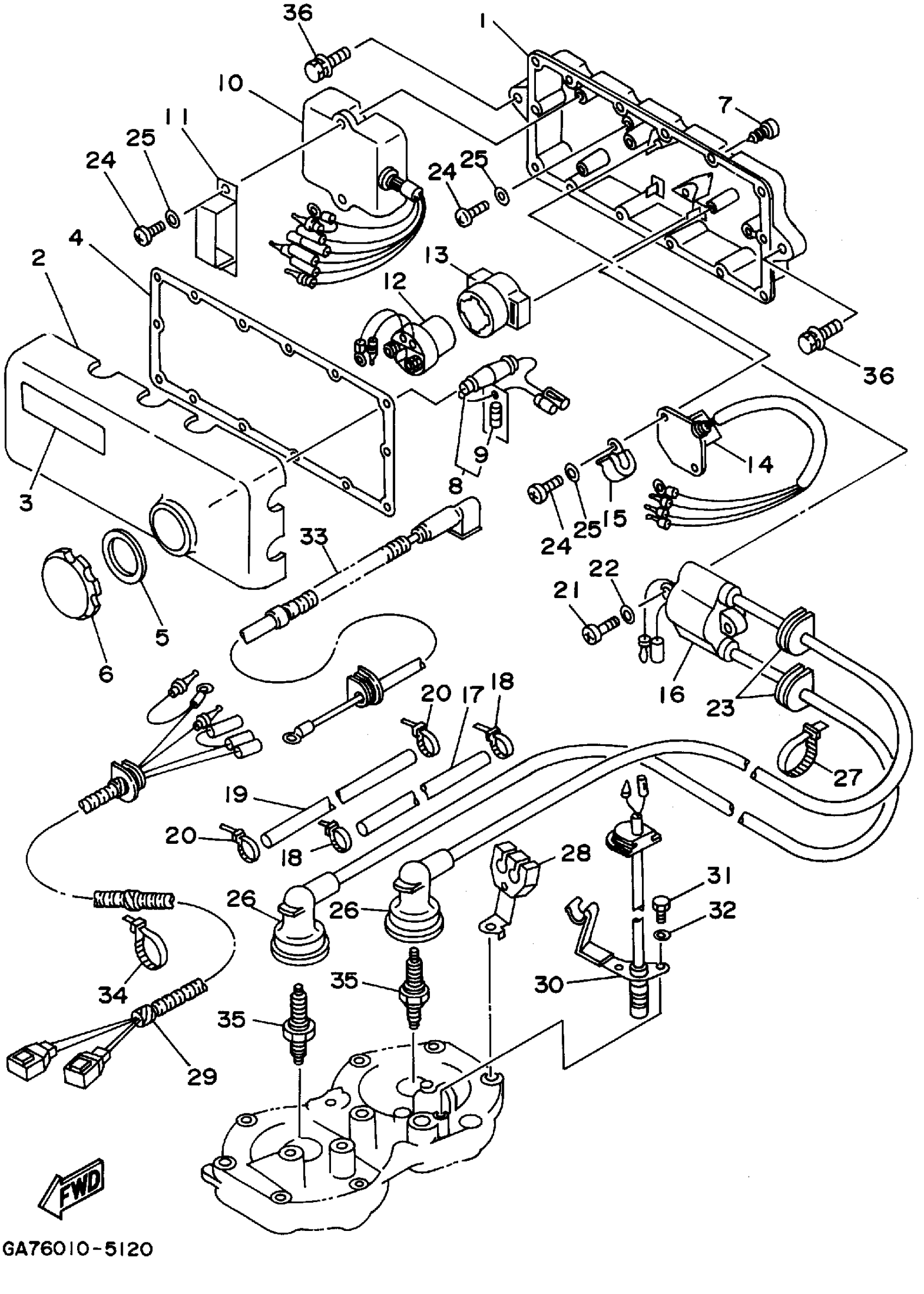

Yamaha WB700T (WAVE BLASTER) 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6M6-8552A-01-8P

$137.86

2

COVER, CASE

6M6-8552E-01-00

$78.77

3

MARK 3

6R7-83623-40-00

$7.27

4

GASKET, TERMINAL

6M6-81921-00-00

$19.63

5

GASKET

6M6-81844-00-00

$10.99

6

CAP

6M6-8132W-00-00

$14.38

7

SCREW, TAPPING(65J)

97780-60625-00

$2.64

8

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

9

FUSE (10A)

1E6-82151-00-00

$5.80

10

C.D.I. UNIT ASSY

6M6-85540-02-00

Unavailable

11

CLAMP

90464-06M29-00

$6.36

12

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

13

HOLDER, RELAY

6M6-81952-01-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

15

CLAMP

90465-08028-00

$4.31

16

IGNITION COIL ASSY

62E-85570-00-00

$152.35

17

TUBE, CORD 2

6R8-82352-00-00

Unavailable

18

CLAMP

90465-10098-00

$1.68

19

TUBE, CORD 2

6R8-82352-00-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

GROMMET

90480-06M43-00

$6.82

24

SCREW, PAN HEAD

98580-06016-00

$2.88

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

27

CLAMP

90465-10098-00

$1.68

28

CLAMP, CORD

6R7-82361-00-00

Unavailable

29

EXTENSION, WIRE LEAD

62E-82553-00-00

Unavailable

30

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, SPRING

92995-06100-00

$2.95

33

WIRE, LEAD

62E-82117-20-00

$89.38

34

CLAMP

90465-10098-00

$1.68

35

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

36

BOLT, WITH WASHER

90119-08038-00

$4.99
