1995 Yamaha Wave Blaster (WB700T) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1995 Yamaha Wave Blaster (WB700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

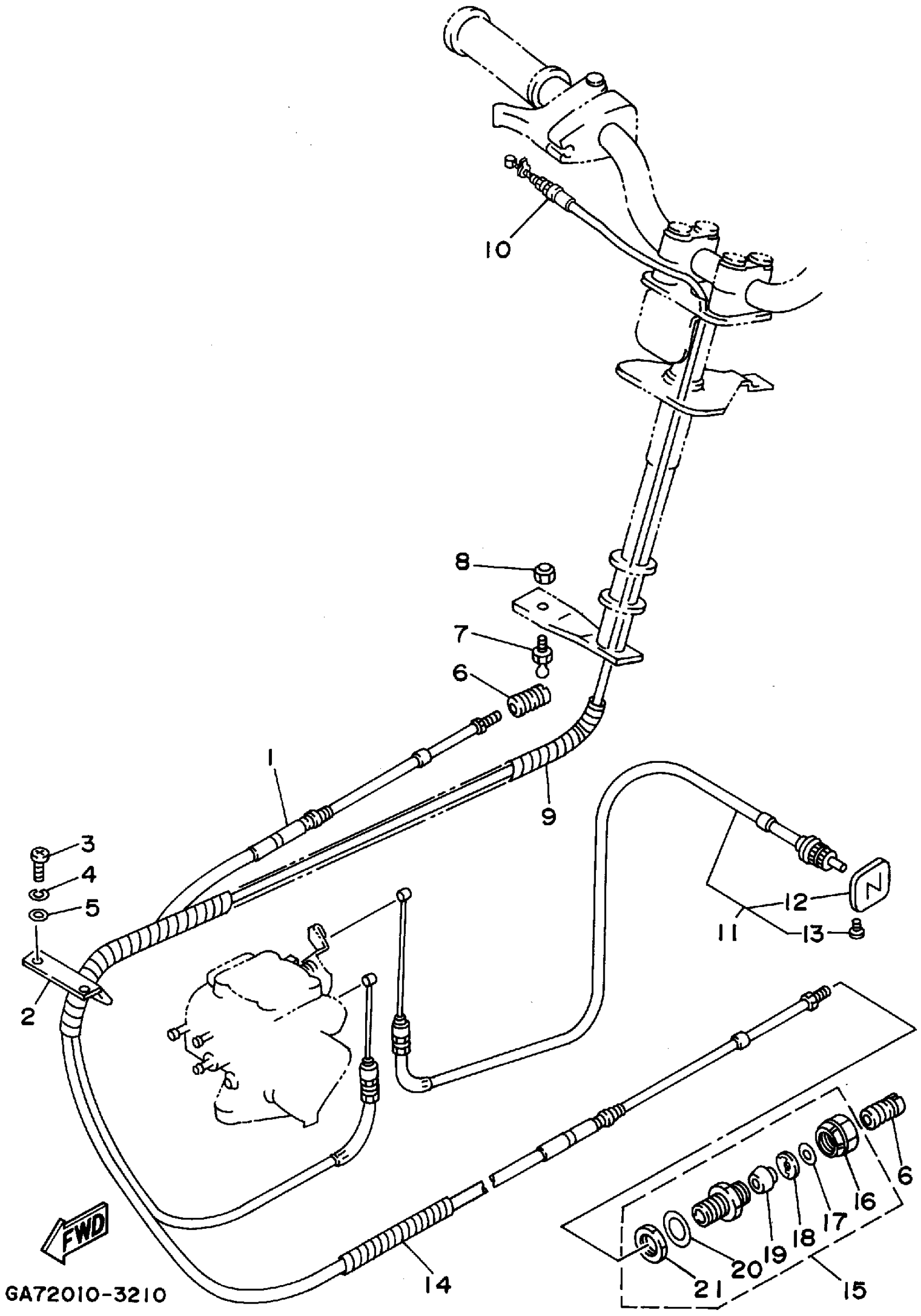

1995 Yamaha Wave Blaster (WB700T) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

GA7-61481-00-00

1

$210.49

In stock

2

GUIDE, CABLE

EU0-61557-01-00

1
Out of stock

3

SCREW, PANHEAD (796)

98580-04016-00

1
Out of stock

4

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

5

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

6

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

7

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

8

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

9

SPI-LAP 11

90699-36100-00

1
Out of stock

10

CABLE, THROTTLE 1

EU0-U7252-01-00

1

$131.70

In stock

11

CABLE, CHOKE

GA7-67242-00-00

1
Out of stock

12

. KNOB

EW2-67243-00-00

1

$17.99

In stock

13

. SCREW

90149-03930-00

1

$1.38

In stock

14

SPI-LAP 11

90699-36100-00

1
Out of stock

15

CONNECTOR, CABLE

EU0-67267-00-00

1

$43.19

In stock

16

. CAP

EU0-62694-00-00

1

$14.49

In stock

17

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

18

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

19

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

20

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

21

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock
