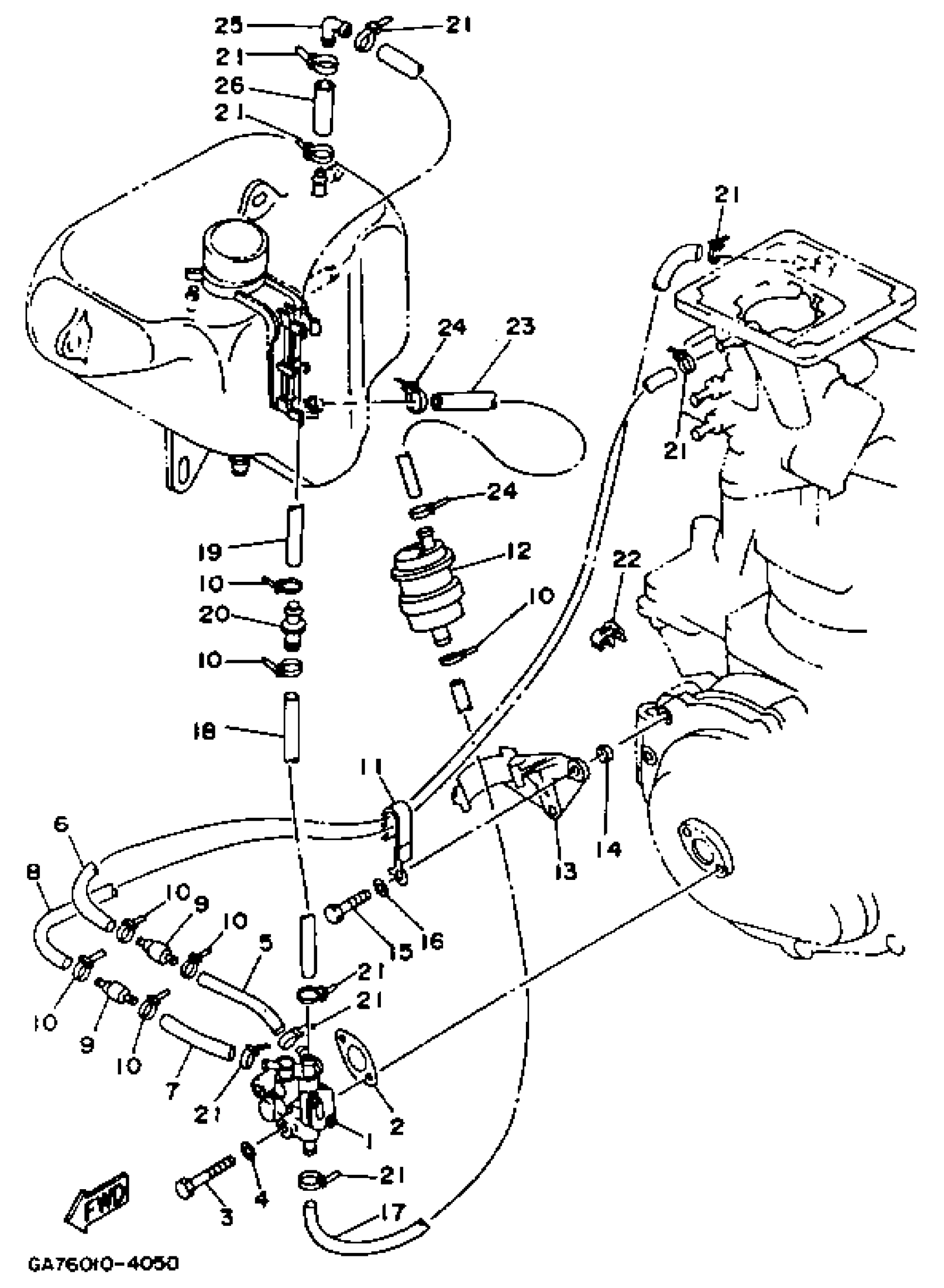

Yamaha WB700S (WAVE BLASTER) 1994 OIL PUMP (FOR OIL INJECTION) Diagram

#

Description

Price

1

OIL INJECTION PUMP ASSEMBLY

61X-13200-00-00

Unavailable

2

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

3

BOLT(J52)

97080-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

HOSE(62T)

90446-07M48-00

Unavailable

6

HOSE(62T)

90446-07M48-00

Unavailable

7

HOSE(62T)

90446-07M48-00

Unavailable

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

CLAMP

90465-08M37-00

Unavailable

12

SUB TANK, OIL

6R8-21733-00-00

Unavailable

13

HOLDER, OIL SUB TANK

6R8-21734-00-00

Unavailable

14

COLLAR

90387-06704-00

Unavailable

15

BOLT(JF7)

97080-06030-00

$5.49

16

WASHER, PLAIN (646)

92990-06600-00

$2.80

17

HOSE (6R8)

90445-11M25-00

Unavailable

18

HOSE (6R8)

90446-12M27-00

Unavailable

19

HOSE (L360)

90445-11M15-00

Unavailable

20

PIPE, JOINT 2

6R8-24377-00-00

Unavailable

21

CLAMP

90465-10098-00

Unavailable

22

CLAMP(6R8)

90464-10M38-00

Unavailable

23

.. HOSE (L240)

90445-11M27-00

Unavailable

24

CLAMP

90465-10098-00

Unavailable

25

PIPE, JOINT 4

61L-24378-00-00

Unavailable

26

HOSE (L420)

90445-092K1-00

Unavailable
