Description

Price

1

COVER

61X-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

Unavailable

3

GROMMET(GD0)

90480-06M69-00

$63.99

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

Unavailable

5

PIN, DOWEL(6R7)

93606-07M17-00

$9.49

6

SHAFT, COUPLER

62E-51323-00-00

Unavailable

7

O-RING(6R7)

93210-17MA4-00

$7.49

8

HOUSING SET, BEARING (61X-00)

99999-02643-00

Unavailable

9

BUSH

90386-08006-00

Unavailable

10

HOSE (L445)

90445-09M21-00

$26.99

11

CLAMP, HOSE(61L)

90460-11M17-00

$20.99

12

NIPPLE, HOSE

61L-45378-00-00

Unavailable

13

OIL SEAL(62T)

93101-25M55-00

$30.99

14

CIRCLIP

93430-47M04-00

Unavailable

15

BEARING

93305-205U0-00

Unavailable

16

OIL SEAL

93101-24001-00

Unavailable

17

BOLT, WITH WASHER

90119-08907-00

Unavailable

18

SHIM (T=0.5)

GD0-67249-A0-00

Unavailable

18

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

19

PIPE 1

GA7-6883B-00-00

Unavailable

20

BAND, HOSE 52

90601-15272-00

Unavailable

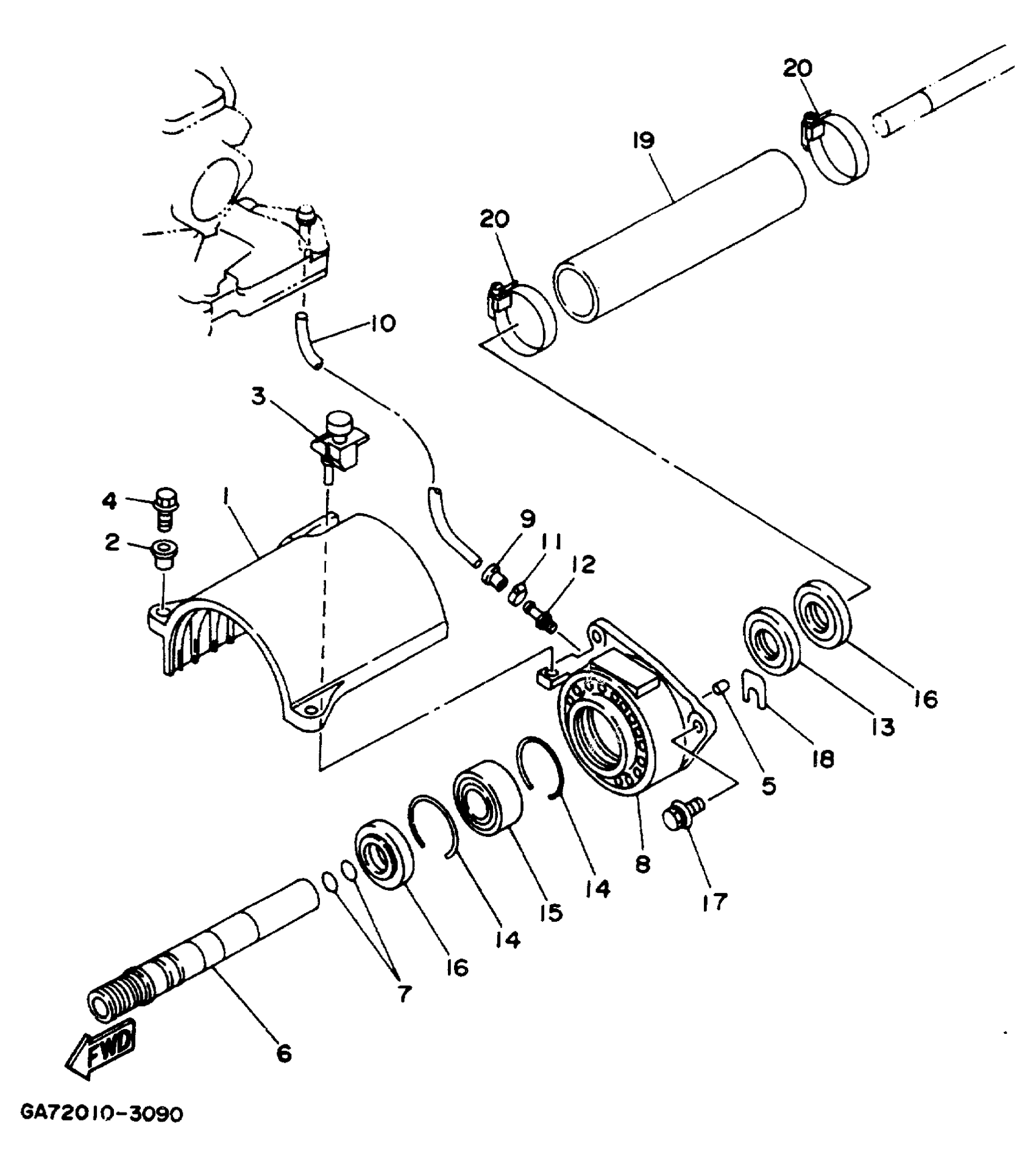

Yamaha WB700S (WAVE BLASTER) 1994 JET UNIT 2 Diagram

COVER

COLLAR

GROMMET(GD0)

BOLT, HEXAGON W/W DEEP RECESS

PIN, DOWEL(6R7)

SHAFT, COUPLER

O-RING(6R7)

HOUSING SET, BEARING (61X-00)

BUSH

HOSE (L445)

CLAMP, HOSE(61L)

NIPPLE, HOSE

OIL SEAL(62T)

CIRCLIP

BEARING

OIL SEAL

BOLT, WITH WASHER

SHIM (T=0.5)

SHIM (T=1.0)

PIPE 1

BAND, HOSE 52
