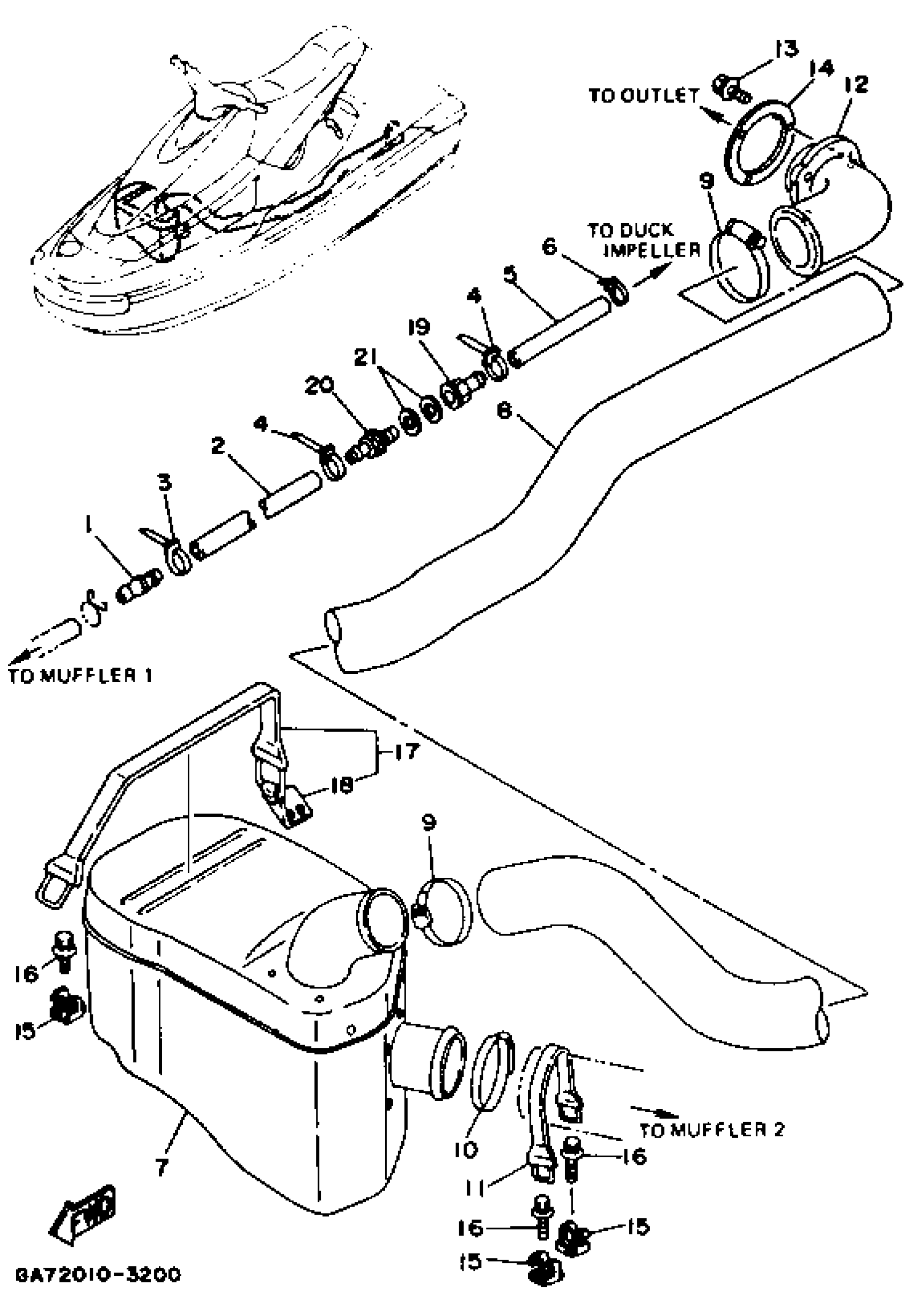

Yamaha WB700S (WAVE BLASTER) 1994 EXHAUST 2 Diagram

#

Description
Price

1

CONNECTION

6M6-51142-00-00

Unavailable

2

HOSE

90445-14M03-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

CLAMP

90465-10098-00

$1.68

5

HOSE

90445-14M17-00

Unavailable

6

CLAMP

90465-10098-00

$1.68

7

WATER LOCK COMP

GA7-67550-02-00

Unavailable

8

HOSE

GA7-67555-00-00

Unavailable

9

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$15.65

10

BAND,HOSE 75(GR7)

90601-17586-00

$15.89

11

BAND, WATER LOCK

GA7-6756E-00-00

$36.35

12

THRU-HULL

FN8-67565-01-00

Unavailable

13

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

14

PACKING

GA7-67525-00-00

Unavailable

15

HOOK A

EU0-65772-30-00

$10.49

16

BOLT, WITH WASHER

90119-06913-00

$1.28

17

HOOK C

GA7-67570-00-00

Unavailable

18

BAND, FUEL TANK

EW2-67821-00-00

$38.49

19

CONNECTION, THRU-HULL 1/4

90604-80757-00

Unavailable

20

CONNECTION, THRU-HULL 1/4

90604-80758-00

Unavailable

21

GASKET

90430-13909-00

Unavailable
