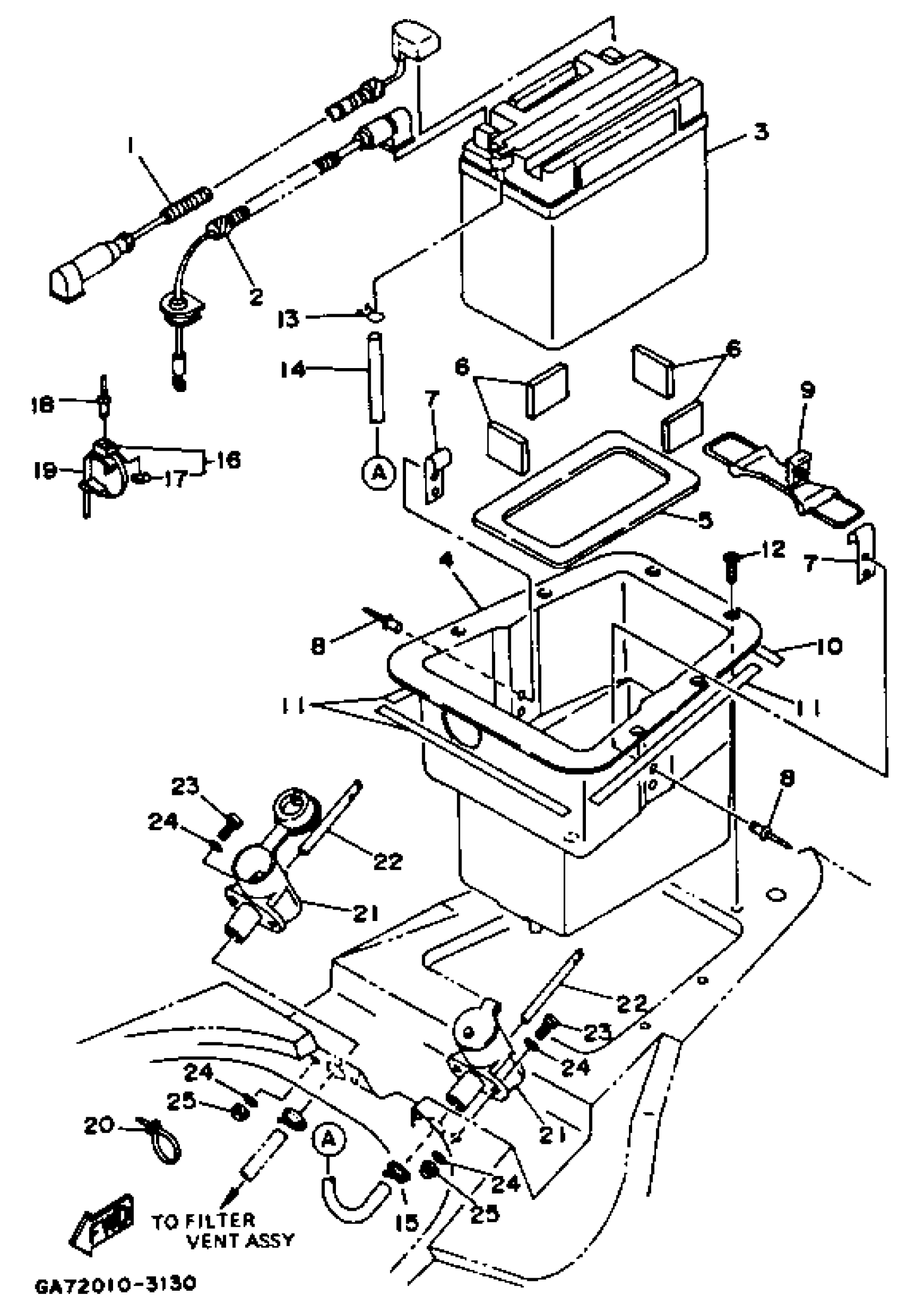

Yamaha WB700S (WAVE BLASTER) 1994 ELECTRICAL 2 Diagram

#

Description

Price

1

WIRE, LEAD

62E-82117-00-00

Unavailable

2

WIRE, LEAD

62T-82117-11-00

Unavailable

3

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

4

BATTERY CASE COMP.

GA7-68211-00-00

Unavailable

5

PAD, BATTERY

F1S-U8221-00-00

Unavailable

6

PAD, BATTERY 2

EU0-68221-30-00

Unavailable

7

HOOK A

GA7-65772-00-00

Unavailable

8

RIVET, BLIND

90267-48934-00

Unavailable

9

BAND, BATTERY

GA7-68218-00-00

Unavailable

10

PACKING 48

90656-67105-00

Unavailable

11

PACKING 48

90656-67105-00

Unavailable

12

SCREW, TAPPING

97780-50220-00

Unavailable

13

CLIP

90467-08M10-00

Unavailable

14

HOSE

90699-50135-00

Unavailable

15

BAND

90601-200U1-00

Unavailable

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

. WASHER, PLAIN

90201-05925-00

Unavailable

18

RIVET, BLIND

90267-48802-00

Unavailable

19

BAND (EU0)

90601-20009-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

SOCKET, VENTILATION

GA7-62159-00-00

Unavailable

22

PIPE, VENTILATION

GA7-62149-00-00

Unavailable

23

SCREW, PAN HEAD

98580-05020-00

Unavailable

24

. WASHER, PLAIN

92990-05200-00

Unavailable

25

NUT, FLANGE

95720-05300-00

Unavailable
