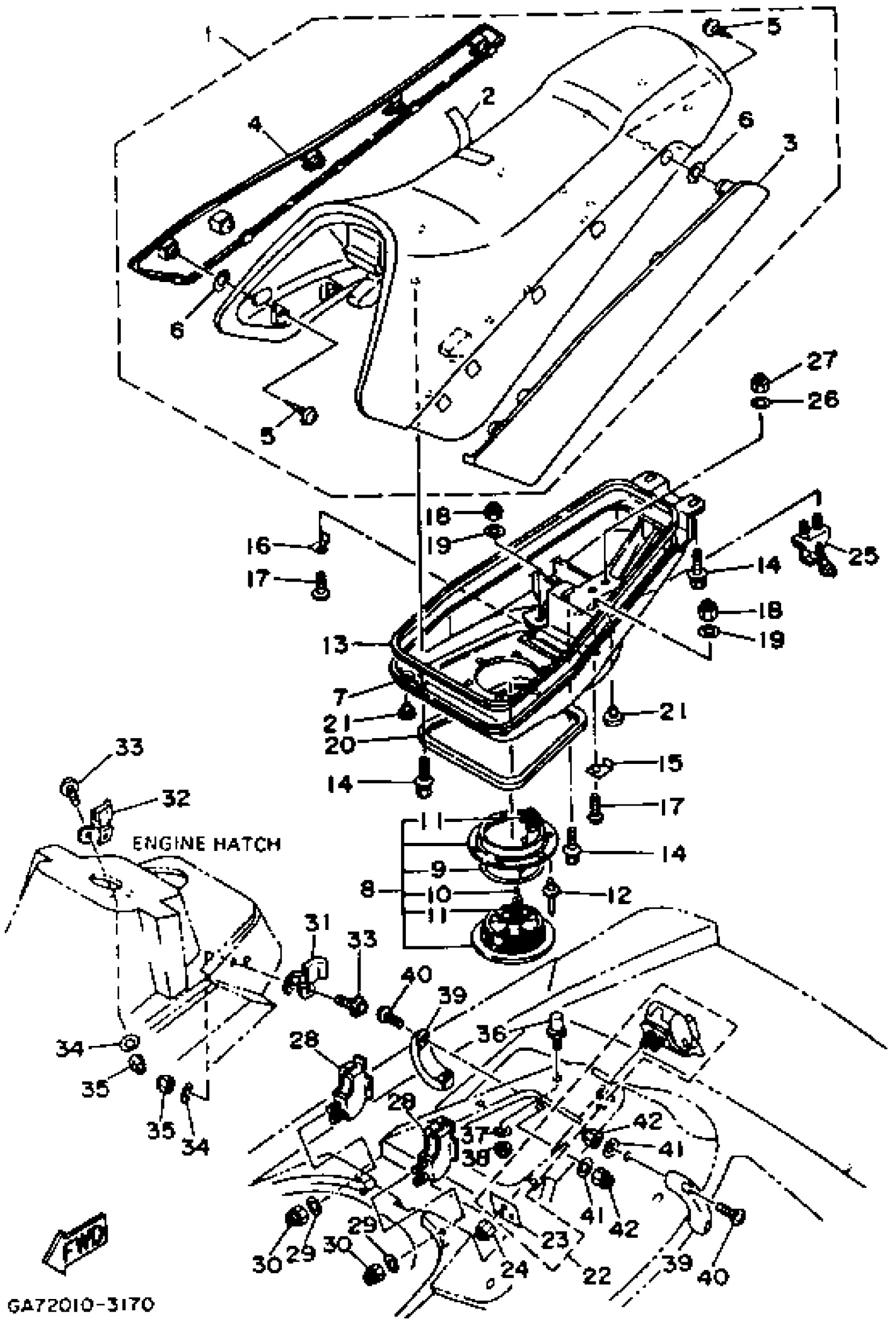

Yamaha WB700R (WAVE BLASTER) 1993 SEAT - UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASY

GA7-6371A-01-00

Unavailable

2

. COVER, SEAT 1

GA7-6371B-00-00

Unavailable

3

. COVER, SIDE 1

GA7-6377B-00-00

Unavailable

4

. COVER, SIDE 2

GA7-6377C-00-00

Unavailable

5

. SCREW, WITH WASHER

97990-05016-00

Unavailable

6

. SEAL 2

GA7-6371L-00-00

Unavailable

7

BASE, SEAT 1

GA7-63742-00-P0

Unavailable

8

INSPECTION CVR ASY

GA7-62720-01-00

Unavailable

9

. RING

93211-03902-00

Unavailable

10

. CHAIN BALL

EU0-67835-30-00

Unavailable

11

COUPLING

EU0-67839-00-00

Unavailable

12

RIVET, BLIND

90267-40937-00

Unavailable

13

PACKING 5

GA7-6266D-00-00

Unavailable

14

BOLT,WITH WASHER

90119-06940-00

Unavailable

15

PLATE, SEAT STOPPER 1

GA7-6377K-00-00

Unavailable

16

PLATE, SEAT STOPPER 2

GA7-6377L-00-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

NUT, FLANGE

95720-05300-00

Unavailable

19

. WASHER, PLAIN

92990-05200-00

Unavailable

20

PACKING 4

GA7-6266C-00-00

Unavailable

21

PAD, SEAT

22W-24741-00-00

Unavailable

22

HATCH LOCK ASSY

FJ0-62840-02-00

Unavailable

23

. PLATE, HATCH LOCK

FJ0-6284F-00-00

Unavailable

24

NUT, FLANGE

95720-05300-00

Unavailable

25

HOOK

GA7-6371G-00-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

NUT, SELF-LOCKING

95720-06300-00

Unavailable

28

STAY, SEAT 1

GA7-6378C-00-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

Unavailable

31

STAY, SEAT 4

GA7-6378F-00-00

Unavailable

32

STAY, SEAT 5

GA7-6378G-00-00

Unavailable

33

SCREW, WITH WASHER

90159-06902-00

Unavailable

34

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

35

NUT, SELF-LOCKING

95720-06300-00

Unavailable

36

PIN, STOPPER

GA7-6131B-00-00

Unavailable

37

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

38

NUT, NYLON (FN8)

95720-10300-00

Unavailable

39

GRIP, HAND

GA7-6271B-00-00

Unavailable

40

SCREW

90149-06973-00

Unavailable

41

WASHER, PLATE

90201-06020-00

Unavailable

42

NUT, SELF-LOCKING

95720-06300-00

Unavailable
