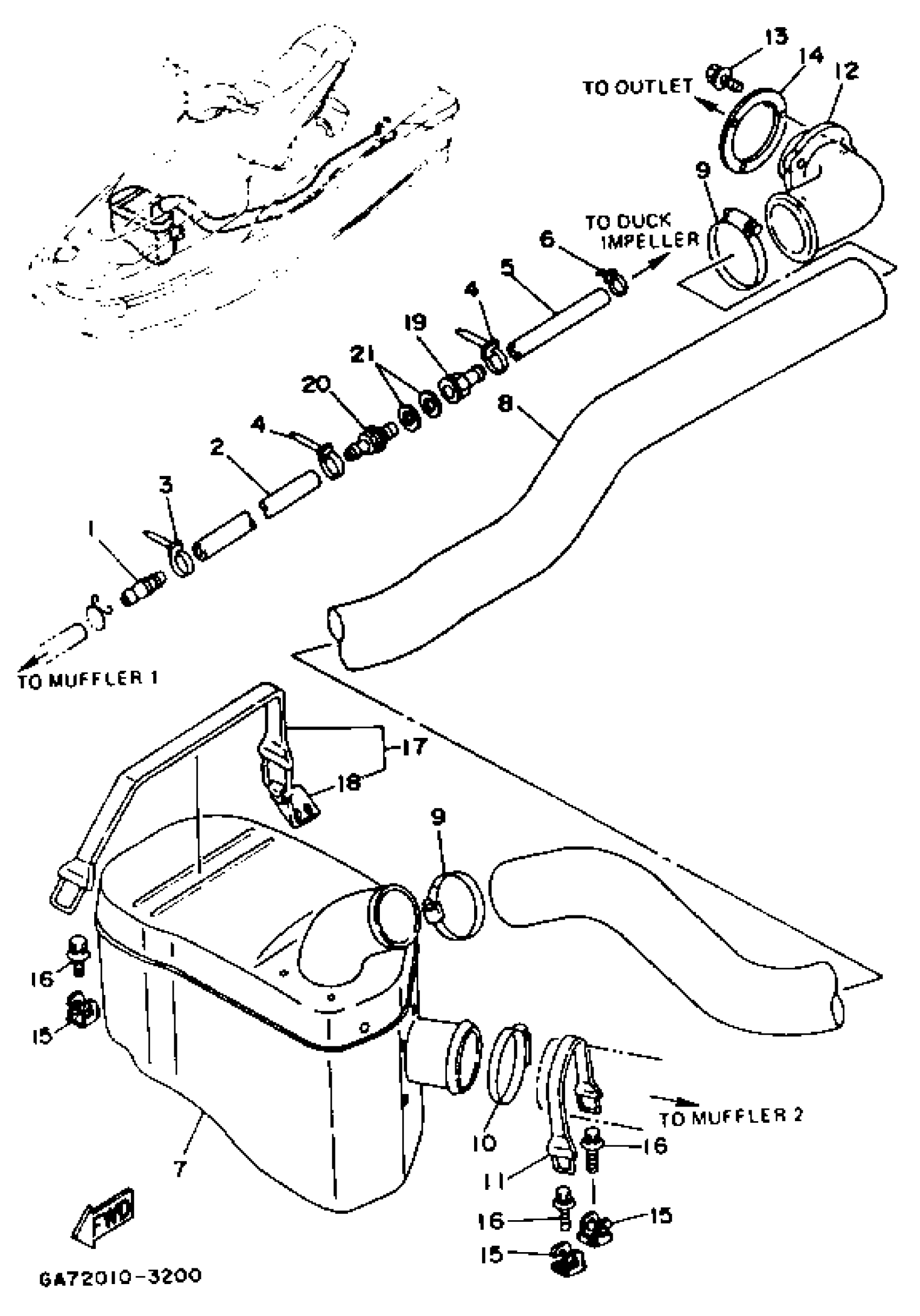

Yamaha WB700R (WAVE BLASTER) 1993 EXHAUST 2 Diagram
#
Description
Price
1
CONNECTION
6M6-51142-00-00
Unavailable
2
HOSE
90445-14M03-00
Unavailable
3
CLAMP
90465-10098-00
Unavailable
4
CLAMP
90465-10098-00
Unavailable
5
HOSE
90445-14M17-00
Unavailable
6
CLAMP
90465-10098-00
Unavailable
7
WATER LOCK COMP
GA7-67550-02-00
Unavailable
8
HOSE
GA7-67555-00-00
Unavailable
10
BAND,HOSE 75(GR7)
90601-17586-00
Unavailable
11
BAND, WATER LOCK
GA7-6756E-00-00
Unavailable
12
THRU-HULL
FN8-67565-01-00
Unavailable
13
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
14
PACKING
GA7-67525-00-00
Unavailable
15
HOOK A
EU0-65772-30-00
Unavailable
16
BOLT, WITH WASHER
90119-06913-00
Unavailable
17
HOOK C
GA7-67570-00-00
Unavailable
18
BAND, FUEL TANK
EW2-67821-00-00
Unavailable
19
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
20
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
21
GASKET
90430-13909-00
Unavailable
