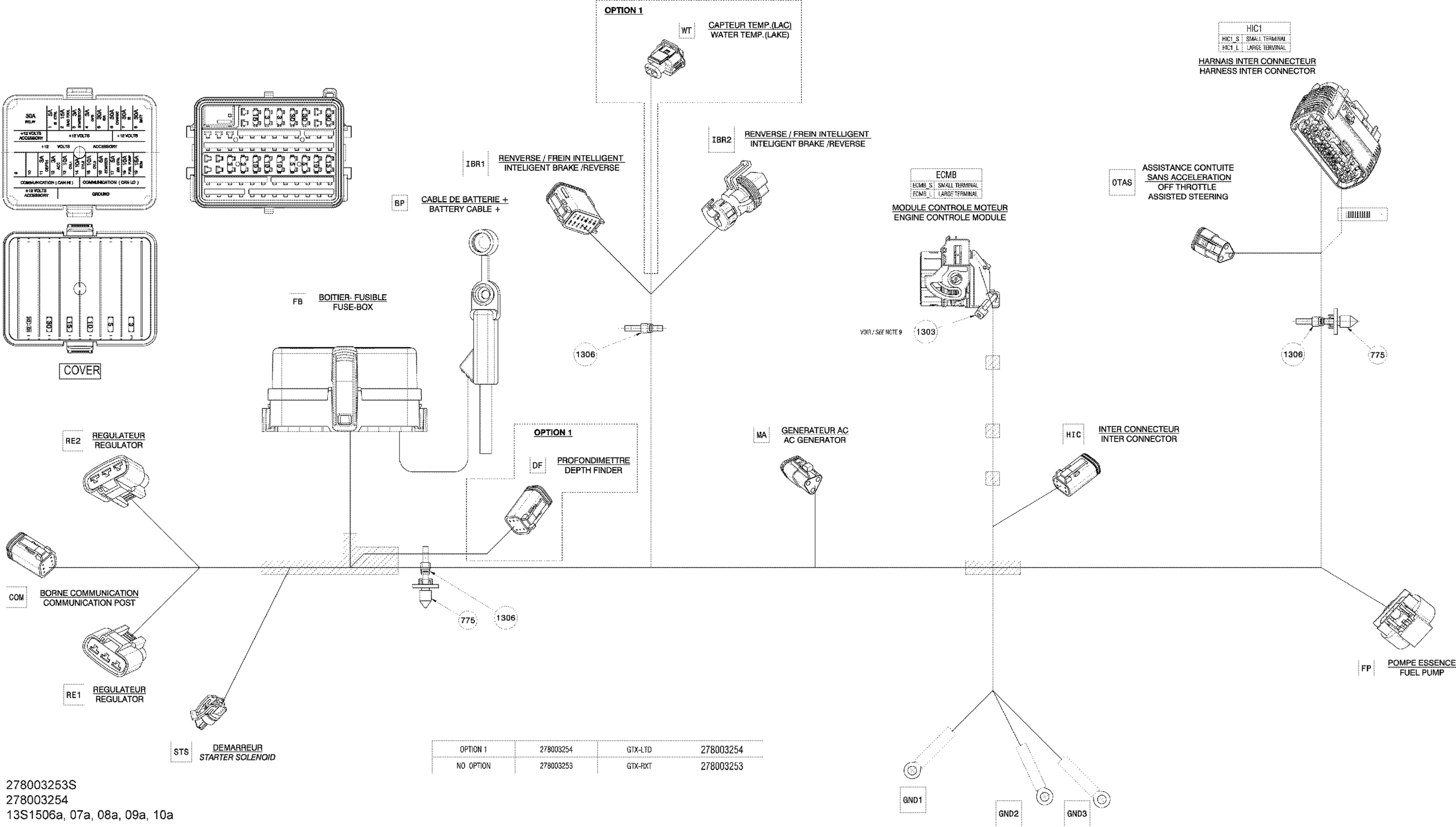

Sea-doo WAKE PRO 215, 2015 Electrical Harness _13S1509a Diagram

#

Description
Price

1

Main Harness (Fixed)

278003253

$1.00

775

Not Available As Spare Part - Friction Washer

Unavailable

1306

Not Available As Spare Part - Friction Washer

Unavailable

BP

Battery Cable

278002815

$45.49

COM

Female Terminal

278000632

$2.09

COM

Female Terminal

278001665

$4.55

COM

Housing, 6 Circuits

278002896

$14.99

COM

Sealing Cap

293000052

$3.19

COM

Male Wedge, 6 Circuits

515175678

$5.39

COVER

Little Fuse, 5 Amperes

710000742

$8.79

COVER

Little Fuse, 10 Amperes

710000744

$8.79

COVER

Little Fuse, 15 Ampere

710000745

$8.49

COVER

Little Fuse, 30 Amperes

710000747

$8.49

COVER

Little Fuse, 3 AMP

710001008

$3.79

ECMB_L

Female Terminal

710001590

$2.09

ECMB_L

Plug

710001593

$2.21

ECMB_L

Female Terminal

710001727

$3.19

ECMB_S

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB_S

Female Terminal

710001589

$2.21

ECMB_S

Cover, 48 positions

710001591

$12.18

ECMB_S

Plug

710001592

$2.21

DF

Not Available As Spare Parts

XXX

Unavailable

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Female Terminal

278002578

$1.04

FB

Bus Bar

278002165

$8.79

FB

Relay 30 Amp

278003828

$13.99

FB

Fuse Cover This part replaces 278002529.

278002823

$14.83

FB

Seal Plug

278002880

$7.86

FB

Fuse Base Ass'y This part replaces 278002878.

278002946

$33.99

FB

Wire Seal

710000048

$7.69

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel Terminal

278001392

$4.79

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel Terminal

278001392

$4.79

HIC

Female Terminal

278000632

$2.09

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HIC1_L

Female Terminal

278002455

$3.79

HIC1_L

Seal Plug

278002477

$6.56

HIC1_S

HOUSING - Call your local BRP dealership

278002451

Unavailable

HIC1_S

Female Terminal | Not Shown

278002453

$5.79

HIC1_S

Seal Plug

278002457

$11.99

HIC1_S

Female Terminal | Not Shown

278002642

$3.79

IBR1

Female Terminal

278001665

$4.55

IBR1

Female Terminal Housing, 12 Circuits

278002377

$49.99

IBR1

Sealing Cap

293000052

$3.19

IBR1

Female Lock, 12 Circuits

409015700

$4.55

IBR2

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

IBR2

LOCK - Call your local BRP dealership

278002459

Unavailable

IBR2

PLUG - Call your local BRP dealership

710001158

Unavailable

IBR2

Wire Seal

710001159

$6.35

IBR2

Female Terminal

710001160

$6.35

MA

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

MA

Female Lock, 3 Circuits

515175676

$5.39

OTAS

Female Terminal

278001665

$4.55

OTAS

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

OTAS

Female Lock

409207200

$4.39

RE1

Female Terminal

710000877

$9.12

RE1

Housing, 3 Circuits

710000880

$21.99

RE1

Seal

710000881

$17.99

RE2

Female Terminal

710000877

$9.12

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Seal

710000881

$17.99

RE2

Cap

710000882

$11.49

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89

WT

Not Available As Spare Parts

XXX

Unavailable
