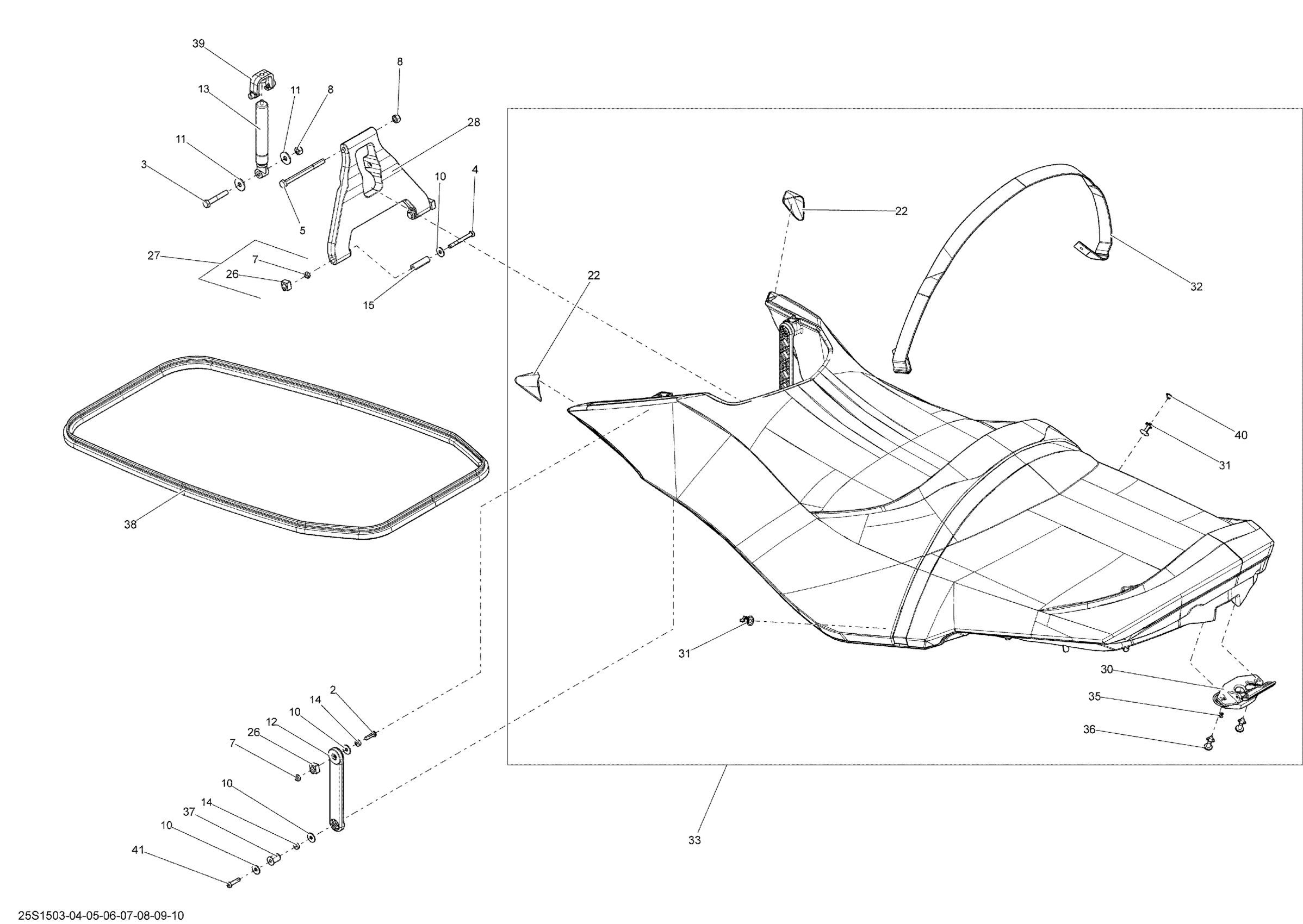

Sea-doo WAKE PRO 215, 2015 Seat _25S1509 Diagram

#

Description
Price

2

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$7.41

5

Hex. Screw M8 X 150

231085060

$6.77

7

Elastic Stop Nut M6, Brass

232561200

$4.23

8

Hex. Elastic Nut M8 Brass

232581200

$2.22

10

Flat Washer M6, Stainless

234062600

$0.77

11

Not Available As Spare Parts

XXX

Unavailable

12

Lateral Arm

296000372

$18.49

13

Shock

269001684

$65.99

14

Spacer

269001588

$12.49

15

Spacer

269001589

$18.49

22

LH Seat Protector

269002184

$8.19

22

RH SEAT PROTECTOR - Call your local BRP dealership

269002185

Unavailable

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

27

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

28

Center Arm

269501699

$24.99

30

Latch Ass'y

269700116

$36.99

31

Rivet | Model-T3

293150067

$2.89

32

SEAT STRAP - Call your local BRP dealership

269002795

Unavailable

33

Seat Ass'y

269002772

$539.99

35

Pop Rivet 1/8

293150143

$0.48

36

Rivet 1/4"

293150151

$8.04

37

Expansion Nut M6 X 1

250100150

$2.11

38

Was 293200062 Seal

219704366

$76.49

39

End Fitting

269002077

$16.85

40

Grommet

293720067

$12.99

41

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11
