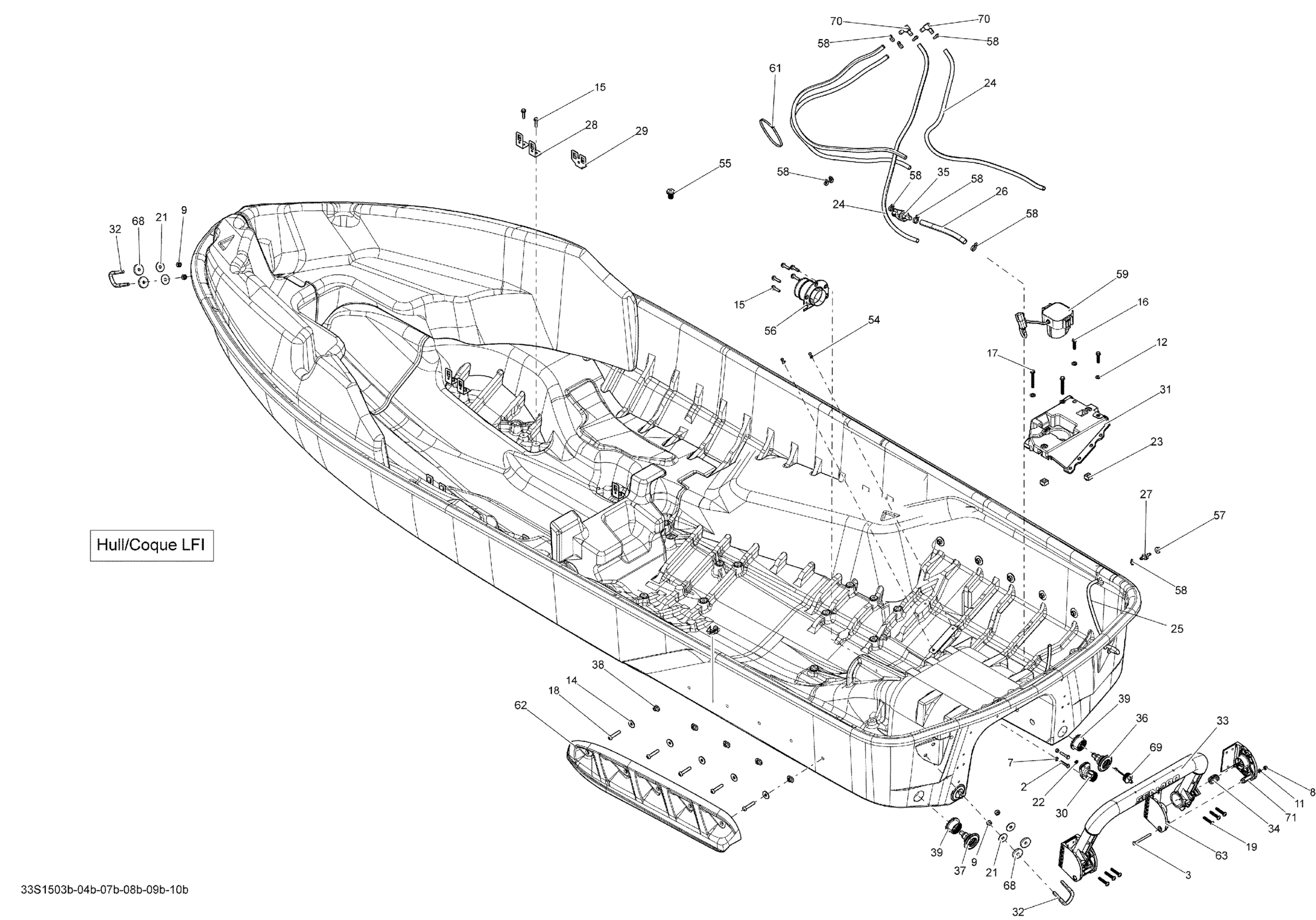

Sea-doo WAKE PRO 215, 2015 09- Hull LFI_33S1509b Diagram

#

Description
Price

2

Hex. Screw M6 X 30

207063060

$1.89

3

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

7

Elastic Stop Nut M6, Brass

232561200

$4.23

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Hex. Elastic Nut M8 Brass

232581200

$2.22

11

Stainless Flat Washer M6

234061600

$0.33

12

Flat Washer M8, Stainless

234080600

$1.48

14

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

16

Hex. Flange Screw M6.81 X 30

243163060

$2.32

17

Hex. Flange Screw M6.81 X 55

243165560

$3.91

18

Torx Screw M8 X 40, Stainless

250000452

$3.91

19

Torx Screw

250000468

$4.61

21

Flat Washer 8 mm, Stainless

250200175

$3.06

22

Sealing Washer

250200114

$4.44

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Was 275500008 Hose 12 mm

219704356

$20.49

27

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

28

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

29

Double Strap Clip 90°

275500798

$8.94

30

Cable Adaptor Ass'y

277001881

$19.99

31

Battery Base Ass'y

278002343

$65.99

32

U-Clamp

292000933

$59.49

33

Overmolded Bar

292001204

$159.99

34

Spring

292001259

$27.99

35

Bailer Ass'y

292001310

$23.99

36

Drain Neck Ass'y

292001315

$27.99

37

Drain Neck Ass'y

292001317

$27.99

38

Spacer Sponson

292001349

$10.99

39

Bushing

292001371

$17.49

54

Avdel Rivet 3/16"

293150037

$0.56

55

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

56

HULL INSERT - Call your local BRP dealership

293450306

Unavailable

57

Grommet

293720029

$1.59

58

Tie Wrap 94 mm | 4X4

293750001

$1.03

59

Not Available As Spare Parts

XXX

Unavailable

61

Tie Wrap 368 mm

293750008

$1.04

62

RH Sponson

292001878

$93.99

62

LH Sponson

292001877

$93.99

63

A Section Support

292001509

$59.99

68

Rubber Washer

293830037

$2.68

69

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

70

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

71

B Section Support

292001510

$59.99
