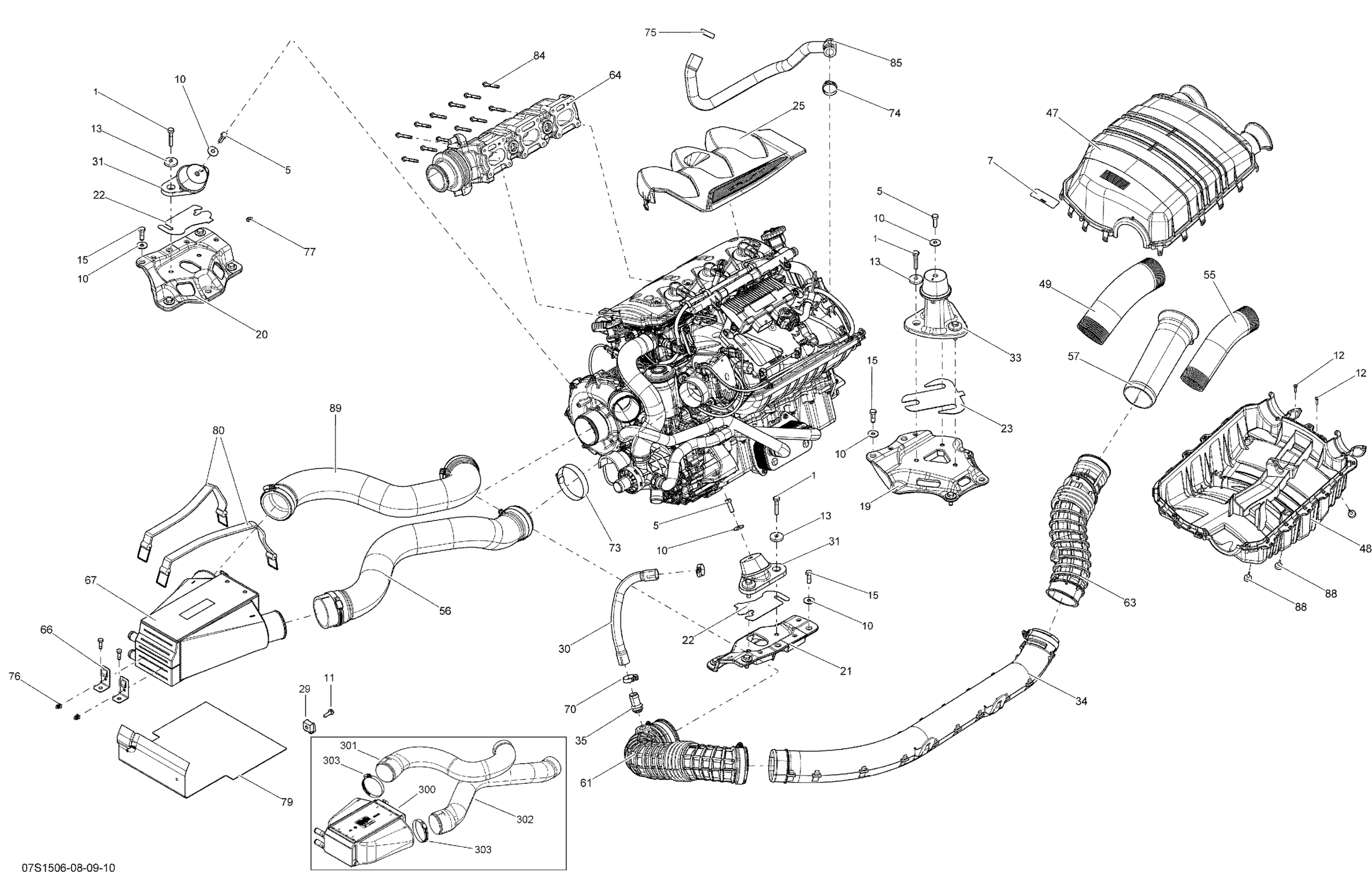

Sea-doo WAKE PRO 215, 2015 Engine _07S1509 Diagram

#

Description
Price

1

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

1

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

5

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

7

Air Silencer Notice Decal

219903177

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Hex. Flange Screw M6.81 x 20

243162060

$3.72

12

Flange Torx Screw K40 X 16

250000287

$2.11

13

Cone Washer

250200018

$5.61

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

19

SPACER - Call your local BRP dealership

270000767

Unavailable

20

SPACER - Call your local BRP dealership

270000763

Unavailable

21

Spacer

270000766

$78.49

22

Shim 1.3 mm

270000762

$12.99

23

Shim 1.3 mm

270000770

$16.49

25

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

29

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

29

Strap Anchor

270000854

$7.76

30

Formed Hose

270000950

$10.99

31

Engine Support Ass'y

270001081

$109.99

33

Rubber Mount

270000886

$129.99

34

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

35

Breather Valve

273000234

$14.49

47

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

48

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

49

Air Silencer Hose

273000290

$22.49

50

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

52

HOSE CONNECTOR - Call your local BRP dealership | Engine 1503 NA 4-TEC

273000295

Unavailable

53

Airbox Cover

273000371

$73.99

54

Airbox Base

273000354

$57.99

55

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Intake Hose

273000359

$48.99

61

Hose Intake, Rear | Model GTR

273000328

$54.99

63

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

64

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

65

Retainer

275500664

$14.75

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

70

Tridon Gear Clamp

293650051

$4.19

73

Tridon Clamp

293650179

$11.49

74

Crimp Clamp

293650217

$8.47

75

Tridon Gear Clamp

293650051

$4.19

76

Not Available As Spare Parts

XXX

Unavailable

77

Tie Wrap 142 mm

293750002

$1.25

79

Not Available As Spare Parts

XXX

Unavailable

80

Not Available As Spare Parts

XXX

Unavailable

84

Torx Flange Screw M6 X 45

420641198

$4.12

85

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

88

Rubber Stopper

708000759

$4.19

89

Not Available As Spare Parts

XXX

Unavailable
