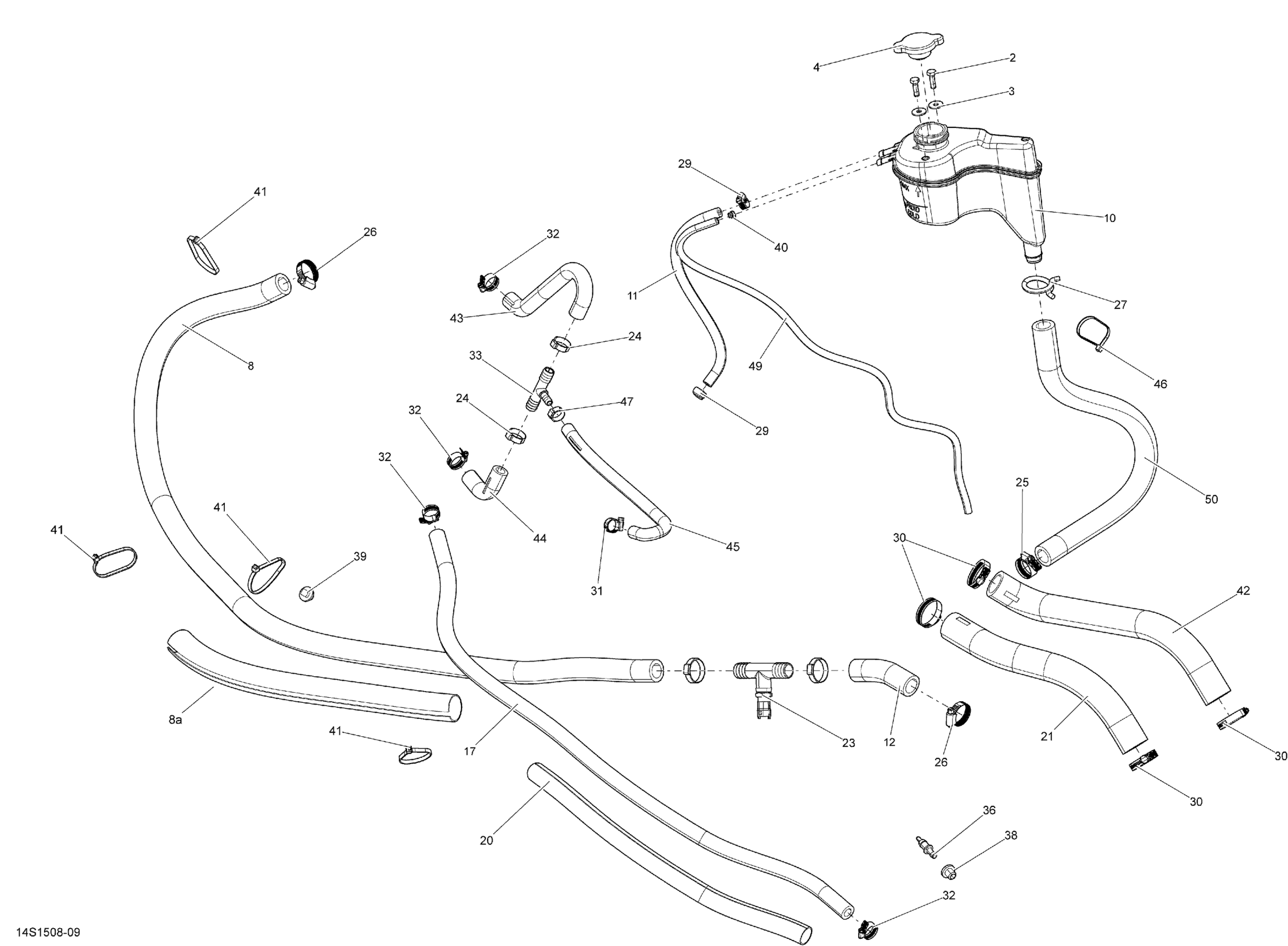

Sea-doo WAKE PRO 215, 2015 Cooling System _14S1509 Diagram

#

Description
Price

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

Flat Washer M6, Stainless

234062600

$0.77

4

Pressure Cap | Includes 720 to 720a

276000100

$25.99

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

8a

Tubing 25 MM 1000MM Long

219704402

$15.99

10

Coolant Tank

276000265

$134.99

11

Was 275500549 Hose 1/4"

219704357

$194.99

12

Not Available As Spare Parts

XXX

Unavailable

17

Was 276000001 Hose 12.5 mm

219704394

$51.99

20

Was 515175319 Tubing 22 mm

219704423

$14.99

21

Radiator Hose

276000241

$32.99

23

Not Available As Spare Parts

XXX

Unavailable

24

Oetiker Clamp

293650012

$7.49

25

Tridon Gear Clamp

293650019

$5.82

26

Tridon Gear Clamp

293650051

$4.19

27

Spring Clamp

293650115

$3.09

28

Tridon Gear Clamp

293650051

$4.19

29

Tridon Gear Clamp

293650170

$1.99

30

Tridon Gear Clamp

293650185

$13.99

31

Tridon Gear Clamp

293650171

$3.09

32

Tridon Gear Clamp

293650172

$3.09

33

T-Fitting

293710116

$17.62

36

Straight Fitting

293710133

$14.75

38

Grommet

293720029

$1.59

39

Mount Dart

293730040

$1.04

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 368 mm

293750008

$1.04

42

Radiator Hose This part replaces 276000240.

276000491

$49.99

43

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

44

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

45

Formed Hose | Without Catalyst

276000246

$19.49

46

Tie-Rap 180 mm

414115200

$0.11

47

Oetiker Clamp | Europe

293650030

$5.19

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Hose 19.0Mm. 2000Mm Long

219704361

$48.99
