- WAKE PRO 215, 2011
09- Body, Rear View 1

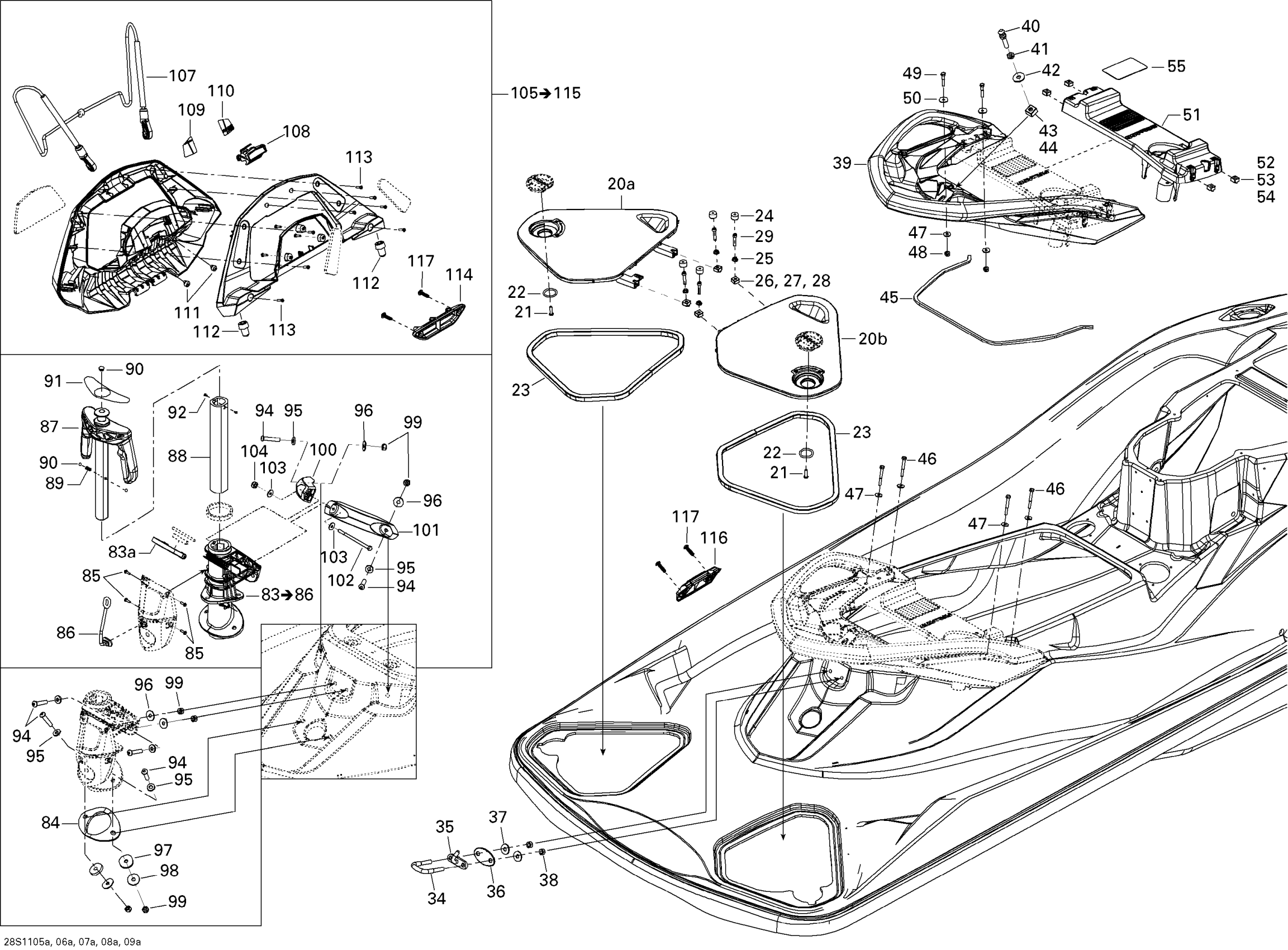

Sea-doo WAKE PRO 215, 2011 09- Body, Rear View 1 Diagram
#
20a
LH Access Cover
291003686
$169.99
20b
RH ACCESS COVER - Call your local BRP dealership
291003687
$169.99
21
Hex. Screw 10-14 X 7/8”
211000023
$3.59
22
O-Ring
293300121
$8.32
23
Was 293200133 Neoprene Seal
219704367
$27.99
24
Rubber Bumper
291003688
$14.49
25
Hex. Flange Nut M6
233161600
$1.15
26
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
27
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
28
Elastic Stop Nut M6, Brass
232561200
$4.23
29
Socket Head Screw M6 X 30
205063060
$2.75
34
Not Available As Spare Parts
XXX
Unavailable
35
Not Available As Spare Parts
XXX
Unavailable
36
Not Available As Spare Parts
XXX
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Black Rear Handle
291004622
$94.49
40
Seat Stud
291003878
$48.99
41
Hex. Jam Nut M10
232100600
$2.22
42
Flat Washer 10 mm, Stainless
234002600
$2.22
43
Elastic Nut M10 Housing
271001732
$9.11
44
Elastic Stop Nut M10, Brass
232501200
$2.64
45
Gasket 3000Mm Long
219704378
$26.49
46
Hex. Screw M6 X 50
207065060
$2.22
47
Flat Washer M6, Stainless
234062600
$0.77
48
Elastic Stop Nut M6, Brass
232561200
$4.23
49
Hex. Screw M6 X 35
207063560
$2.22
50
Flat Washer M6.6 X 22
250200022
$2.72
51
LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c
291002947
Unavailable
52
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
53
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
54
Elastic Stop Nut M6, Brass
232561200
$4.23
55
CAUTION ENGINE OIL - Call your local BRP dealership
219903184
Unavailable
83
Support Sub-Ass'y | Includes 1900 TO 1900d
291002553
$294.99
83a
Replacing Kit for Pylon Strap
295100740
$26.49
84
Seal
293250151
$10.99
85
Hex. Flange Screw K40 X 13
241141360
$0.67
86
Strap
269501299
$19.49
87
Molded Handle
291004766
$195.99
88
ALUMINUM POST - Call your local BRP dealership
291002642
Unavailable
89
Ball Spring
269501651
$11.99
90
Ball 1/4"
293350062
$2.69
91
Warning Label
219903137
Unavailable
92
Type "U" Metallic Drive Screw
293150167
$2.29
94
Socket Head Screw M8 X 40
205484060
$4.12
95
Flat Washer M8.5 x 18
293050001
$3.07
96
Flat Washer 8 mm, Stainless
234082600
$2.43
97
Rubber Washer
293830037
$2.68
98
Flat Washer 8 mm, Stainless
250200175
$3.06
99
Hex. Elastic Nut M8 Brass
232581200
$2.22
100
Lateral Arm LH
291002711
$33.99
101
Lateral Arm RH
291002712
$33.99
102
Hex. Screw M6 X 100
230060060
$7.41
103
Flat Washer M6, Stainless
234062600
$0.77
104
Elastic Stop Nut M6, Brass
232561200
$4.23
105
Wakeboard Rack
295100453
$239.49
107
Elastic Rope Ass'y
291002979
$37.99
108
Latch
291002980
$28.99
109
Warning WAKE
219903228
Unavailable
110
WAKE-PRO Decal
219903240
$30.99
111
Rubber Bumper
293830005
$8.09
112
Rubber Buffer
293830119
$18.49
113
Flange Torx Screw K40 X 16
250000287
$2.11
114
Lower Anchorage
291002864
$16.49
116
Upper Anchorage
291003582
$16.49
117
Torx Screw Plastite M6
250000466
$6.98
