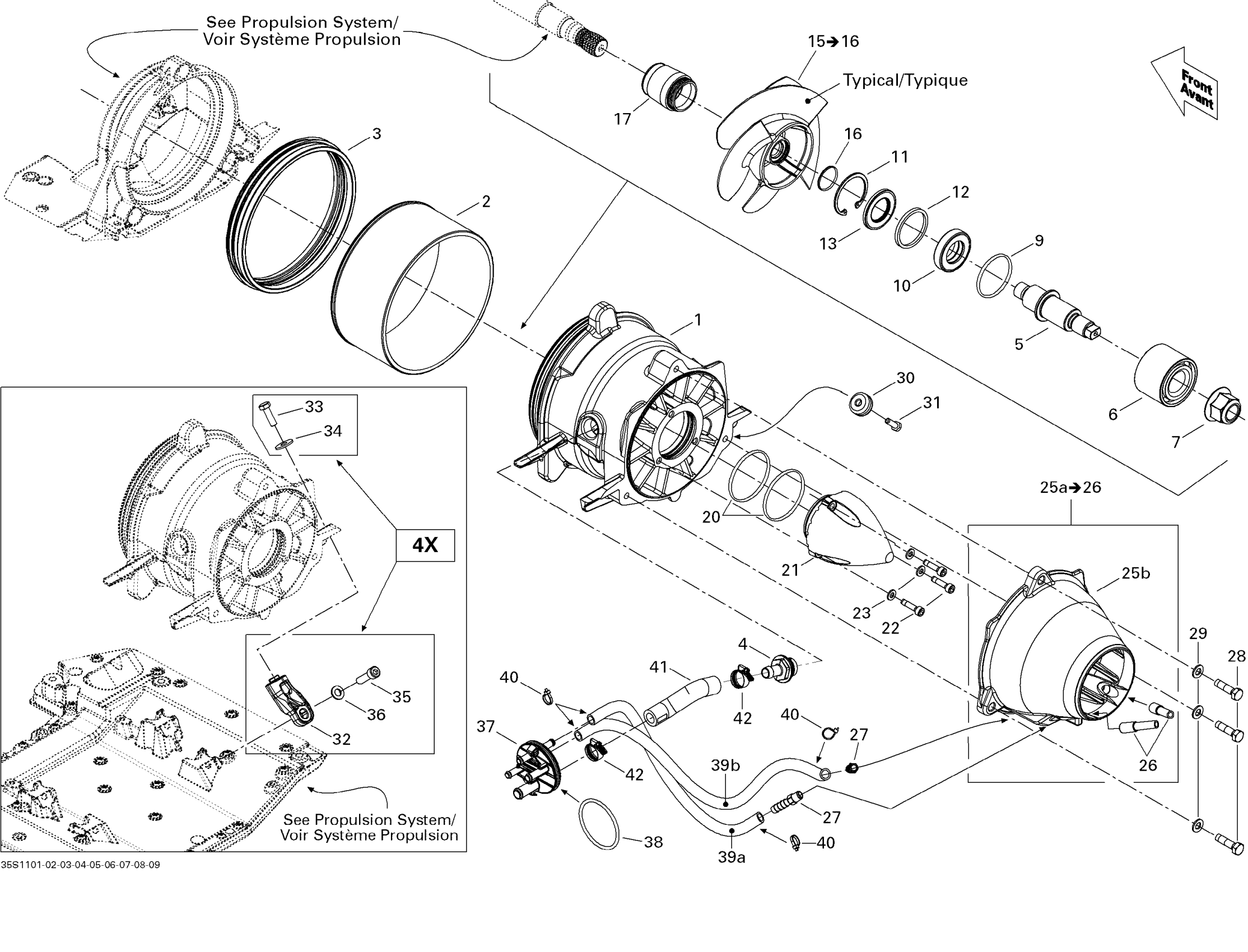

Sea-doo WAKE PRO 215, 2011 Pump Diagram

#

Description
Price

1

IMPELLER HOUSING - Call your local BRP dealership

267000380

Unavailable

2

Wear Ring

267000372

$84.99

3

Neoprene Seal

293200122

$18.77

4

FITTING - Call your local BRP dealership

267000387

Unavailable

5

Impeller Shaft

267000388

$116.49

6

Angled Bearing This part replaces 267000030.

267000900

$80.99

7

Elastic Flange Nut M20

250100104

$12.66

9

O-Ring

293300090

$7.20

10

Seal

271002071

$33.99

11

Circlip

293370038

$8.79

12

Spacer

271001393

$8.59

13

Oil Seal

293200089

$19.99

15

Impeller Ass'y | Engine 215

267000756

$391.99

16

O-Ring

293300114

$15.89

17

Guard

271002228

$12.99

20

O-Ring

293300086

$3.59

21

Impeller Cover

267000428

$18.49

22

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

23

Stainless Flat Washer M6

234061600

$0.33

25a

VENTURI ASS'Y - Call your local BRP dealership | Includes 25a to 26

267000502

Unavailable

25b

VENTURI, BLACK - Call your local BRP dealership

267000488

Unavailable

26

Siphon Tube

271001133

$10.99

27

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

28

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Anode Zinc

271001813

$18.99

31

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

32

ADAPTOR - Call your local BRP dealership

267000482

Unavailable

33

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Fitting Plate

267000494

$12.49

38

O-Ring

267000477

$6.67

39a

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

39b

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Formed Hose This part replaces 267000606.

267001040

$18.32

42

Tridon Gear Clamp

293650172

$3.09
