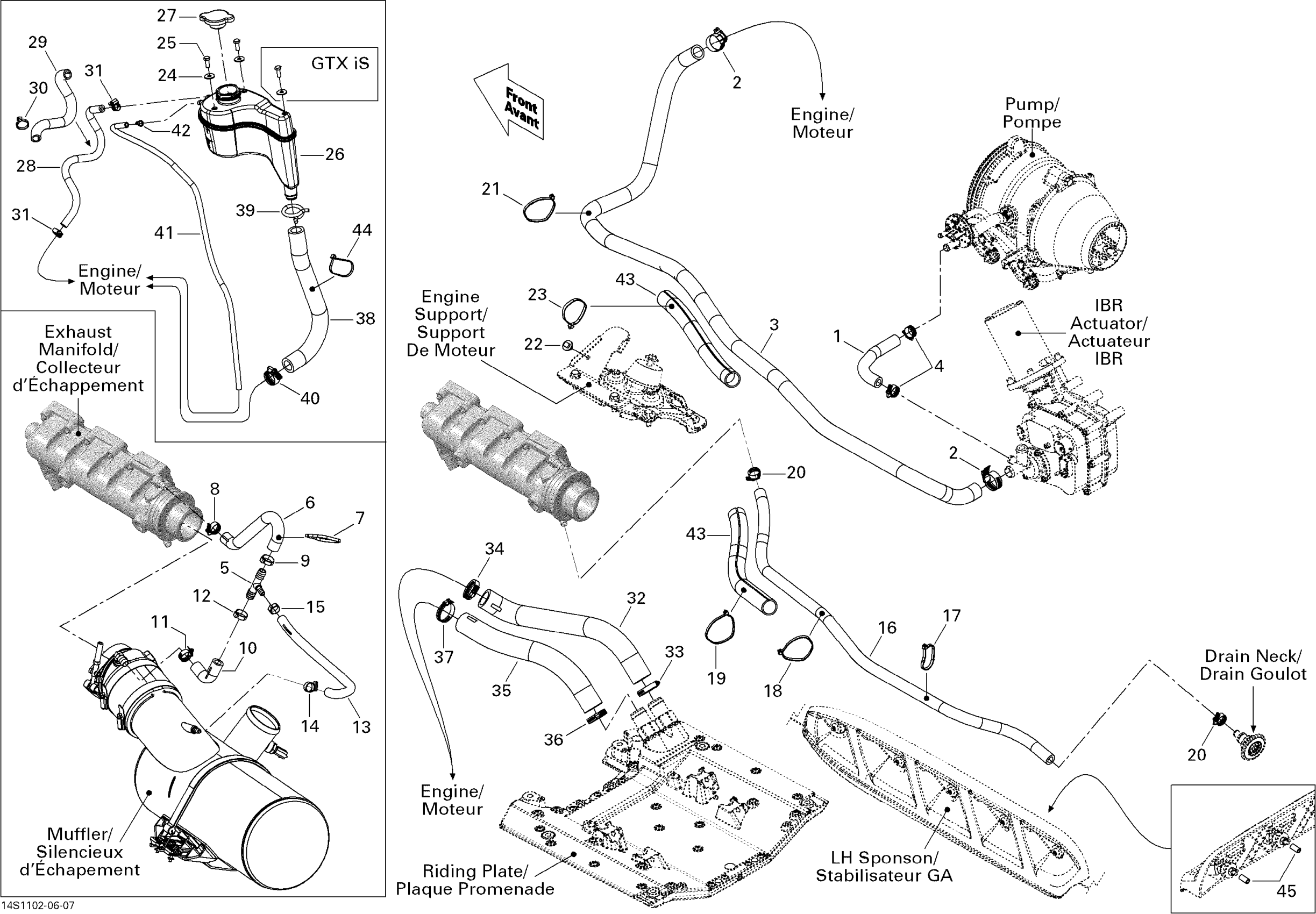

Sea-doo WAKE PRO 215, 2011 Cooling System Diagram

#

Description
Price

1

FORMED HOSE - Call your local BRP dealership

276000237

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

4

Tridon Gear Clamp

293650172

$3.09

5

T-Fitting

293710116

$17.62

6

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

7

Not Available As Spare Parts

XXX

Unavailable

8

Tridon Gear Clamp

293650172

$3.09

9

Oetiker Clamp

293650012

$7.49

10

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

11

Tridon Gear Clamp

293650172

$3.09

12

Oetiker Clamp

293650012

$7.49

13

Formed Hose | Without Catalyst

276000246

$19.49

14

Tridon Gear Clamp

293650171

$3.09

15

Oetiker Clamp | Europe

293650030

$5.19

16

Was 276000001 Hose 12.5 mm

219704394

$51.99

17

Tie Wrap 368 mm

293750008

$1.04

18

Tie Wrap 368 mm

293750008

$1.04

19

Tie Wrap 368 mm

293750008

$1.04

20

Tridon Gear Clamp

293650172

$3.09

21

Tie Wrap 368 mm

293750008

$1.04

22

Mount Dart

293730040

$1.04

23

Tie Wrap 368 mm

293750008

$1.04

24

Flat Washer M6, Stainless

234062600

$0.77

25

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

26

Coolant Tank

276000265

$134.99

27

Pressure Cap | Includes 720 to 720a

276000100

$25.99

28

Was 275500549 Hose 1/4"

219704357

$194.99

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Tridon Gear Clamp

293650170

$1.99

32

Radiator Hose This part replaces 276000240.

276000491

$49.99

33

Tridon Gear Clamp

293650185

$13.99

34

Tridon Gear Clamp

293650185

$13.99

35

Radiator Hose

276000241

$32.99

36

Tridon Gear Clamp

293650185

$13.99

37

Tridon Gear Clamp

293650185

$13.99

38

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

39

Spring Clamp

293650115

$3.09

40

Tridon Gear Clamp

293650019

$5.82

41

Polyurethane Hose 10000Mm Long

219704410

$56.99

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Tubing 25 MM 1000MM Long

219704402

$15.99

44

Tie-Rap 180 mm

414115200

$0.11

45

Polyurethane Hose 10000Mm Long

219704410

$56.99
