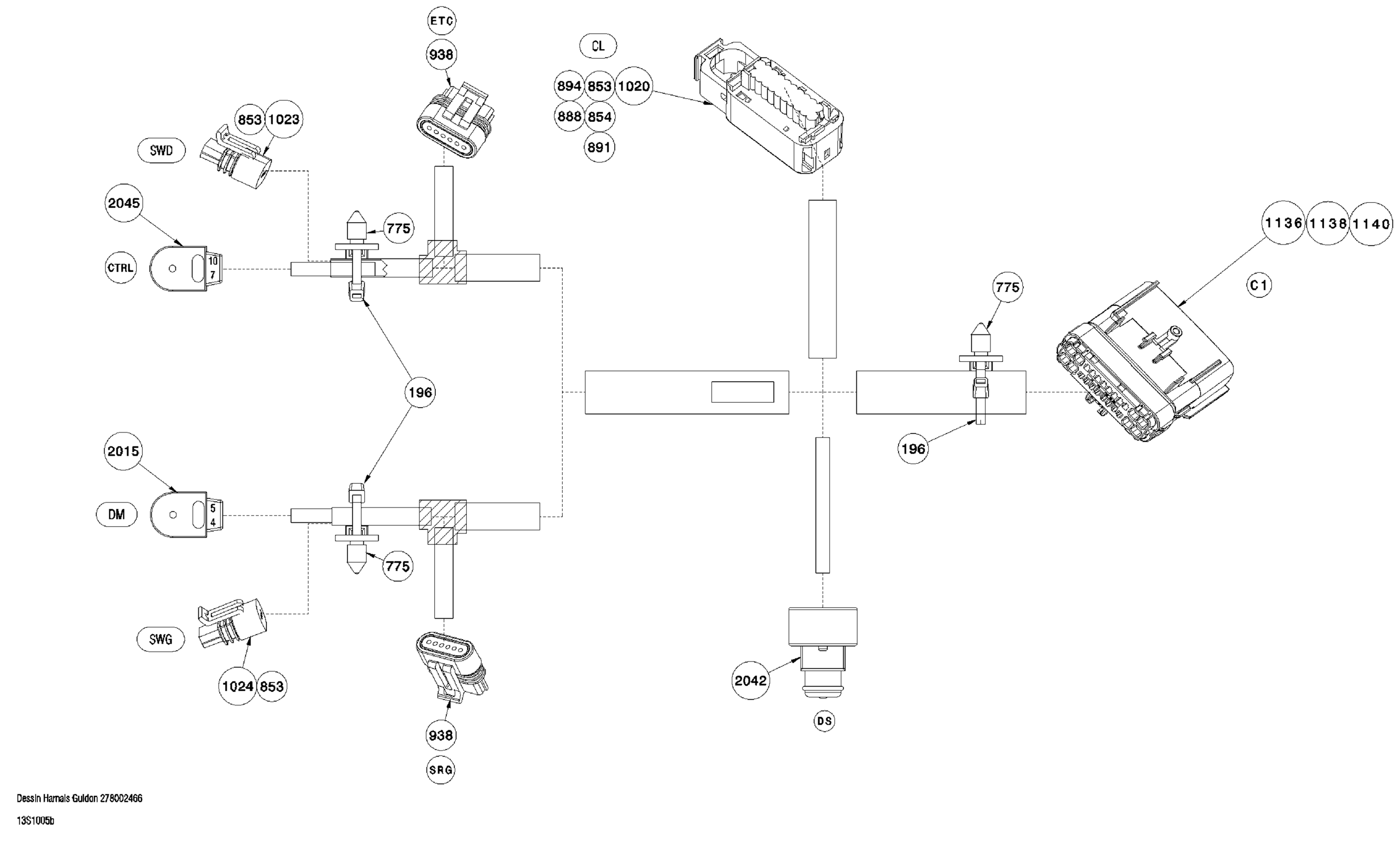

Sea-doo Wake PRO 215, 2010 Electrical Harness 2 Diagram

Description

Price

Steering Handle Harness | Includes 1 to 2055

278002788

$479.99

196

Tie Wrap 142 mm

293750002

$1.25

775

Mount Dart

293730040

$1.04

827

Female Terminal

710001119

$5.39

853

Wire Seal

710001163

$7.69

854

Female Terminal

710001164

$8.89

891

Terminal

710001228

$3.28

894

Cap

710001225

$9.19

920

Seal Wire

710001332

$3.28

938

Female Terminal Housing 6 Circuits

278002299

$9.10

1020

Male Terminal Housing, 20 Circuits

278002385

$17.04

1023

Female Terminal Housing, 3 Circuits

278003442

$8.79

1024

Female Terminal Housing 3 Circuits

278002387

$8.79

1136

HOUSING - Call your local BRP dealership

278002452

Unavailable

1138

Male Terminal

278002454

$5.79

1140

Male Terminal

278002456

$5.79

2015

Start/Stop Switch Kit

295501137

$59.49

2042

Safety Switch This part replaces 278002325.

278002773

$114.99

2045

Start/Stop Switch Kit

295501137

$59.49
