Description

Price

1

Cover Ass'y Kit | RXT X This part replaces 269501706.

295501129

$569.99

2

Black Upper Front Deflector This part replaces 269501663.

269502209

$154.99

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 4 mm, Stainless

234041600

$1.15

5

Spacer

291001203

$13.49

6

Left Latch

269501964

$30.99

7

Right Latch

269501965

$30.99

8

Shock Absorber | Includes 150 to 150d

269501664

$134.99

9a

Shock Absorber End Fitting

269501984

$11.49

9b

Tie Wrap 94 mm | 4X4

293750001

$1.03

10

RH Mirror Ass'y

269501920

$68.99

11

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

12

Black RH Mirror Housing

269502204

$58.99

13

LH Mirror Ass'y

269501918

$68.99

14

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

15

Black LH Mirror Housing

269502203

$58.99

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mirror Spring

269500453

$10.49

18

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

19

Rubber Bumper

293830135

$15.99

20

Black Front Cosmetic | Model GTX 155, GTX LTD 230, GTX LTD 300

269501756

$95.49

21

Rivet | Model-T3

293150067

$2.89

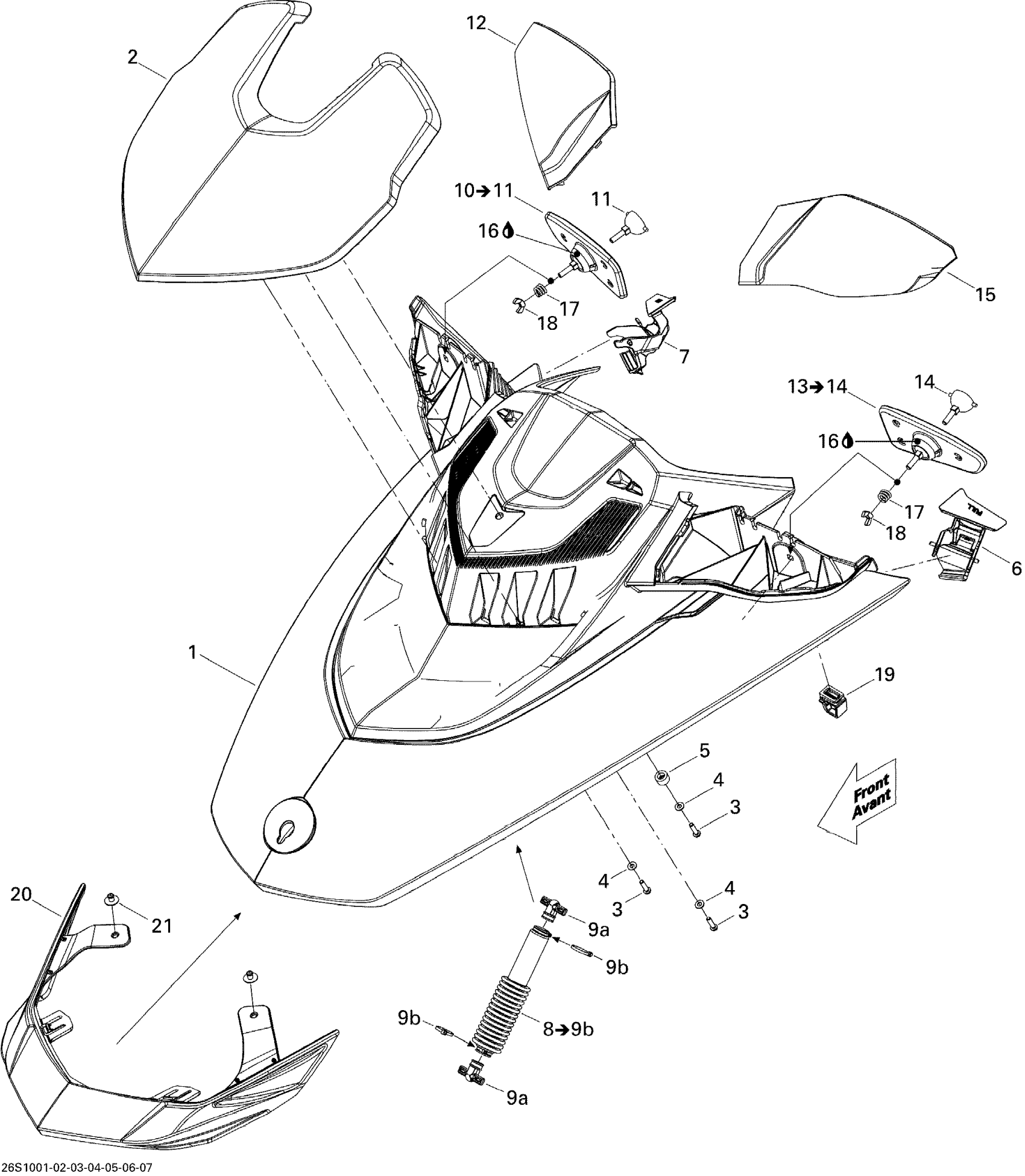

Sea-doo Wake PRO 215, 2010 09- Front Cover Diagram

Cover Ass'y Kit | RXT X This part replaces 269501706.

Black Upper Front Deflector This part replaces 269501663.

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

Spacer

Left Latch

Right Latch

Shock Absorber | Includes 150 to 150d

Shock Absorber End Fitting

Tie Wrap 94 mm | 4X4

RH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

Black RH Mirror Housing

LH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

Black LH Mirror Housing

Synthetic Grease, 400 G

Mirror Spring

WING NUT M6 - Call your local BRP dealership

Rubber Bumper

Black Front Cosmetic | Model GTX 155, GTX LTD 230, GTX LTD 300

Rivet | Model-T3
