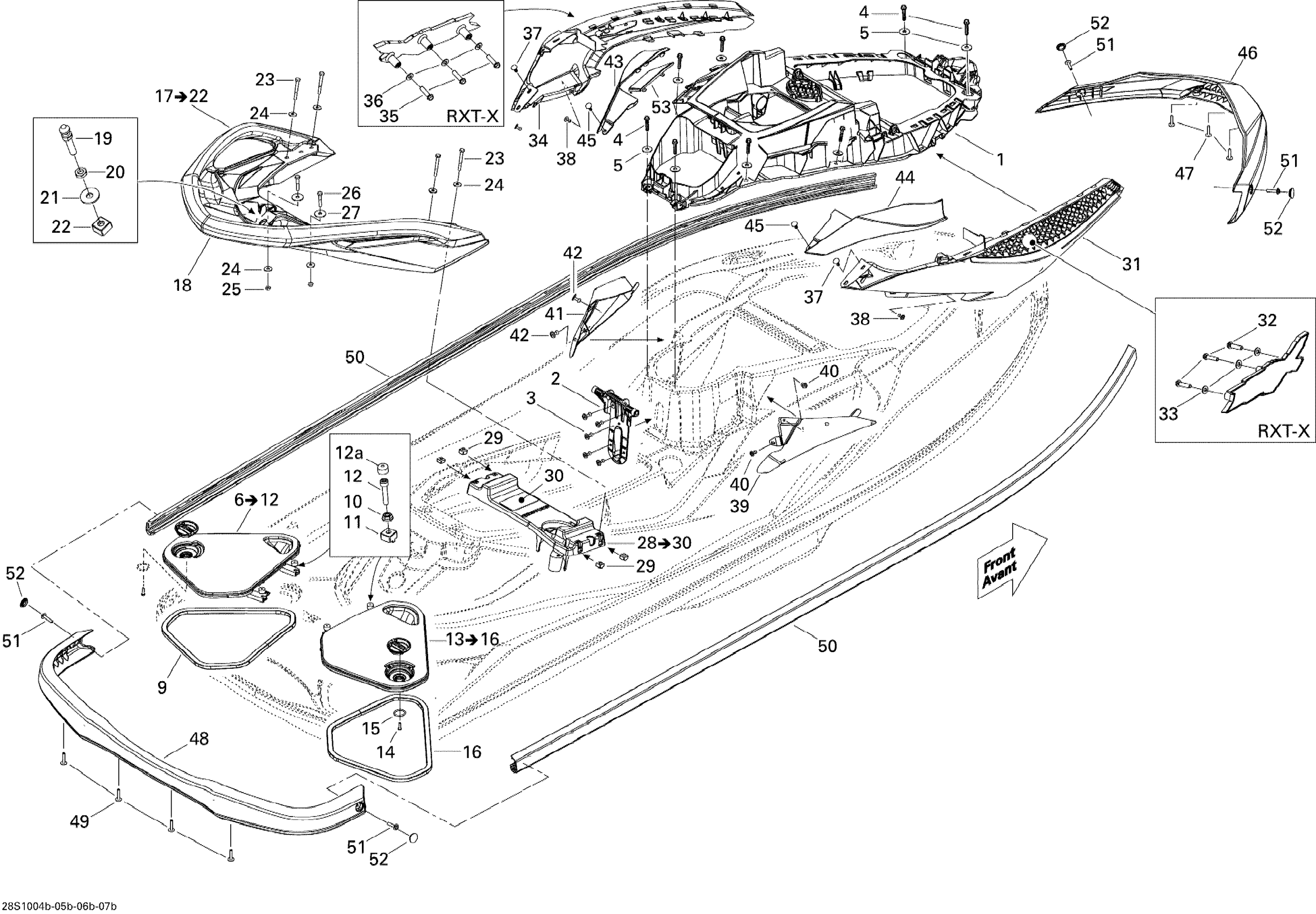

Sea-doo Wake PRO 215, 2010 Body, Rear View 2 Diagram

#

Description
Price

1

Front Module

291004595

$279.99

2

Mounting Case Absorber

269002162

$38.99

3

Pop Rivet 3/16"

293150123

$4.29

4

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

5

Flat Washer 8 mm, Stainless

234082600

$2.43

6

LH Access Cover

291003686

$169.99

9

Was 293200017 Neoprene Seal

219704365

$149.99

10

Hex. Flange Nut M6

233161600

$1.15

11

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

12

Socket Head Screw M6 X 30

205063060

$2.75

12a

Rubber Bumper

291003688

$14.49

13

RH ACCESS COVER - Call your local BRP dealership

291003687

$169.99

14

Hex. Screw 10-14 X 7/8”

211000023

$3.59

15

O-Ring

293300121

$8.32

16

Was 293200017 Neoprene Seal

219704365

$149.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

GRAB HANDLE - Call your local BRP dealership

269001506

Unavailable

19

Seat Stud

291003878

$48.99

20

Hex. Jam Nut M10

232100600

$2.22

21

Flat Washer 10 mm, Stainless

234002600

$2.22

22

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

23

Hex. Screw M6 X 50

207065060

$2.22

24

Flat Washer M6, Stainless

234062600

$0.77

25

Elastic Stop Nut M6, Brass

232561200

$4.23

26

Hex. Screw M6 X 35

207063560

$2.22

27

Flat Washer M6.6 X 22

250200022

$2.72

28

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

29

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

30

CAUTION ENGINE OIL - Call your local BRP dealership

219903184

Unavailable

31

RH FRONT COVER ASS'Y - Call your local BRP dealership | WAKE

291002939

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

LH FRONT COVER ASS'Y - Call your local BRP dealership | WAKE

291002943

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Black, Dart

293730006

$0.99

38

Pop Rivet 3/16"

293150123

$4.29

39

RH Seat Pad, Black | GTX iS LTD

291002596

Unavailable

40

Pop Rivet 3/16"

293150123

$4.29

41

LH SEAT PAD - Call your local BRP dealership | GTX iS LTD This part replaces 291002595.

291003986

Unavailable

42

Pop Rivet 3/16"

293150123

$4.29

43

LH UPPER CAP - Call your local BRP dealership

291002920

Unavailable

44

RH UPPER CAP - Call your local BRP dealership

291002922

Unavailable

45

Black, Dart

293730006

$0.99

46

Front Bumper

291004275

$78.49

47

Hexagonal Cap Screw M6 X35

250000399

$4.44

48

Rear Bumper

291004274

$121.49

49

Hexagonal Cap Screw M6 X35

250000399

$4.44

50

Lateral Bumper

291003872

$148.49

51

Hexagonal Cap Screw M6 X35

250000399

$4.44

52

Bumber Cap | Except Cab Package

291002744

$14.49

53

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable
