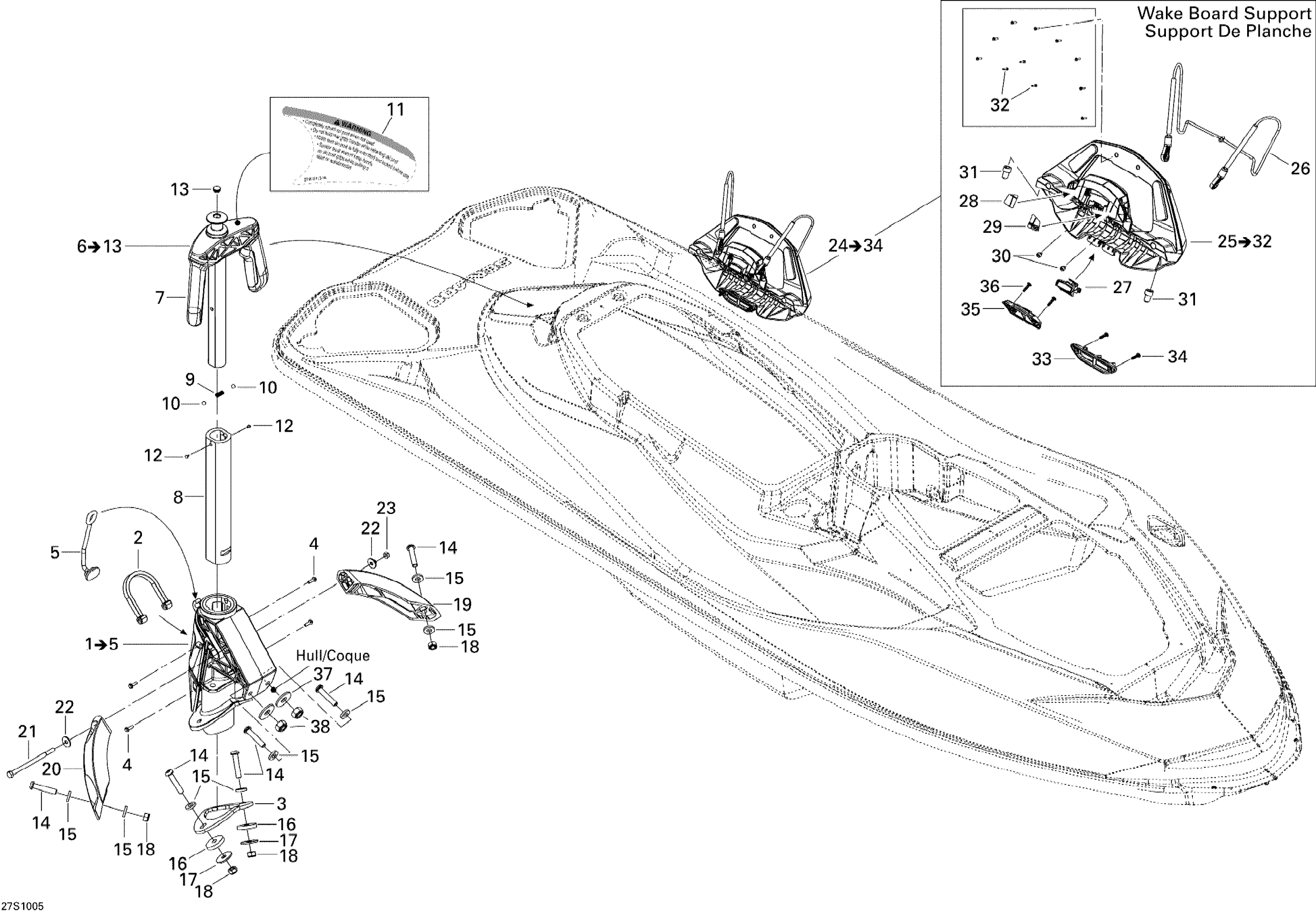

Sea-doo Wake PRO 215, 2010 Body, Front View Diagram

#

Description
Price

1

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$294.99

2

Replacing Kit for Pylon Strap

295100740

$26.49

3

Seal

293250151

$10.99

4

Hex. Flange Screw K40 X 13

241141360

$0.67

5

Strap

269501299

$19.49

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Molded Handle

291004766

$195.99

8

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

9

Ball Spring

269501651

$11.99

10

Ball 1/4"

293350062

$2.69

11

Warning Label

219903137

Unavailable

12

Type "U" Metallic Drive Screw

293150167

$2.29

13

Bumper Plug, Black

291001519

$5.49

14

Socket Head Screw M8 X 40

205484060

$4.12

15

Flat Washer M8.5 x 18

293050001

$3.07

16

Rubber Washer

293830037

$2.68

17

Flat Washer 8 mm, Stainless

250200175

$3.06

18

Hex. Elastic Nut M8 Brass

232581200

$2.22

19

Lateral Arm LH

291002711

$33.99

20

Lateral Arm RH

291002712

$33.99

21

Hex. Screw M6 X 100

230060060

$7.41

22

Flat Washer M6, Stainless

234062600

$0.77

23

Elastic Stop Nut M6, Brass

232561200

$4.23

24

Wakeboard Rack

295100453

$239.49

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Elastic Rope Ass'y

291002979

$37.99

27

Latch

291002980

$28.99

28

Warning WAKE

219903228

Unavailable

29

WAKE-PRO Decal

219903240

$30.99

30

Rubber Bumper

293830005

$8.09

31

Rubber Buffer

293830119

$18.49

32

Flange Torx Screw K40 X 16

250000287

$2.11

33

Lower Anchorage

291002864

$16.49

34

Torx Screw Plastite M6

250000466

$6.98

35

Upper Anchorage

291003582

$16.49

36

Torx Screw Plastite M6

250000466

$6.98

37

Flat Washer 8 mm, Stainless

234082600

$2.43

38

Hex. Elastic Nut M8 Brass

232581200

$2.22
