Description

Price

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 9

269001432

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Rivet 1/4"

293150151

$8.04

5

Stainless Flat Washer M6

234061600

$0.33

6

SEAT STRAP - Call your local BRP dealership

269001391

Unavailable

7

Rivet | Model-T3

293150067

$2.89

8

Grommet

293720067

$12.99

9

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

10

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 10 to 16

269001434

Unavailable

11

Was 293200062 Seal

219704366

$76.49

12

Latch Ass'y

269700109

$24.99

13

Rivet 1/4"

293150151

$8.04

14

Stainless Flat Washer M6

234061600

$0.33

15

Strap

269502417

$17.69

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

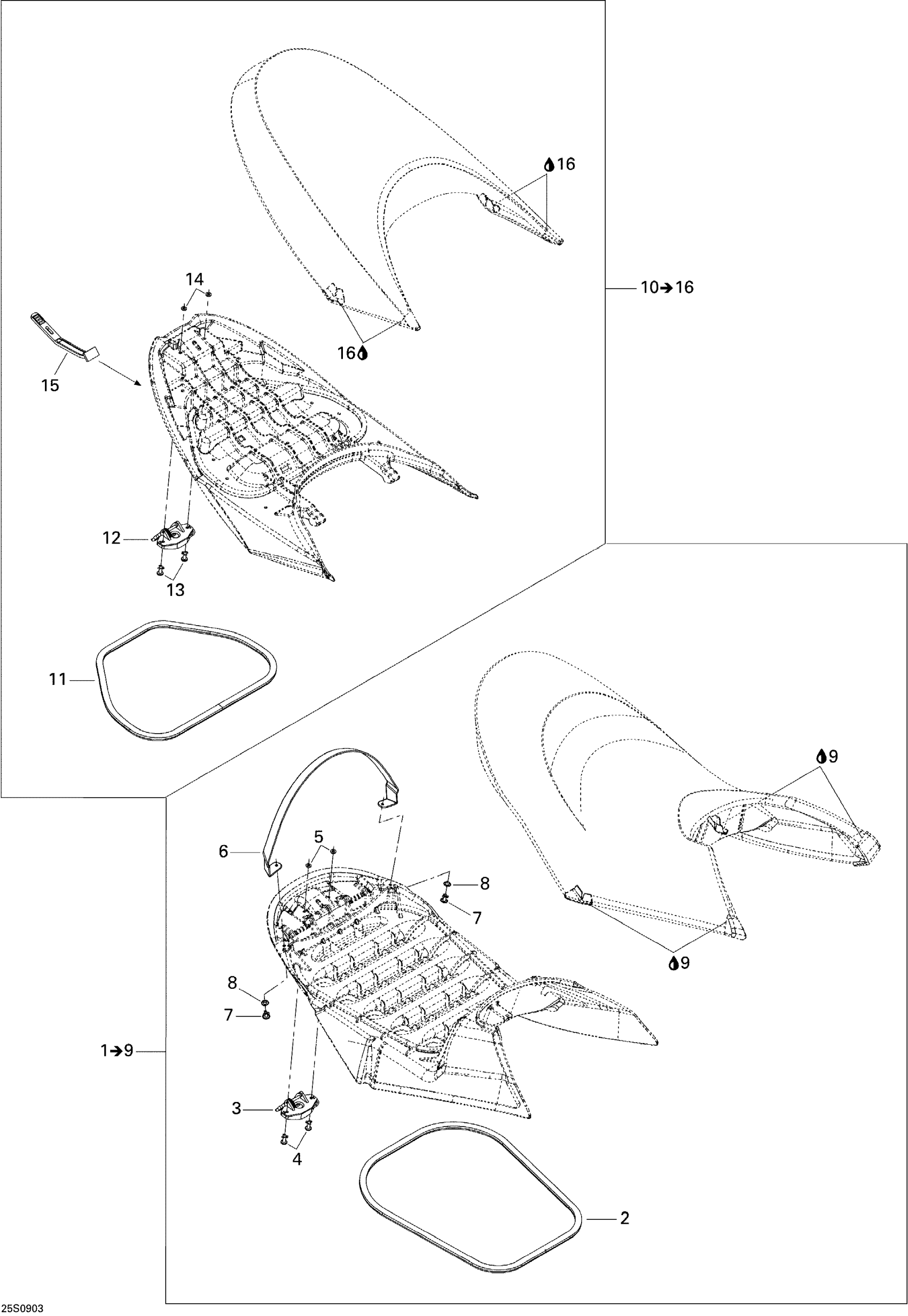

Sea-doo Wake PRO 215, 2009 09- Seat Diagram

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 9

Was 293200062 Seal

Latch Ass'y

Rivet 1/4"

Stainless Flat Washer M6

SEAT STRAP - Call your local BRP dealership

Rivet | Model-T3

Grommet

Était Was 413705800 Loctite 414 , 29.5 c.c

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 10 to 16

Was 293200062 Seal

Latch Ass'y

Rivet 1/4"

Stainless Flat Washer M6

Strap

Était Was 413705800 Loctite 414 , 29.5 c.c
