- Wake PRO 215, 2009
09- Body, Rear View

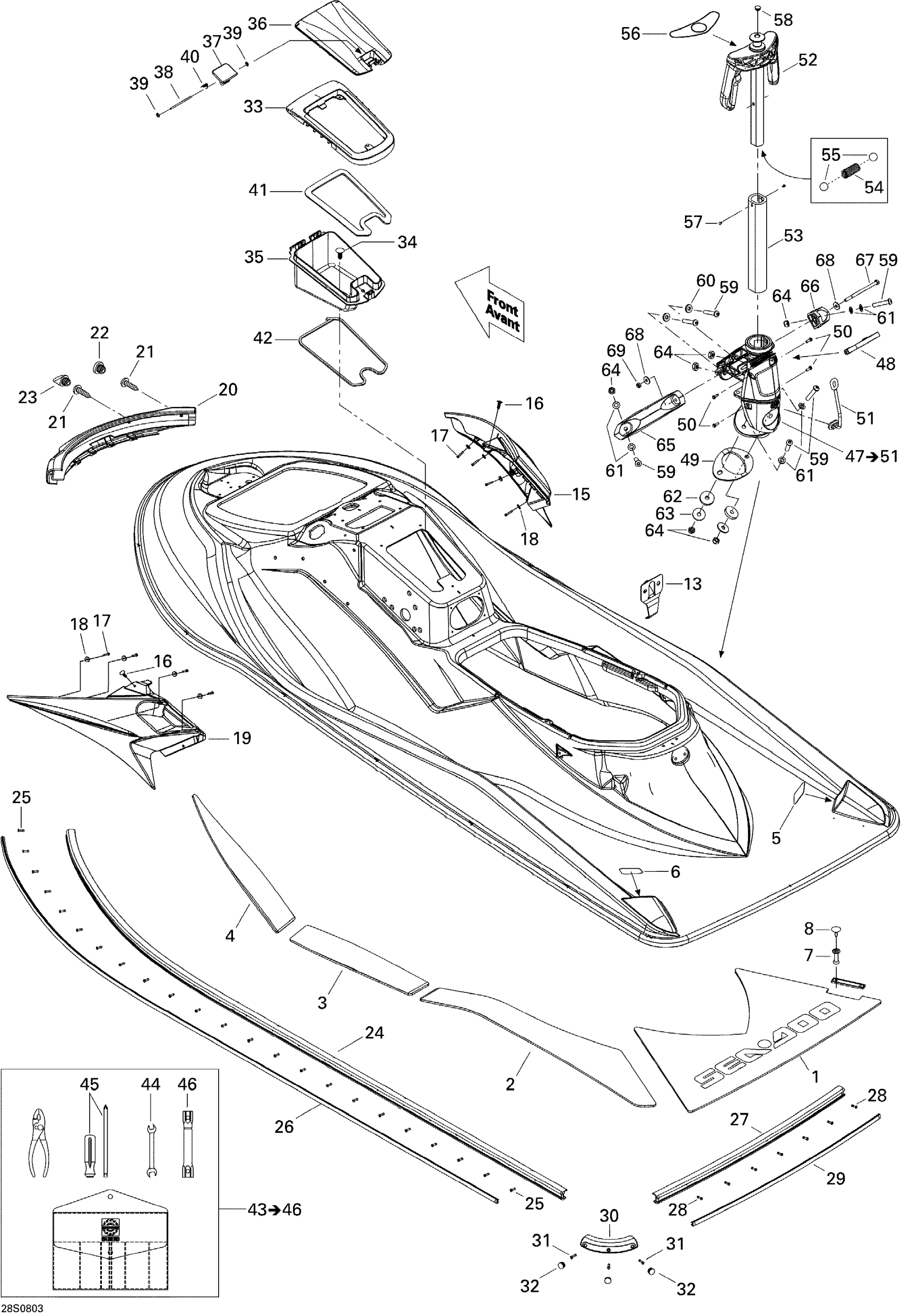

Sea-doo Wake PRO 215, 2009 09- Body, Rear View Diagram
#
1
ANTI SLIP MAT_DECK - Call your local BRP dealership
291002316
Unavailable
2
RH CENTER REAR CARPET - Call your local BRP dealership
291002382
Unavailable
2
LH CENTER REAR CARPET - Call your local BRP dealership
291002383
Unavailable
3
RH CENTER FRONT CARPET - Call your local BRP dealership
291002384
Unavailable
3
LH Center Front Carpet
291002385
Unavailable
4
RH FRONT CARPET - Call your local BRP dealership
291002386
Unavailable
4
LH FRONT CARPET - Call your local BRP dealership
291002387
Unavailable
5
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
6
LH Anti-Skid
291001759
Unavailable
7
Rivet 1/8"
293150016
$0.40
8
Black, Snap Cap
293000014
$1.09
13
Retainer Plate
291001747
Unavailable
15
RH Front Moulding
269501527
Unavailable
16
Black, Dart
293730006
$0.99
17
Hex. Flange Screw K40 X 25
241142560
$2.64
18
WASHER 4.3 MM, NYLON - Call your local BRP dealership
250200055
Unavailable
19
LH Front Moulding
269501529
Unavailable
20
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
21
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
22
Bumper Plug, Black
291001519
$5.49
23
Bumper Plug, Black
291001040
$7.39
24
Black, Side Bumper
204050270
$179.99
25
Pop Rivet 3/16"
293150005
$0.52
26
SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership
291001897
Unavailable
27
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
28
Pop Rivet 3/16"
293150005
$0.52
29
Rear Bumper Trim, Viper Red
291001484
Unavailable
30
Bumper Corner
291002244
$48.99
31
Pop Rivet 3/16"
293150013
$1.37
32
Bumper Plug, Black
291000339
$2.99
33
Cover Trim, Black
269501031
$53.99
34
Black, Dart
293730006
$0.99
35
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
36
GLOVE BOX DOOR - Call your local BRP dealership
269501648
Unavailable
37
Latch, Black
269500553
$21.99
38
Pin
211400008
$9.10
39
Push Nut | Not shown
211100002
$2.19
40
Latch Spring
291000922
$7.39
41
GASKET - Call your local BRP dealership
293250126
Unavailable
42
GASKET - Call your local BRP dealership
293250127
Unavailable
43
TOOL KIT - Call your local BRP dealership | Includes 43 to 46
294000744
Unavailable
44
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
45
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Support Sub-Ass'y | Includes 1900 TO 1900d
291002553
$294.99
48
Replacing Kit for Pylon Strap
295100740
$26.49
49
Seal
293250151
$10.99
50
Hex. Flange Screw K40 X 13
241141360
$0.67
51
Strap
269501299
$19.49
52
Molded Handle
291004766
$195.99
53
ALUMINUM POST - Call your local BRP dealership
291002642
Unavailable
54
Ball Spring
269501651
$11.99
55
Ball 1/4"
293350062
$2.69
56
WARNING DECAL (WAKE BAR) - Call your local BRP dealership
219902218
Unavailable
57
Type "U" Metallic Drive Screw
293150167
$2.29
58
Bumper Plug, Black
291001519
$5.49
59
Socket Head Screw M8 X 40
205484060
$4.12
60
Flat Washer M8.5 x 18
293050001
$3.07
61
Stainless, Flat Washer 8 mm
234081600
$0.55
62
Rubber Washer
293830037
$2.68
63
Flat Washer 8 mm, Stainless
250200175
$3.06
64
Hex. Elastic Nut M8 Brass
232581200
$2.22
65
Lateral Arm LH
291002711
$33.99
66
Lateral Arm RH
291002712
$33.99
67
Hex. Screw M6 X 100
230060060
$7.41
68
Flat Washer M6, Stainless
234062600
$0.77
69
Elastic Stop Nut M6, Brass
232561200
$4.23
