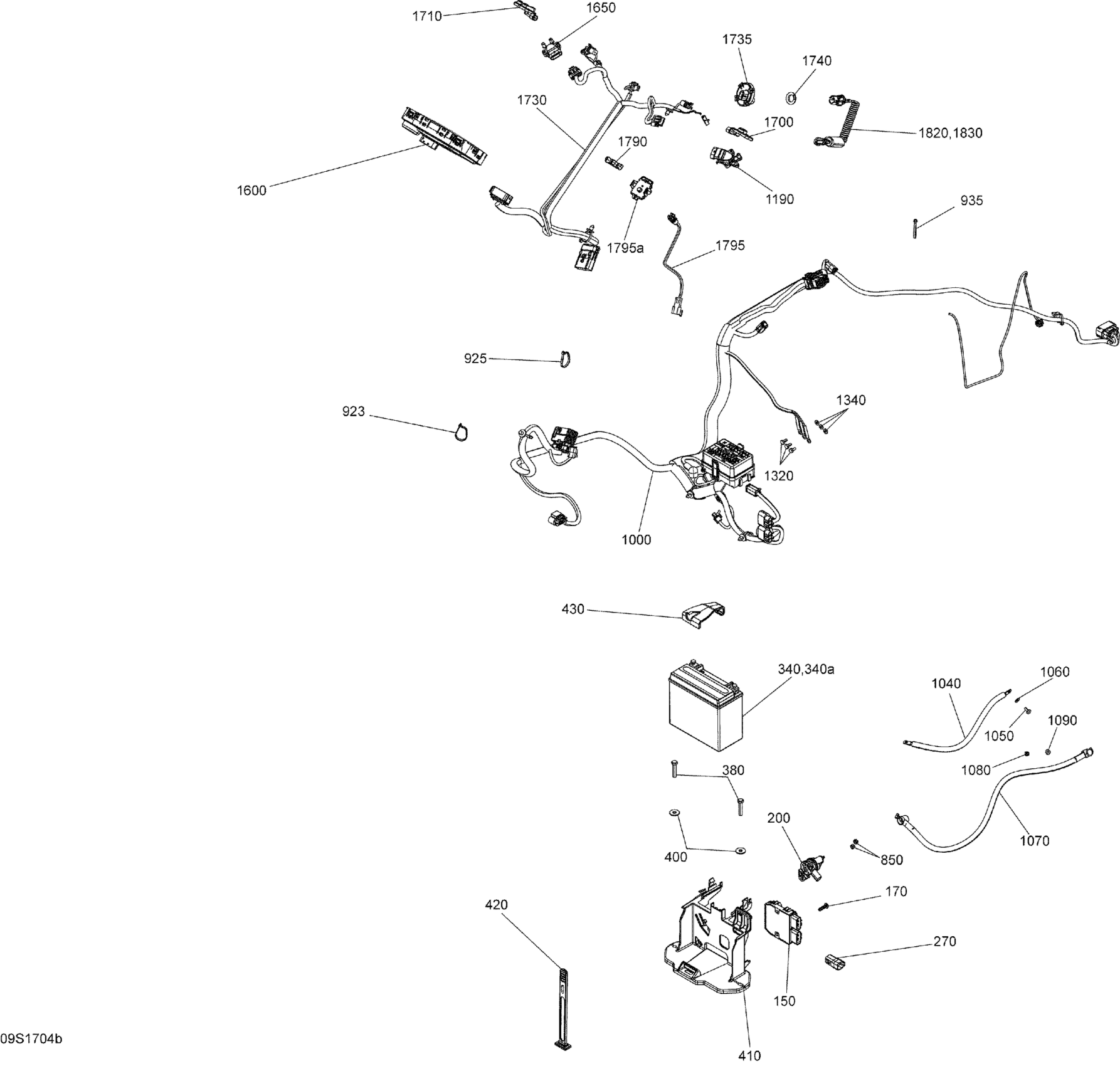

Sea-doo Wake PRO, 2017 Electrical System - All Models Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Torx Screw Plastite M6

250000466

$5.62

Starter Relay

278003012

$35.07

Diagnostic Connector

278002704

$15.57

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Hex. Screw M8 X 40

207184060

$1.85

Flat Washer 8 mm, Stainless

234082600

$1.98

Batt. Support | Except Engine 900HO ACE

278003136

$22.72

Strap

269502417

$14.27

Clip

278003521

$14.27

Elastic Stop Nut M6, Brass

232561200

$3.51

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Rap, 533 mm

293750047

$1.84

Main Harness

278003243

$789.07

Cable Ground

278003211

$31.17

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Starter Cable

278003369

$31.17

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

LCD Gauge | Model GTX LTD

278003533

$807.92

Throttle Position Sensor

278002283

$94.22

Switch LH VTS/Sport/Eco | Package STD

278002767

$101.37

Switch RH Mode/Set

278002602

$100.72

Steering Harness Ass'y

278003265

$245.67

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Safety Nut (DESS Switch)

278002963

$2.72

Not Available As Spare Part - Friction Washer

Unavailable

-Sensor Simulator O.T.A.S. Ass'y | Model GTI Engine 130, 155

278003615

$93.25

Safety Lanyard Ass'y, RFID

278003400

$58.47

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47
