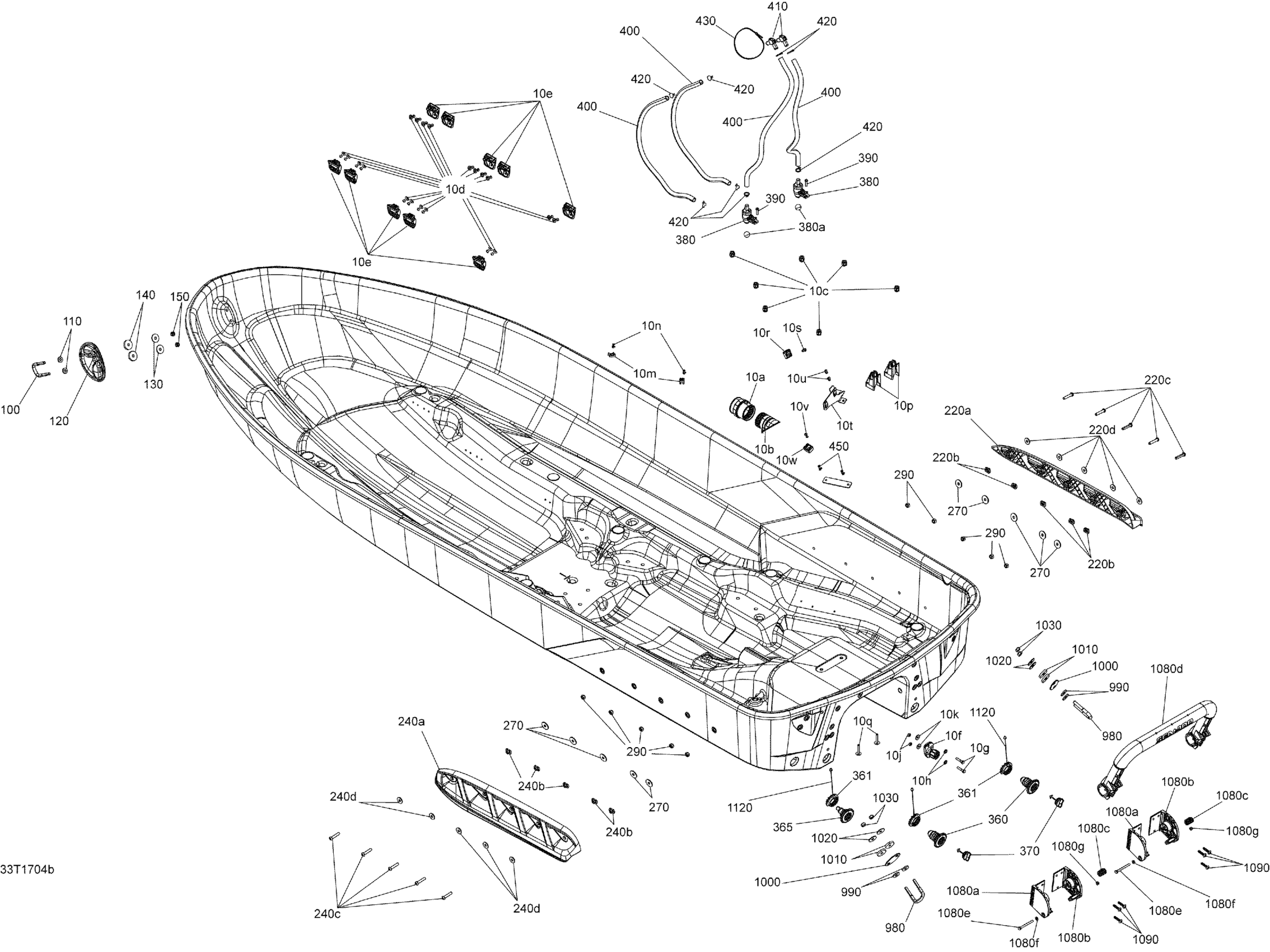

Sea-doo Wake PRO, 2017 Hull - All Models Diagram

#

Description
Price

10a

HULL INSERT - Call your local BRP dealership

293450355

$18.99

10b

Outer Hull Insert

293450309

$25.99

10c

Not Available As Spare Part - Friction Washer

Unavailable

10d

Pop Rivet 3/16"

293150123

$4.29

10e

Strap Retaining

270000933

$6.99

10f

Cable Adaptor Ass'y

277001881

$19.99

10g

Hex. Screw M6 X 30

207063060

$1.89

10h

Sealing Washer

250200114

$4.44

10j

Elastic Stop Nut M6, Brass

232561200

$4.23

10k

Flat Washer M6, Stainless

234062600

$0.77

10m

Tie Rap Mount

293750026

$3.09

10n

Avdel Rivet 3/16"

293150037

$0.56

10p

Strap Anchor

270000988

$10.28

10q

Hexagonal Cap Screw M6 X35

250000399

$4.44

10r

Strap Anchor

270000854

$7.76

10s

Pop Rivet 3/16"

293150043

$2.09

10t

STRAP ANCHOR - Call your local BRP dealership | Package LTD

270000976

Unavailable

10u

Pop Rivet 3/16"

293150043

$2.09

10v

Strap Anchor

270000854

$7.76

10w

Pop Rivet 3/16"

293150043

$2.09

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

120

BOW CUP - Call your local BRP dealership

292001867

Unavailable

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$2.22

220a

RH Sponson

292001878

$93.99

220b

Spacer Sponson

292001349

$10.99

220d

Flat Washer 8 mm, Stainless

234082600

$2.43

220c

Torx Screw M8 X 40, Stainless

250000452

$3.91

240a

LH Sponson

292001877

$93.99

240b

Spacer Sponson

292001349

$10.99

240d

Flat Washer 8 mm, Stainless

234082600

$2.43

240c

Torx Screw M8 X 40, Stainless

250000452

$3.91

270

Flat Washer 8 mm, Stainless

250200175

$3.06

290

Hex. Elastic Nut M8 Brass

232581200

$2.22

360

Drain Ass'y

292001580

$16.49

361

Plastic Nut

292001825

$9.79

365

Drain Neck Ass'y

292001317

$27.99

370

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

380>380a

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

380a

Floating Ball

293830080

$7.19

390

Hex. Screw 10-14 X 7/8”

211000023

$3.59

400

Was 275500008 Hose 12 mm

219704356

$20.49

410

Fitting Elbow 90°

293710152

$18.49

420

Tie Wrap 94 mm | 4X4

293750001

$1.03

430

Tie Wrap 368 mm

293750008

$1.04

450

Avdel Rivet 3/16"

293150037

$0.56

980

U-Clamp

292000933

$59.49

990

Flat Washer

279000336

$11.57

1000

Black, Finition Plate

291001386

$10.99

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$3.06

1030

Hex. Elastic Nut M8 Brass

232581200

$2.22

1080a

A Section Support

292001509

$59.99

1080b

B Section Support

292001510

$59.99

1080c

Spring

292001259

$27.99

1080d

Overmolded Bar

292001204

$159.99

1080e

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

1080f

Stainless Flat Washer M6

234061600

$0.33

1080g

Hex. Elastic Stop Nut M6

232561600

$1.15

1090

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1120

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99
