Description

Price

10>10d

Satin Denim Blue Hood Ass'y

269502312

$609.99

10a

Black Front Cosmetic | Model GTX 155, GTX S 155

269502089

$26.49

10b

Hex. Flange Screw K40 X 13

241141360

$0.67

10c

Flat Washer 4 mm, Stainless

234041600

$1.15

10d

Spacer

291001203

$13.49

20

DEFLECTOR - Call your local BRP dealership

269502156

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

$1.48

26

Flat Washer 4 mm, Stainless

234041600

$1.15

29

Spacer

291001203

$13.49

30

Left Latch

269501964

$30.99

40

Right Latch

269501965

$30.99

150>150a

Shock Absorber | Includes 150 to 150d

269501664

$134.99

150a

Shock Absorber End Fitting

269501984

$11.49

200

RH Mirror Ass'y

269501920

$68.99

210

White, RH Mirror Housing

269502206

$68.99

220

LH Mirror Ass'y

269501918

$68.99

230

White, LH Mirror Housing

269502205

$68.99

250

Mirror Spring

269500453

$10.49

260

Elastic Stop Nut M6, Brass

232561200

$4.23

300

Rubber Bumper

293830135

$15.99

310

GREEN FRONT COSMETIC - Call your local BRP dealership

269502166

Unavailable

320

Rivet | Model-T3

293150067

$2.89

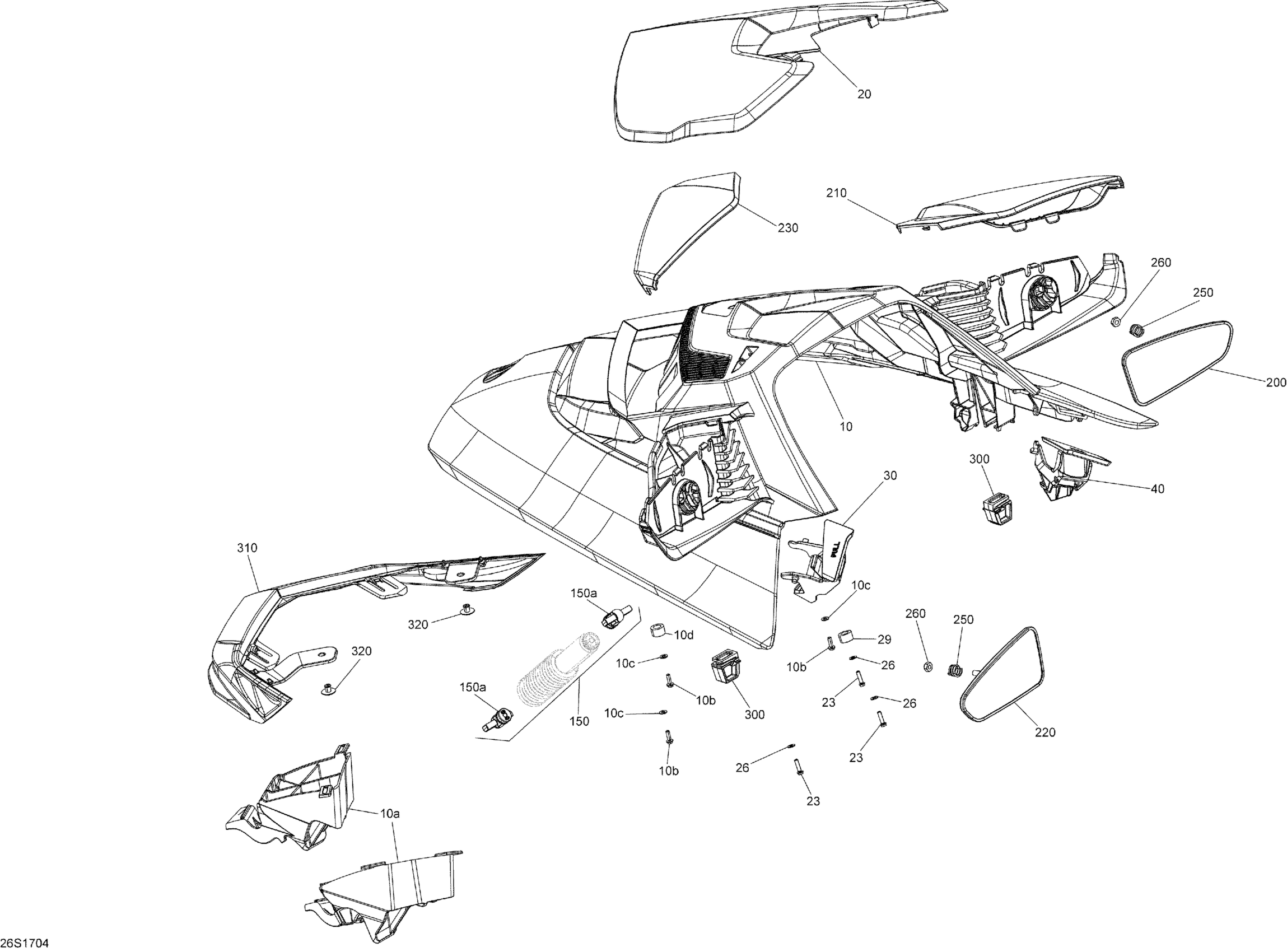

Sea-doo Wake PRO, 2017 09- Front Cover All Models Diagram

Satin Denim Blue Hood Ass'y

Black Front Cosmetic | Model GTX 155, GTX S 155

Hex. Flange Screw K40 X 13

Flat Washer 4 mm, Stainless

Spacer

DEFLECTOR - Call your local BRP dealership

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

Spacer

Left Latch

Right Latch

Shock Absorber | Includes 150 to 150d

Shock Absorber End Fitting

RH Mirror Ass'y

White, RH Mirror Housing

LH Mirror Ass'y

White, LH Mirror Housing

Mirror Spring

Elastic Stop Nut M6, Brass

Rubber Bumper

GREEN FRONT COSMETIC - Call your local BRP dealership

Rivet | Model-T3
