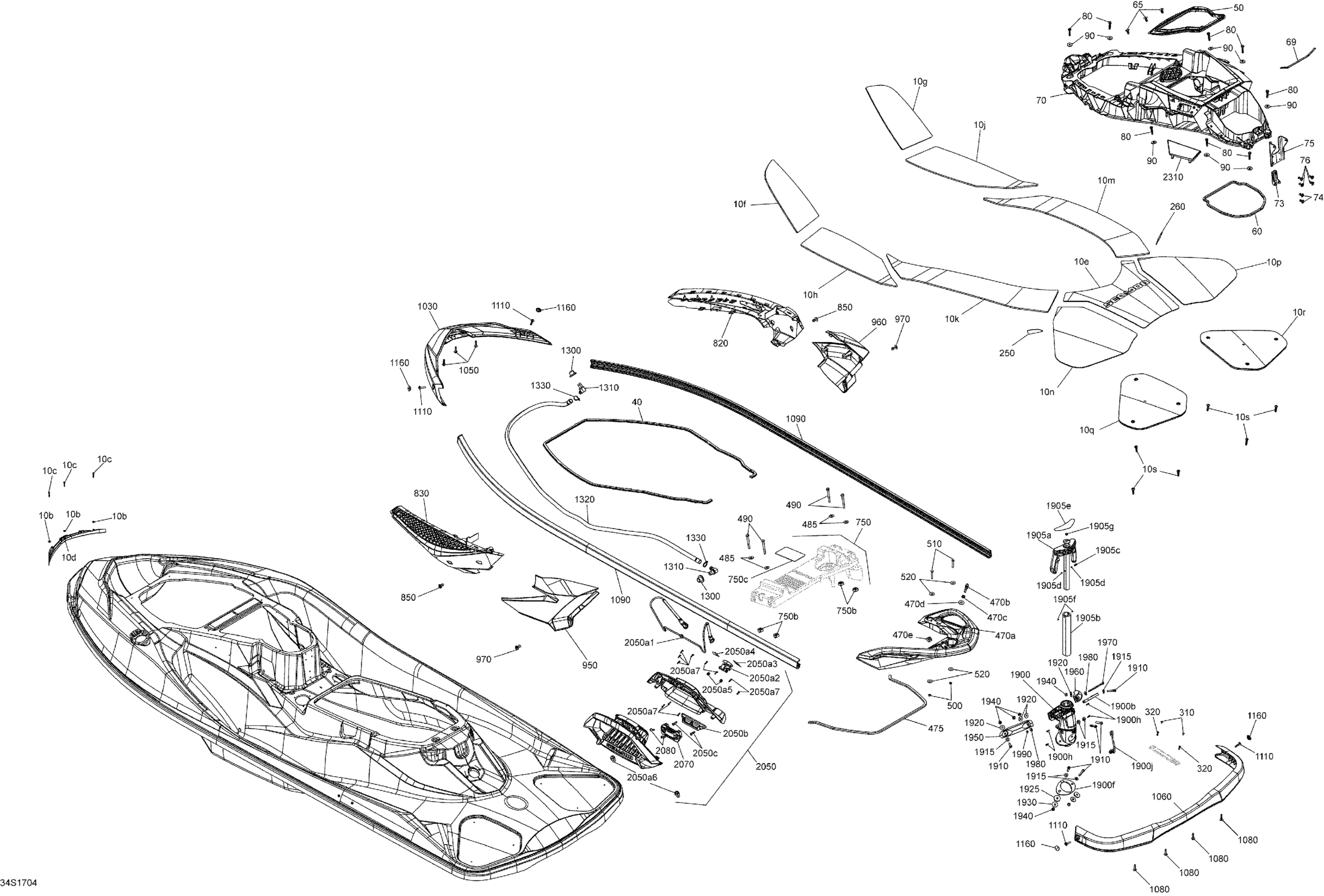

Sea-doo Wake PRO, 2017 09- Body - All Models Diagram

Flat Washer 4 mm, Stainless

234042600

$1.15

Hex. Flange Screw K40 X 25

241142560

$2.64

DECK NOSE - Call your local BRP dealership

291002818

$15.99

Carpet

291004291

$64.49

LH Front Carpet

291002930

$7.09

ANTI SLIP MAT FR - Call your local BRP dealership

291002931

Unavailable

ANTI SLIP MAT CTRL L - Call your local BRP dealership

291004359

Unavailable

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291004360

Unavailable

ANTI SLIP MAT REAR L - Call your local BRP dealership

291004361

Unavailable

ANTI SLIP MAT REAR R - Call your local BRP dealership

291004362

Unavailable

Carpet

291004336

$41.49

Carpet

291004337

$41.49

LH SPACER - Call your local BRP dealership

291004295

Unavailable

RH SPACER - Call your local BRP dealership

291004296

Unavailable

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

GASKET - Call your local BRP dealership

293250259

Unavailable

NEOPRENE SEAL - Call your local BRP dealership

293250365

Unavailable

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

Black Dart

293730010

$0.99

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

Front Module

291004595

$279.99

CASE - Call your local BRP dealership

269002893

Unavailable

Pop Rivet 3/16"

293150123

$4.29

SEAT PIVOT - Call your local BRP dealership

291004210

Unavailable

Pop Rivet 3/16"

293150123

$4.29

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

Flat Washer 8 mm, Stainless

234082600

$2.43

LH Nonskid

291002626

$12.17

RH NONSKID - Call your local BRP dealership

291002937

Unavailable

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

REAR HANDLE ASSY - Call your local BRP dealership

291004623

Unavailable

Seat Stud

291003878

$48.99

Hex. Jam Nut M10

232100600

$2.22

Flat Washer 10 mm, Stainless

234002600

$2.22

Elastic Nut M10 Housing

271001732

$9.11

Gasket 3000Mm Long

219704378

$26.49

Hex. Screw M6 x 55

207065560

$1.01

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Screw M6 X 40

207164060

$3.38

Flat Washer M6.6 X 22

250200022

$2.72

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

CAUTION ENGINE OIL - Call your local BRP dealership

219903184

Unavailable

Front RH Cosmetic Ass

291004176

$423.99

FRONT LH COSMETIC ASS - Call your local BRP dealership

291004177

Unavailable

Pop Rivet 3/16"

293150123

$4.29

LH COSMETIC - Call your local BRP dealership This part replaces 291004240.

291004638

Unavailable

RH Cosmetic This part replaces 291004245.

291004245

$132.49

Pop Rivet 3/16"

293150123

$4.29

Front Bumper

291004275

$78.49

Hexagonal Cap Screw M6 X35

250000399

$4.44

Rear Bumper

291004274

$121.49

Hexagonal Cap Screw M6 X35

250000399

$4.44

Black, Side Bumper

291004451

$58.49

Hexagonal Cap Screw M6 X35

250000399

$4.44

Bumber Cap | Except Cab Package

291002744

$14.49

Grommet

513033435

$4.69

Elbow Fitting

414523600

$4.86

Was 275500008 Hose 12 mm

219704356

$20.49

Tie Wrap 94 mm | 4X4

293750001

$1.03

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$294.99

Replacing Kit for Pylon Strap

295100740

$26.49

Seal

293250151

$10.99

Hex. Flange Screw K40 X 13

241141360

$0.67

Strap

269501299

$19.49

Molded Handle

291004766

$195.99

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

Ball Spring

269501651

$11.99

Ball 1/4"

293350062

$2.69

Warning Label

219903137

Unavailable

Type "U" Metallic Drive Screw

293150167

$2.29

Bumper Plug, Black

291001519

$5.49

Torx Screw M8 X 40, Stainless

250000452

$3.91

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

234082600

$2.43

Rubber Washer

293830037

$2.68

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

Lateral Arm LH

291002711

$33.99

Lateral Arm RH

291002712

$33.99

Hex. Screw M6 X 100

230060060

$7.41

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Wakeboard Rack

295100453

$239.49

Elastic Rope Ass'y

291002979

$37.99

Latch

291002980

$28.99

Warning WAKE

219903228

Unavailable

WAKE-PRO Decal

219903240

$30.99

Rubber Bumper

293830005

$8.09

Rubber Buffer

293830119

$18.49

Flange Torx Screw K40 X 16

250000287

$2.11

Lower Anchorage

291002864

$16.49

Torx Screw Plastite M6

250000466

$6.98

Upper Anchorage

291003582

$16.49

Torx Screw Plastite M6

250000466

$6.98

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable
