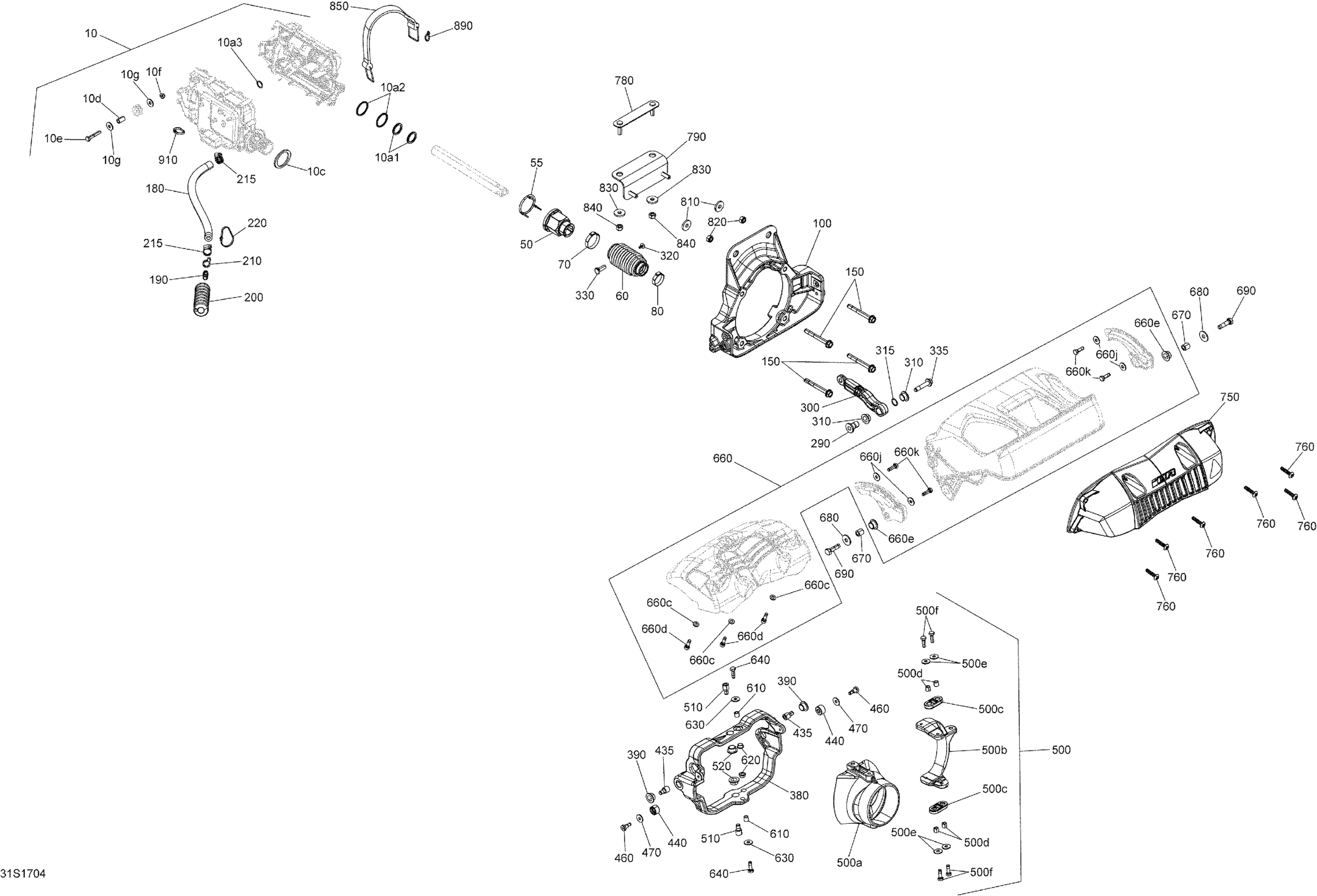

Sea-doo Wake PRO, 2017 Reverse - All Models Diagram

#

Description
Price

10>10g

Actuator | Includes 10 to 10j

278003606

$829.99

10a1

O-Ring

279000108

$6.03

10a2

O-Ring

293300107

$1.01

10a3

O-Ring

293300187

$4.89

10c

Gasket

268000208

$15.37

10d

Spacer

271001020

$12.99

10e

Hex. Screw M6 X 35

207063560

$2.22

10f

Elastic Stop Nut M6, Brass

232561200

$4.23

10g

Flat Washer M6, Stainless

234062600

$0.77

50

IBR Nut

268000308

$12.59

55

Rubber Gasket

277001977

$2.61

60

Boot

268000186

$27.49

70

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

80

Crimp Clamp

293650099

$4.29

100

Bracket

268000266

$91.99

150

Screw-Hex.Flange DIN.6921 S.Grip

250000835

$3.91

180

Was 509000407 Hose 8 mm

219704420

$50.99

190

Fitting-Straig

293710157

$8.29

200

Inner Boot This part replaces 268000345.

268000211

$12.06

210

Tie Wrap 142 mm

293750002

$1.25

215

Tridon Gear Clamp

293650171

$3.09

220

Tie Wrap 142 mm

293750002

$1.25

290

Bushing

268000269

$16.87

300

Linkage Arm

268000256

$22.49

310

Venturi Bushing

293900007

$5.45

315

O-Ring

293300187

$4.89

320

Hexalob Screw M4 X 10

250000565

$2.11

330

Shoulder Pin

268000309

$19.99

335

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

380

Trimming Ring

268000247

$95.99

390

Venturi Bushing

293900007

$5.45

435

Screw Socket S.Grip

250000837

$9.09

440>440a

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

440a

Screw-Socket Shoulder M8X8

250000775

$8.29

460

Screw-Socket Shoulder M8X8

250000775

$8.29

470

Flat Washer M6, Stainless

234062600

$0.77

500>500f

NOZZLE ASS'Y - Call your local BRP dealership | Includes 260 TO 260f

267000905

Unavailable

500a

Jet Pump Nozzle

267000727

$77.99

500b

Nozzle Lever, Black

268000148

$61.99

500c

Direction Lever Arm

268000058

$13.99

500d

Spacer

268000060

$12.99

500e

Flat Washer M6, Stainless

234062600

$0.77

500f

Scotch Grip Hexagonal Screw M6 X 20

250000891

$2.21

510

Screw Socket S.Grip

250000837

$9.09

520

Venturi Bushing

293900007

$5.45

610

Spacer

268000060

$12.99

620

Bushing

268000059

$14.17

630

Flat Washer M6, Stainless

234062600

$0.77

640

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

660>660k

Gate Reverse Ass'y | Includes 280 TO 280i

268000296

$129.99

660c

Stainless Flat Washer M6

234061600

$0.33

660d

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

660e

Venturi Bushing

293900007

$5.45

660j

Flat Washer M6, Stainless

234062600

$0.77

660k

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

670

Spacer

271001039

$16.49

680

Flat Washer 8 mm, Stainless

234082600

$2.43

690

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

750

Guard

268000162

$29.99

760

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

780

Ass'y Bracket

268000271

$11.49

790

Reverse Bracket

268000304

$18.99

810

Flat Washer

279000336

$11.57

820

Hex. Elastic Nut M8 Brass

232581200

$2.22

830

Flat Washer

279000336

$11.57

840

Hex. Elastic Nut M8 Brass

232581200

$2.22

850

Fuel Tank Strap

293850123

$17.49

890

Tie Wrap 94 mm | 4X4

293750001

$1.03

910

Tie Wrap 142 mm

293750002

$1.25
