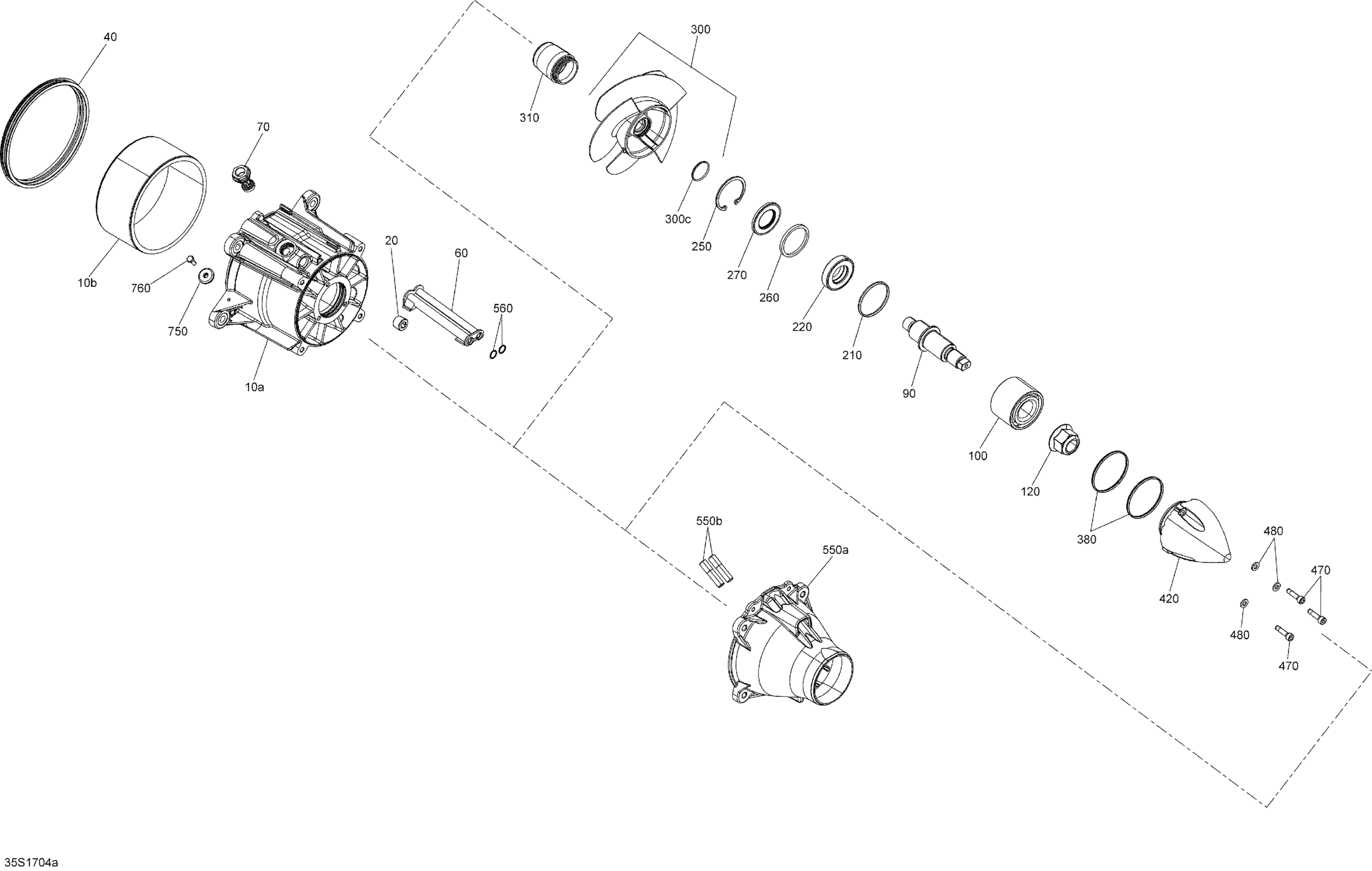

Sea-doo Wake PRO, 2017 Pump - All Models Diagram

#

Description
Price

10a

Impeller Housing

271002018

$227.47

10b

Wear Ring

267000372

$68.87

20

Black, Plastic Plug

267000469

$5.99

40

Neoprene Seal

293200087

$9.19

60

Water Outlet

271000785

$3.04

70

Plug | Includes 370z to 370z1

267000282

$14.27

90

Impeller Shaft

267000388

$94.22

100

Angled Bearing This part replaces 267000030.

267000900

$66.27

120

Elastic Flange Nut M20

250100104

$9.71

210

O-Ring

293300090

$5.97

220

Seal

271002071

$26.62

250

Circlip

293370038

$7.12

260

Spacer

271001393

$6.12

270

Oil Seal

293200089

$15.57

300>300c

Impeller Ass'Y | Model GTX LTD 230 This part replaces 267000912.

267000954

$402.97

300c

O-Ring

293300114

$12.97

310

Guard

271002228

$9.85

380

O-Ring

293300086

$2.90

420

Impeller Cover

267000428

$14.27

470

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

480

Stainless Flat Washer M6

234061600

$0.25

550a

Black Venturi

267000844

$169.62

550b

Siphon Tube

271001885

$1.46

560

O-Ring

293300013

$5.69

750

Anode Zinc

271001920

$11.43

760

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91
