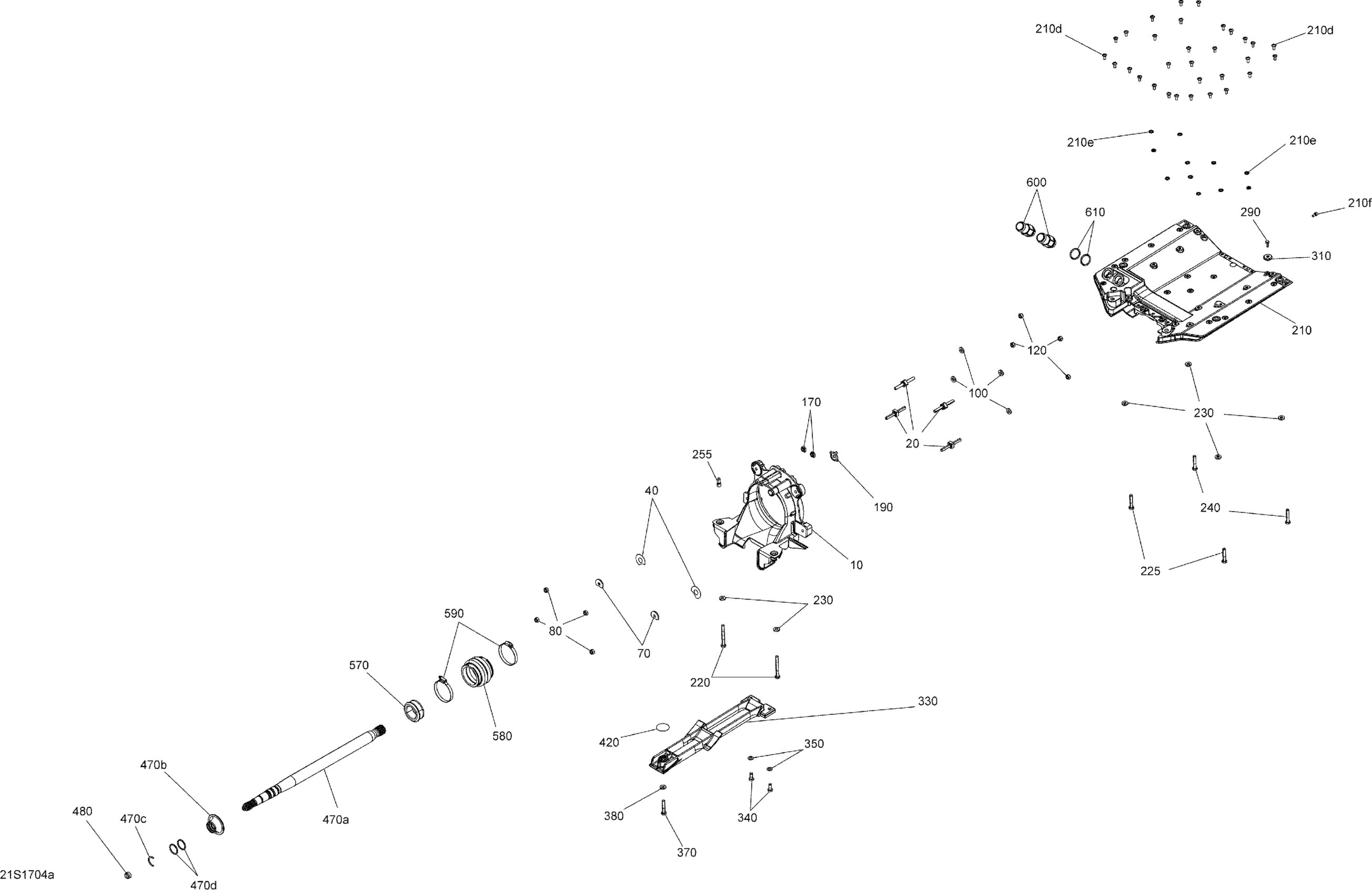

Sea-doo Wake PRO, 2017 05- Propulsion - All Models Diagram

Pump Support

271001932

$49.99

Square Stud

250300046

$14.82

Shim 0.3 mm

272000053

$11.49

Flat Washer

279000326

$4.19

Hex. Elastic Nut M8 Brass

232581200

$2.22

Flat Washer M8.5 x 18

293050001

$3.07

Hex. Elastic Nut M8 Brass

232581200

$2.22

Watertight Seal

293250084

$7.49

Reducer, Green This part replaces 271001586.

271002029

$16.49

Riding Plate Ass'y | Includes 210 to 210f

271001939

$227.49

Torx Screw M6 X 14

250000384

$7.51

Sealing Washer

250200114

$4.44

Socket Drain Plug M6 X 12

250500005

$16.49

Hexagonal Head Cap Screw M8 X 75

250000812

$2.85

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

Flat Washer M8.5 x 18

293050001

$3.07

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

Cap Plug

293000105

$4.39

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

Anode Zinc

271001920

$15.99

Pump Grate

271001967

$109.99

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

Stainless, Flat Washer 8 mm

234081600

$0.55

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

Flat Washer M8.5 x 18

293050001

$3.07

PROTECTOR DISK - Call your local BRP dealership

293830047

$1.99

Drive Shaft

271001719

$328.49

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$98.99

C-Clip

271001577

$3.27

O-Ring

293300107

$1.01

Drive Shaft Plug

272000173

$8.68

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

Bellow This part replaces 271001422.

271001933

$23.49

Norma Clamp

293650079

$11.60

Strait Fitting

293710124

$17.39

O-Ring

293300121

$8.32
