02- Fuel System - All Models

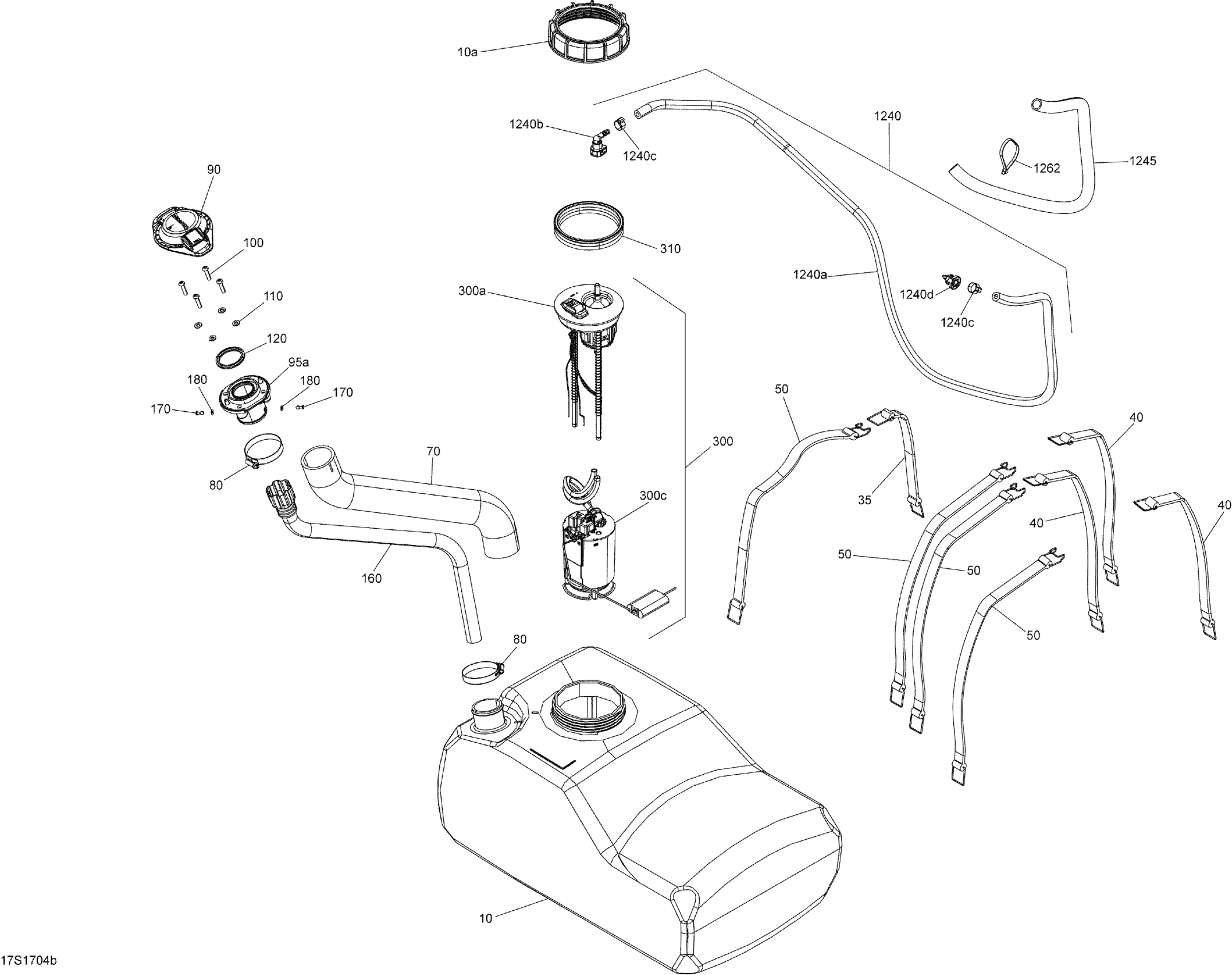

Sea-doo Wake PRO, 2017 02- Fuel System - All Models Diagram
#
Description
Price
10>10a
Fuel Tank
275500962
$359.99
10a
Special Nut M130
250100062
$21.99
35
Fuel Tank Strap
293850087
$19.99
40
Fuel Tank Strap
293850093
$21.99
50
Fuel Tank Strap
293850101
$17.49
70
HOSE - Call your local BRP dealership
275500917
Unavailable
80
Norma Clamp
293650081
$12.18
90
Fuel Cap Ass'y
275500832
$69.99
95a
Fuel Filler Neck
275500848
$39.49
100
Torx Screw M6 X 25, Scotch Grip
250000328
$2.19
110
Stainless Flat Washer M6
234061600
$0.33
120
X-Ring
293300139
$23.99
160
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
170
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
180
Flat Washer M3, Stainless
234032600
$0.55
300>300c
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
300a
Sensor Lever
275500780
$224.99
300c
Fuel Filter
270600113
$33.99
310
Gasket
293250173
$18.49
1240a
HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership
219704395
Unavailable
1240b
Quick Disconnect
275500921
$16.49
1240c
Crimp Clamp
293650053
$3.09
1240d
Elbow Fitting 90°
293710105
$14.22
1245
Tubing 16 Mm 1000Mm Long
219704408
$7.49
1262
Tie Wrap 368 mm
293750008
$1.04
