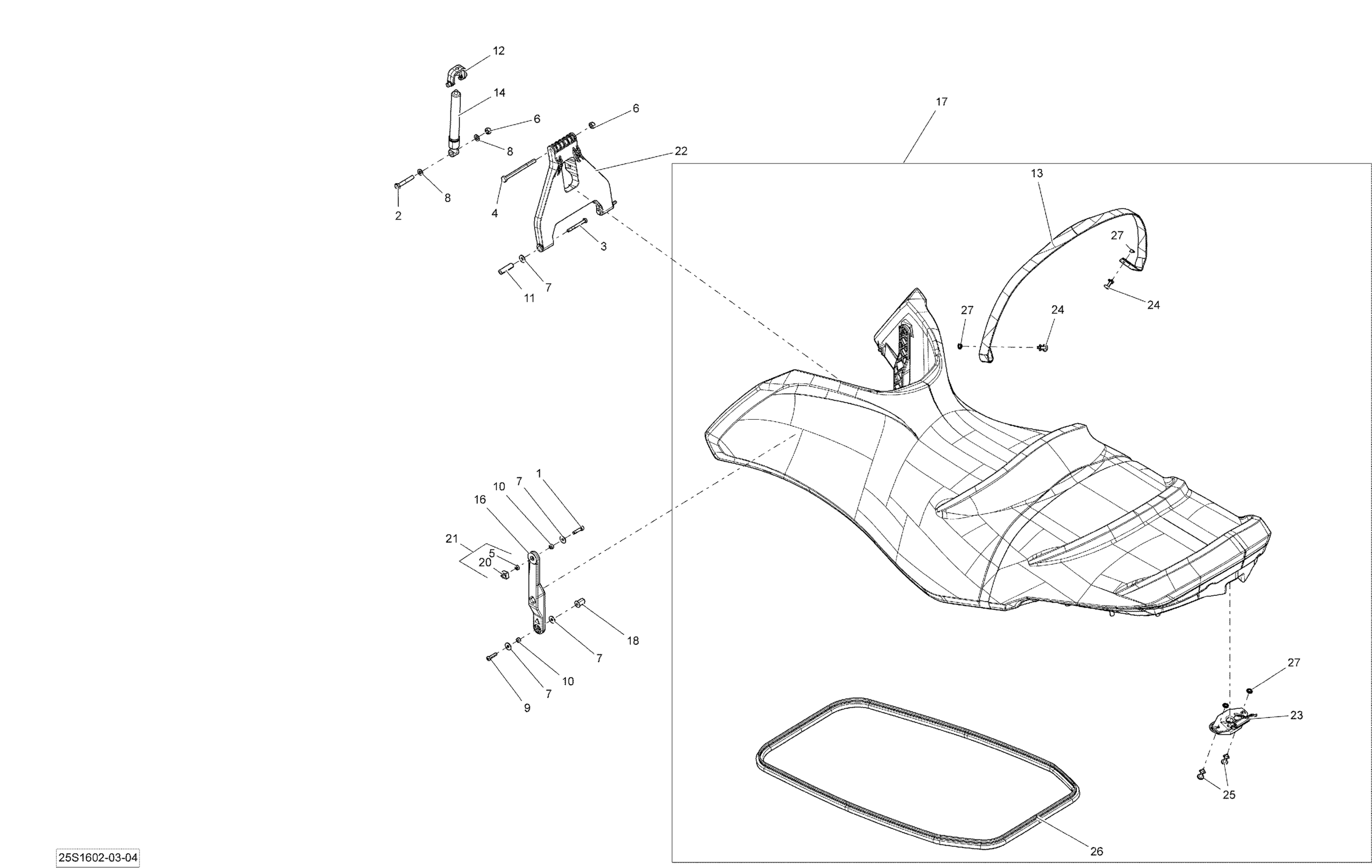

Sea-doo Wake PRO, 2016 09- Seat Diagram
#
Description
Price
1
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
2
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
3
Hex. Screw M6 X 55, Scotch Grip | Except Europe
207265560
$7.41
4
HEX. SCREW M8 X 100 - Call your local BRP dealership
230080060
Unavailable
5
Elastic Stop Nut M6, Brass
232561200
$4.23
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Flat Washer M6, Stainless
234062600
$0.77
8
Stainless, Flat Washer 8 mm
234081600
$0.55
9
Torx Screw M6 X 25, Scotch Grip
250000328
$2.19
10
Spacer
269001588
$12.49
11
Spacer
269001589
$18.49
12
End Fitting
269002077
$16.85
13
STRAP-SEAT - Call your local BRP dealership
269002869
Unavailable
14
Shock
269002895
$65.99
16
LATERAL ARM - Call your local BRP dealership | Model without Suspension
269002978
Unavailable
17
Denim Blue, Seat Ass'y
269002919
$989.99
18
Expansion Nut M6 X 1
250100150
$2.11
20
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
21
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
22
Center Arm
269502120
$24.99
23
Latch Ass'y
269700116
$36.99
24
Rivet | Model-T3
293150067
$2.89
25
Rivet 1/4"
293150151
$8.04
26
Was 293200062 Seal
219704366
$76.49
27
Grommet
293720067
$12.99
