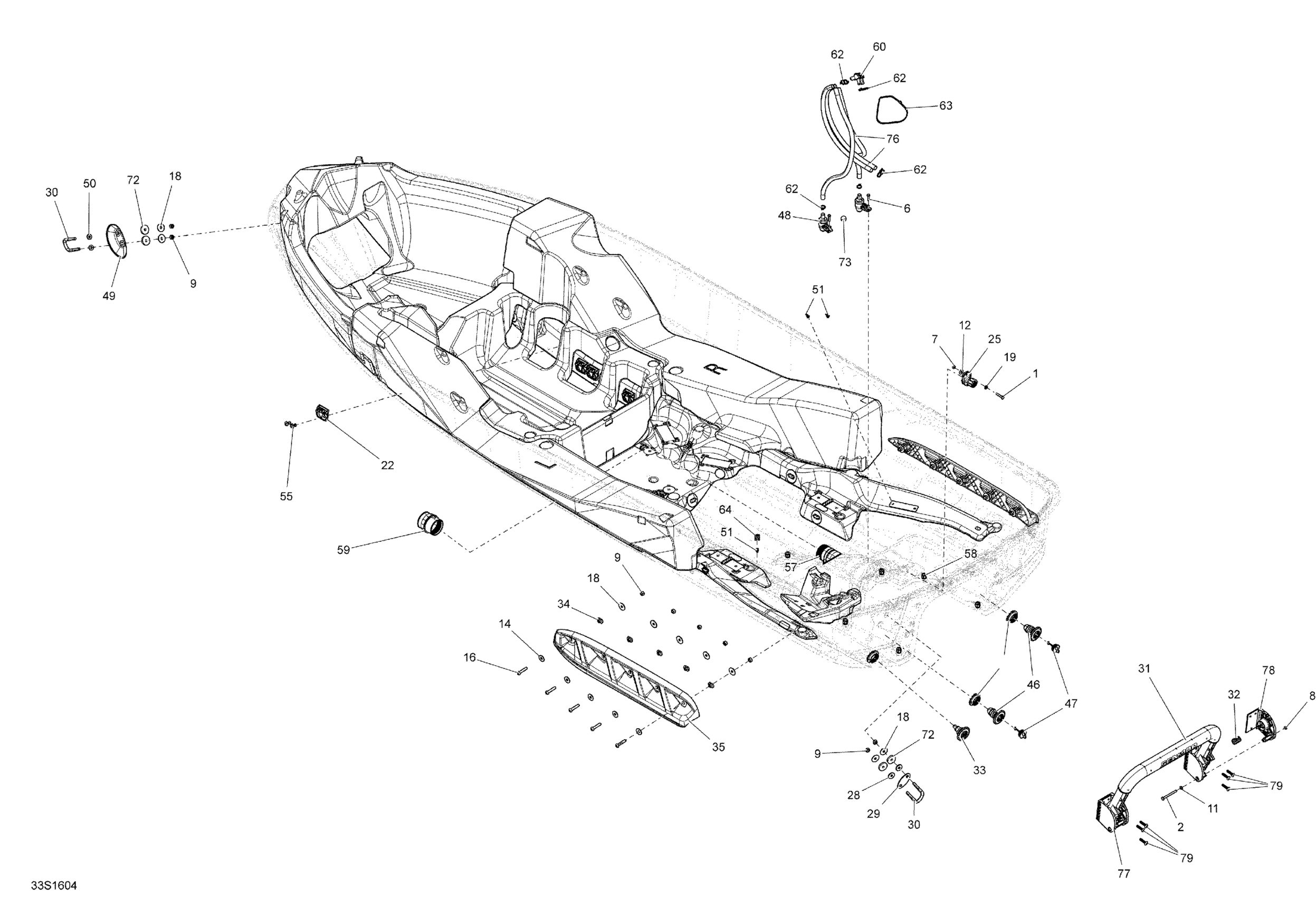

Sea-doo Wake PRO, 2016 Hull Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.51

2

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.55

6

Hex. Screw 10-14 X 7/8”

211000023

$2.91

7

Elastic Stop Nut M6, Brass

232561200

$3.51

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

Hex. Elastic Nut M8 Brass

232581200

$1.29

11

Stainless Flat Washer M6

234061600

$0.25

12

Flat Washer M6, Stainless

234062600

$0.64

16

Torx Screw M8 X 40, Stainless

250000452

$3.85

18

Flat Washer 8 mm, Stainless

234082600

$1.98

18

Flat Washer 8 mm, Stainless

250200175

$1.29

19

Sealing Washer

250200114

$3.61

22

Strap Retaining

270000933

$5.47

25

Cable Adaptor Ass'y

277001881

$15.57

28

Flat Washer

279000336

$8.35

29

Black, Finition Plate

291001386

$8.57

30

U-Clamp

292000933

$32.47

31

Overmolded Bar

292001204

$122.82

32

Spring

292001259

$21.42

33

Drain Neck Ass'y

292001317

$21.42

33a

Plastic Nut

292001825

$6.37

34

Spacer Sponson

292001349

$11.06

35

RH Sponson

292001878

$72.77

35

LH Sponson

292001877

$72.77

46

Drain Ass'y

292001580

$12.86

46a

Plastic Nut

292001825

$6.37

47

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

48

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

49

BOW CUP - Call your local BRP dealership

292001867

Unavailable

50

Flat Washer M8.5 x 18

293050001

$1.29

51

Avdel Rivet 3/16"

293150037

$0.47

55

Pop Rivet 3/16"

293150123

$3.43

57

Outer Hull Insert

293450309

$20.12

58

Not Available As Spare Part - Friction Washer

Unavailable

59

HULL INSERT - Call your local BRP dealership

293450355

$16.12

60

Fitting Elbow 90°

293710152

$14.92

62

Tie Wrap 94 mm | 4X4

293750001

$0.83

63

Tie Wrap 368 mm

293750008

$0.85

64

Tie Rap Mount

293750026

$2.41

72

Rubber Washer

293830037

$2.75

73

Floating Ball

293830080

$5.56

76

Was 275500008 Hose 12 mm

219704356

$5.94

77

A Section Support

292001509

$58.47

79

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61
