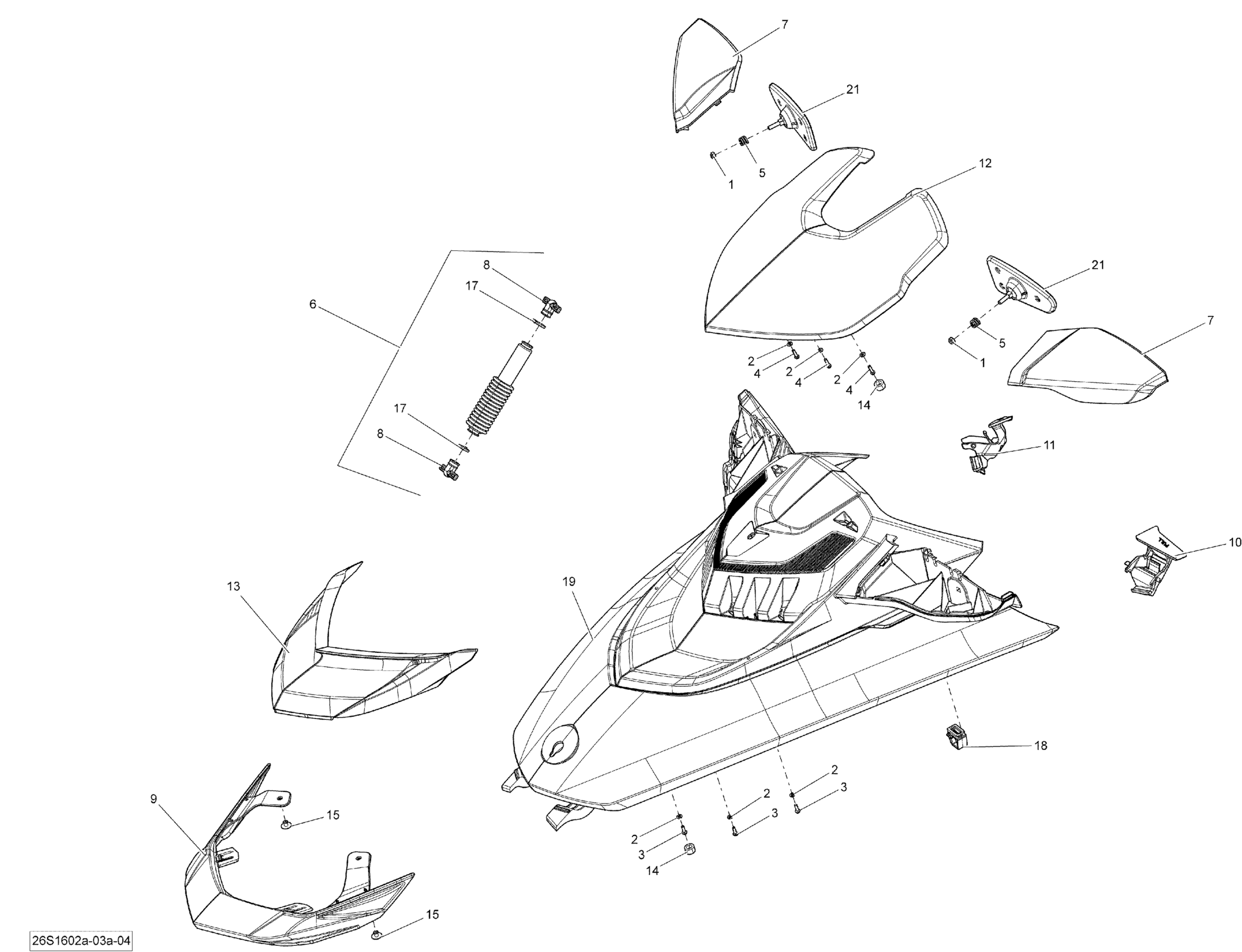

Sea-doo Wake PRO, 2016 Front Cover Diagram

#

Description
Price

1

Elastic Stop Nut M6, Brass

232561200

$4.23

2

Flat Washer 4 mm, Stainless

234041600

$1.15

3

Hex. Flange Screw K40 X 13

241141360

$0.67

4

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Mirror Spring

269500453

$10.49

6

Shock Absorber | Includes 150 to 150d

269501664

$134.99

7

White, RH Mirror Housing

269502206

$68.99

7

White, LH Mirror Housing

269502205

$68.99

8

Shock Absorber End Fitting

269501984

$11.49

9

GREEN FRONT COSMETIC - Call your local BRP dealership

269502166

Unavailable

10

Left Latch

269501964

$30.99

11

Right Latch

269501965

$30.99

12

DEFLECTOR - Call your local BRP dealership

269502156

Unavailable

13

Black Front Cosmetic | Model GTX 155, GTX S 155

269502089

$26.49

14

Spacer

291001203

$13.49

15

Rivet | Model-T3

293150067

$2.89

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Rubber Bumper

293830135

$15.99

19

Satin Denim Blue Hood Ass'y

269502312

$609.99

20

Black Hood Ass'y | Includes 10 to 10d

269502315

$609.99

21

RH Mirror Ass'y

269501920

$68.99

21

LH Mirror Ass'y

269501918

$68.99
