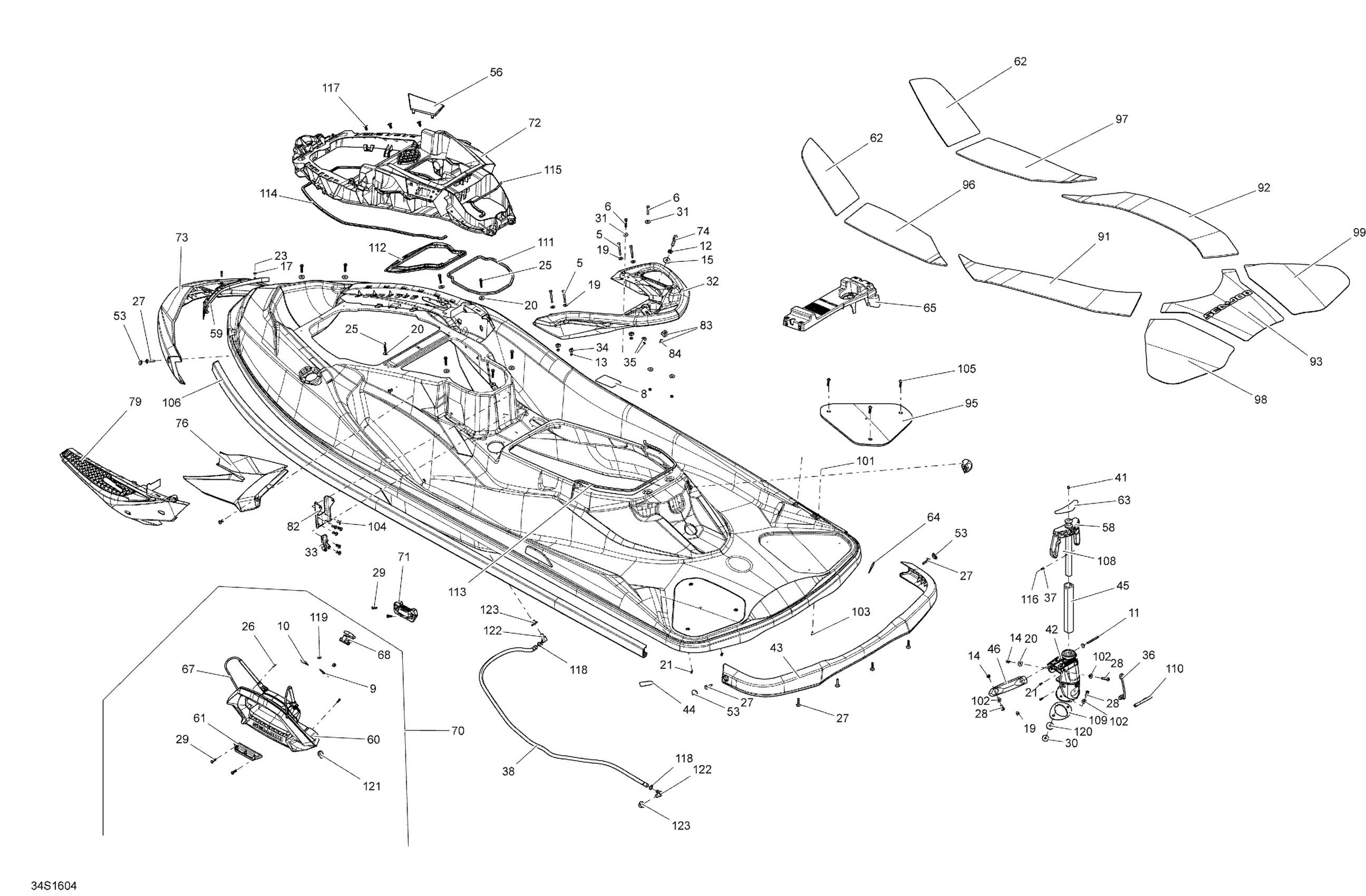

Sea-doo Wake PRO, 2016 Body Diagram

#

Description
Price

5

Hex. Screw M6 x 55

207065560

$0.96

6

Hex. Screw M6 X 40

207164060

$3.15

9

Warning WAKE

219903228

Unavailable

10

WAKE-PRO Decal

219903240

$27.58

11

Hex. Screw M6 x 100

230006060

Unavailable

12

Hex. Jam Nut M10

232100600

$2.12

13

Elastic Stop Nut M6, Brass

232561200

$4.03

14

Hex. Elastic Nut M8 Brass

232581200

$1.48

15

Flat Washer 10 mm, Stainless

234002600

$2.12

17

Flat Washer 4 mm, Stainless

234042600

$1.06

19

Flat Washer M6, Stainless

234062600

$0.73

20

Flat Washer 8 mm, Stainless

234082600

$2.27

21

Hex. Flange Screw K40 X 13

241141360

$0.64

23

Hex. Flange Screw K40 X 25

241142560

$2.49

25

Plastite Hex. Screw M6.8 X 35

243163560

$4.15

26

Flange Torx Screw K40 X 16

250000287

$2.00

27

Hexagonal Cap Screw M6 X35

250000399

$4.15

28

Torx Screw M8 X 40, Stainless

250000452

$3.73

29

Torx Screw Plastite M6

250000466

$6.45

30

Flat Washer 8 mm, Stainless

250200175

$1.48

31

Flat Washer M6.6 X 22

250200022

$2.15

32

REAR HANDLE ASSY - Call your local BRP dealership

291004623

Unavailable

34

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

35

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

36

Strap

269501299

$17.13

37

Ball Spring

269501651

$10.82

38

Was 275500008 Hose 12 mm

219704356

$6.82

41

Bumper Plug, Black

291001519

$4.91

43

Rear Bumper

291004274

$110.42

44

LH Nonskid

291002626

$11.15

45

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

46

Lateral Arm LH

291002711

$29.82

46

Lateral Arm RH

291002712

$29.82

53

Bumber Cap | Except Cab Package

291002744

$11.72

56

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable

58

Molded Handle

291004766

$182.81

59

DECK NOSE - Call your local BRP dealership

291002818

$13.12

60

Wakeboard Rack

295100453

$218.63

61

Lower Anchorage

291002864

$13.52

62

ANTI SLIP MAT FR - Call your local BRP dealership

291002931

Unavailable

62

LH Front Carpet

291002930

$6.58

63

Warning Label

219903137

Unavailable

64

RH NONSKID - Call your local BRP dealership

291002937

Unavailable

65

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

67

Elastic Rope Ass'y

291002979

$35.04

68

Latch

291002980

$26.09

70

Wakeboard Rack

295100453

$218.63

71

Upper Anchorage

291003582

$13.52

72

Front Module

291004595

$251.46

73

Front Bumper

291004275

$73.10

74

Seat Stud

291003878

$44.00

76

RH Cosmetic This part replaces 291004245.

291004245

$122.36

76

LH COSMETIC - Call your local BRP dealership This part replaces 291004240.

291004638

Unavailable

79

Front RH Cosmetic Ass

291004176

$393.25

79

FRONT LH COSMETIC ASS - Call your local BRP dealership

291004177

Unavailable

82

SEAT PIVOT - Call your local BRP dealership

291004210

Unavailable

83

Elastic Nut M10 Housing

271001732

Unavailable

84

Elastic Stop Nut M10, Brass

232501200

$2.48

91

ANTI SLIP MAT REAR L - Call your local BRP dealership

291004361

Unavailable

92

ANTI SLIP MAT REAR R - Call your local BRP dealership

291004362

Unavailable

93

Carpet

291004291

$59.67

95

LH SPACER - Call your local BRP dealership

291004295

Unavailable

96

ANTI SLIP MAT CTRL L - Call your local BRP dealership

291004359

Unavailable

97

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291004360

Unavailable

98

Carpet

291004336

$38.03

99

Carpet

291004337

$38.03

101

Black, Snap Cap

293000014

$0.97

102

Flat Washer M8.5 x 18

293050001

$1.48

103

Rivet 1/8"

293150016

$0.33

104

Pop Rivet 3/16"

293150123

$3.94

105

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

106

Lateral Bumper

291003872

$73.10

108

Type "U" Metallic Drive Screw

293150167

$1.67

109

Seal

293250151

$9.64

110

Replacing Kit for Pylon Strap

295100740

$24.60

111

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

112

NEOPRENE SEAL - Call your local BRP dealership

293250365

Unavailable

113

Gasket 3000Mm Long

219704378

$25.34

114

GASKET - Call your local BRP dealership

293250259

Unavailable

115

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

116

Ball 1/4"

293350062

$2.42

117

Black Dart

293730010

$0.93

118

Tie Wrap 94 mm | 4X4

293750001

$0.96

119

Rubber Bumper

293830005

$6.12

120

Rubber Washer

293830037

$2.68

121

Rubber Buffer

293830119

$16.39

122

Elbow Fitting

414523600

$4.58

123

Grommet

513033435

$4.28
