07- Steering

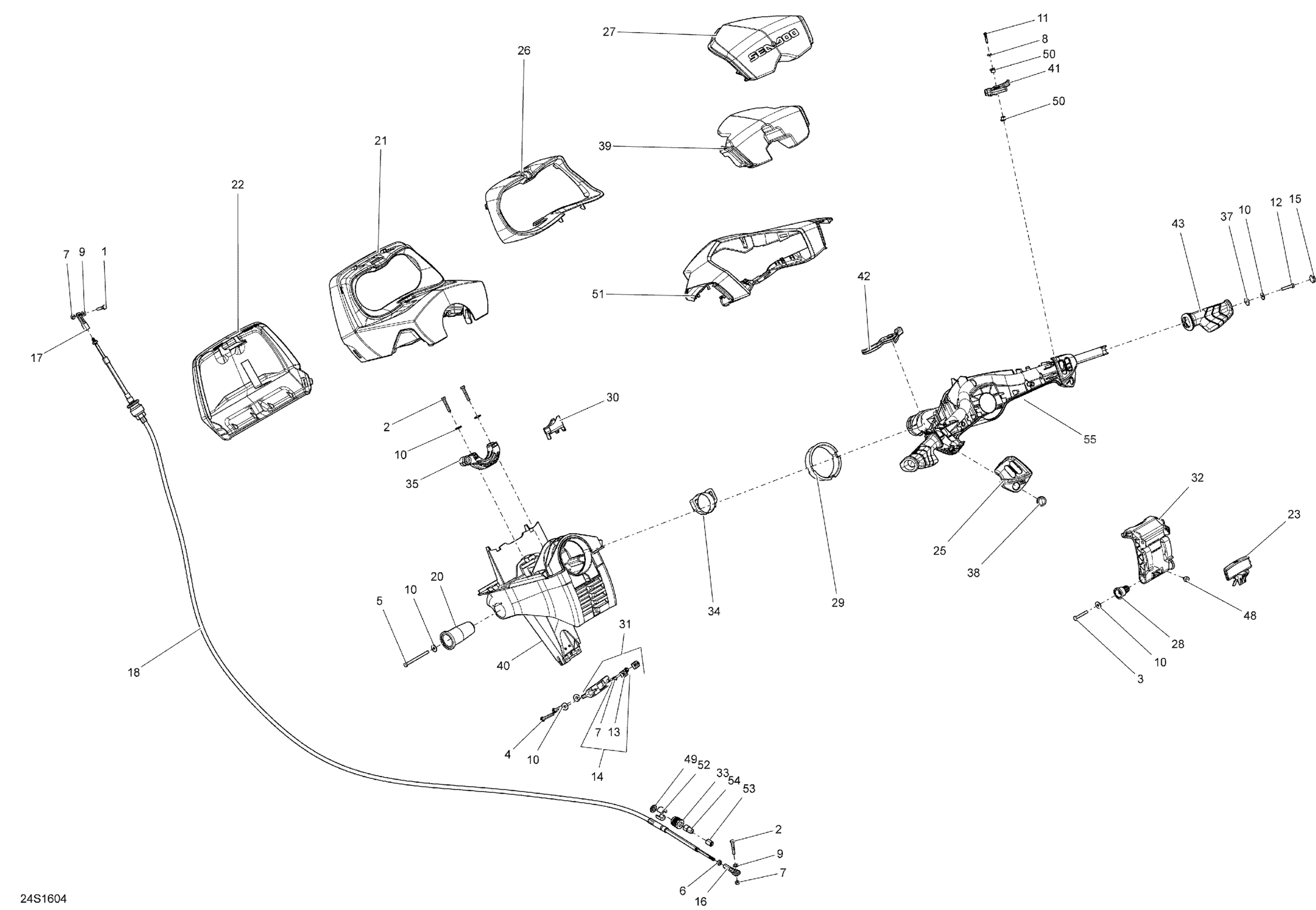

Sea-doo Wake PRO, 2016 07- Steering Diagram
#
1
Hex. Screw M6 X 30
207063060
$1.89
2
Hex. Screw M6 X 35
207063560
$2.22
2
Hex. Screw M6 X 35
207163560
$1.49
3
Hex. Screw M6 X 40
207064060
$1.69
4
Hex. Screw M6 X 50
207165060
$0.92
5
Hex Screw M6 X 80
207168060
$6.77
6
Hex. Nut 1/4"-28
211100056
$0.69
7
Elastic Stop Nut M6, Brass
232561200
$4.23
8
Flat Washer 4 mm, Stainless
234042600
$1.15
9
Stainless Flat Washer M6
234061600
$0.33
10
Flat Washer M6, Stainless
234062600
$0.77
11
Hex. Flange Screw K40 X 25
241142560
$2.64
12
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
13
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
14
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
15
Black, Cap
277000203
$9.39
16
Ball Joint
277000775
$51.99
17
Ball Joint
277001180
$35.99
18
Steering Cable
277001602
$285.99
20
Steering Support Pivot
277001605
$20.99
21
Gauge Support
277001953
$61.99
22
Gauge Support Cover
277001613
$28.99
23
LOCK - Call your local BRP dealership
277001616
$18.99
25
Housing Cover RH
277001625
$19.99
25
Housing Cover LH
277001626
$19.99
26
Gauge Trim, Black
277001630
$55.99
27
Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach
277001904
$57.99
28
Pivot
277001652
$15.99
29
Wear Ring
277001653
$12.17
30
Spacer
277001654
$15.99
31
Thrust Support Ass'y
277001655
$28.99
32
Handle Ass'y | Includes 780 to 780c
277001658
$132.49
33
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
34
Wear Ring
277002318
$15.99
35
Support Ass'y | Includes 460 to 460b
277002179
$22.49
37
Insert Grip Handle
277001863
$8.83
38
Red, Knob Switch
277001887
$9.69
38
Grey Knob Switch
277001888
$11.49
39
Handlebar Foam
277001921
$91.99
40
Steering Support | Includes 710 to 710b
277001942
$114.99
41
Throttle Handle
277001944
$38.99
42
Reverse Handle
277001945
$43.99
43
Deep Black, RH Handle Grip
277001946
$20.99
43
Deep Black, LH Handle Grip
277001958
$20.99
48
Rubber Bumper
293830005
$8.09
49
Rubber Washer
293830063
$1.90
50
Bushing
293900091
$4.52
51
Steering Cover | IBR
277001969
$68.99
52
Half Ring
277001527
$10.37
53
Wiper Rod
277001582
$11.11
54
End Piece
277001583
$14.49
55
Steering Column
277001963
$381.49
