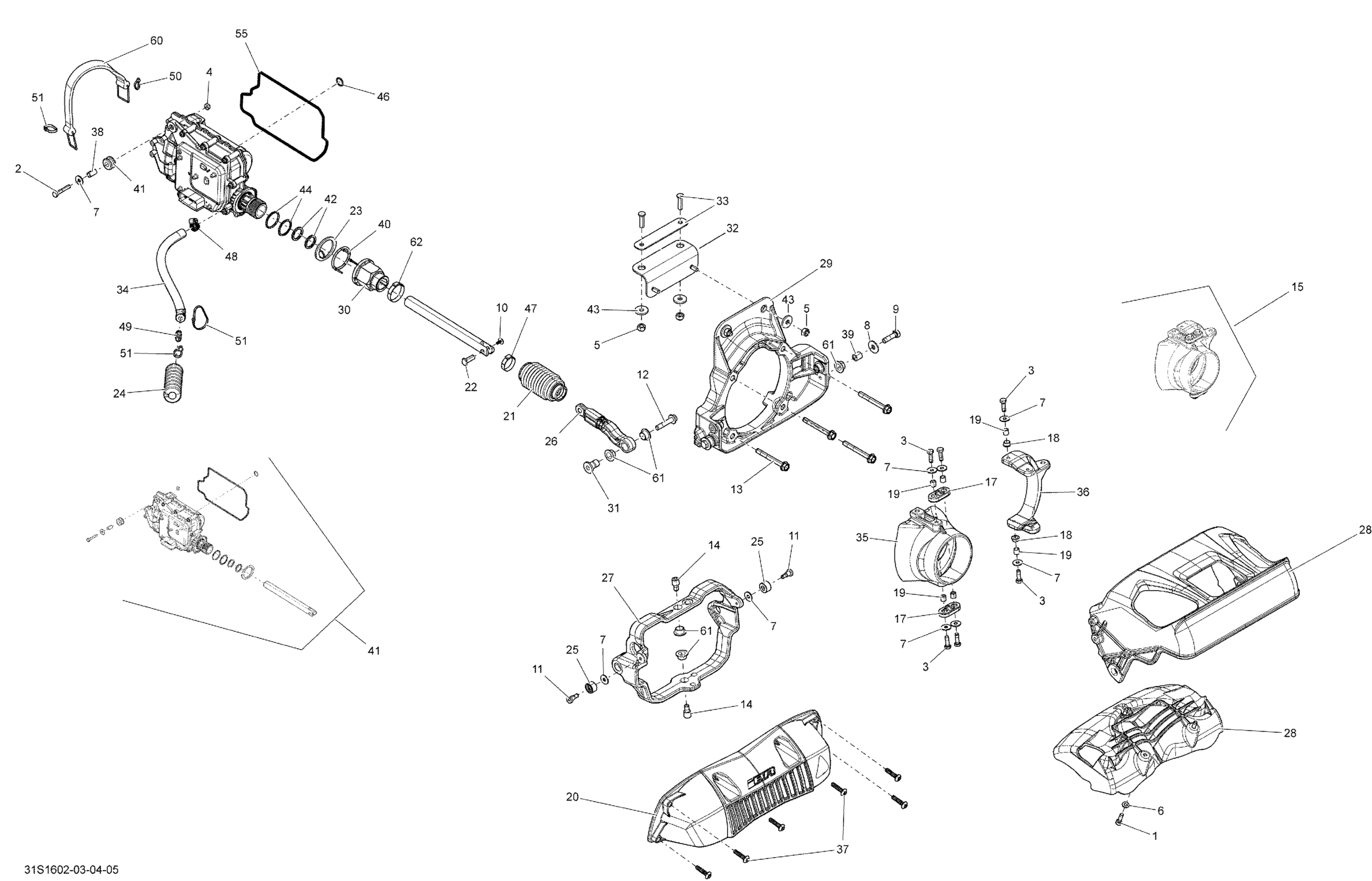

Sea-doo Wake PRO, 2016 Reverse Diagram

#

Description
Price

1

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

2

Hex. Screw M6 X 35

207063560

$1.85

3

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

4

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Hex. Elastic Nut M8 Brass

232581200

$1.29

6

Stainless Flat Washer M6

234061600

$0.25

7

Flat Washer M6, Stainless

234062600

$0.64

8

Flat Washer 8 mm, Stainless

234082600

$1.98

9

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

10

Hexalob Screw M4 X 10

250000565

$1.74

11

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

12

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

13

Screw-Hex.Flange DIN.6921 S.Grip

250000835

$3.25

14

Screw Socket S.Grip

250000837

$6.59

15

NOZZLE ASS'Y - Call your local BRP dealership | Includes 260 TO 260f

267000905

Unavailable

17

Direction Lever Arm

268000058

$8.94

18

Bushing

268000059

$9.71

19

Spacer

268000060

$10.09

20

Guard

268000162

$23.37

21

Boot

268000186

$3.59

22

Shoulder Pin

268000309

$14.92

23

Gasket

268000208

$12.52

24

Inner Boot This part replaces 268000345.

268000211

$8.14

25

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

26

Linkage Arm

268000256

$17.52

27

Trimming Ring

268000247

$74.72

28

Gate Reverse Ass'y | Includes 280 TO 280i

268000296

$102.02

29

Bracket

268000266

$71.47

30

IBR Nut

268000308

$8.57

31

Bushing

268000269

$12.61

32

Reverse Bracket

268000304

$13.62

33

Ass'y Bracket

268000271

$9.23

34

Was 509000407 Hose 8 mm

219704420

$40.27

35

Jet Pump Nozzle

267000727

$60.42

36

Nozzle Lever, Black

268000148

$48.07

37

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

38

Spacer

271001020

$9.23

39

Spacer

271001039

$11.78

40

Rubber Gasket

277001977

$1.76

41

Actuator | Includes 10 to 10j

278003606

$643.47

42

O-Ring

279000108

$4.89

43

Flat Washer

279000336

$8.35

44

O-Ring

293300107

$0.83

46

O-Ring

293300187

$3.20

47

Crimp Clamp

293650099

$4.60

48

Tridon Gear Clamp

293650171

$2.46

49

Fitting-Straig

293710157

$5.36

50

Tie Wrap 94 mm | 4X4

293750001

$0.83

51

Tie Wrap 142 mm

293750002

$0.88

60

Fuel Tank Strap

293850123

$13.62

61

Venturi Bushing

293900007

$3.71

62

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable
