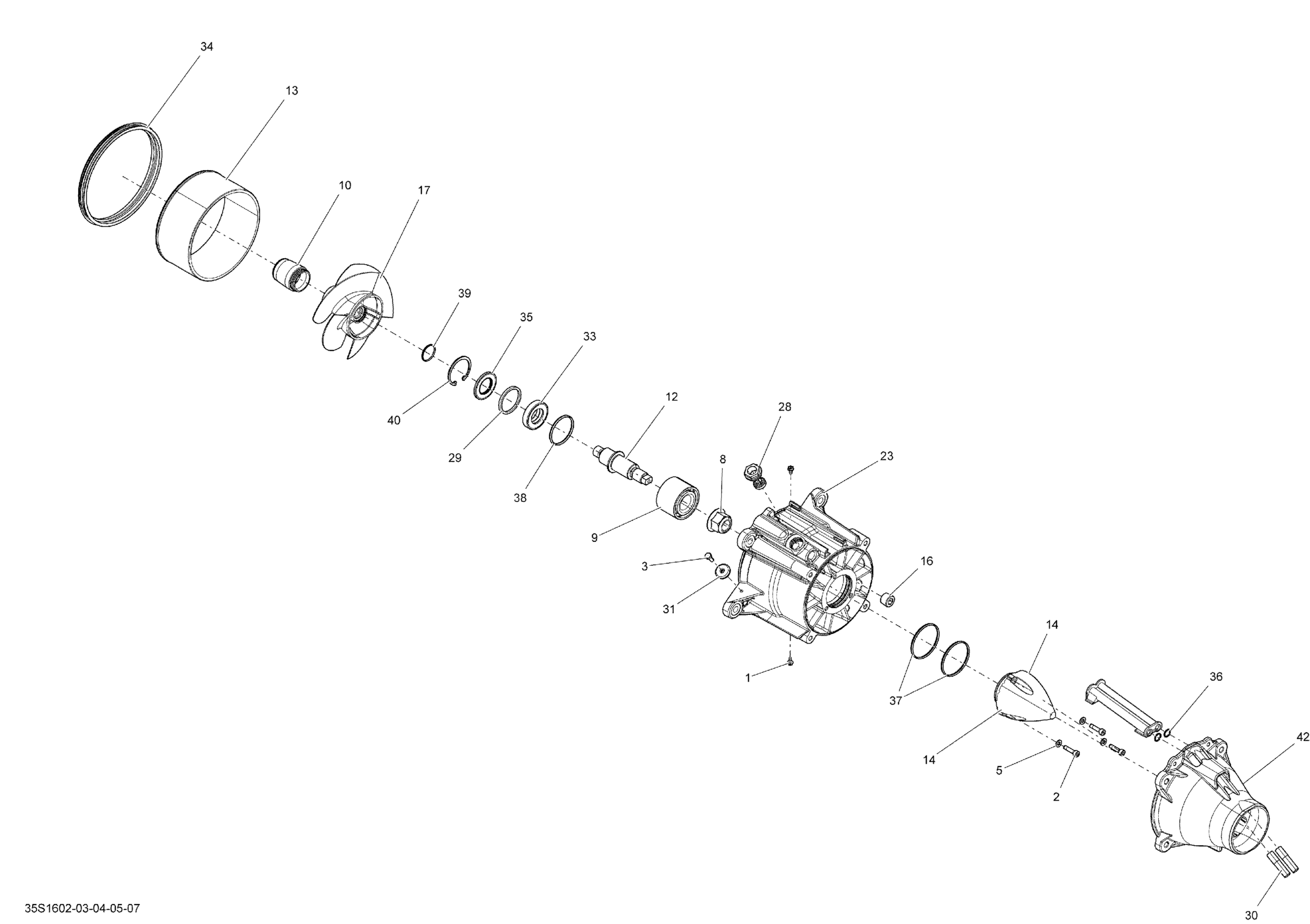

Sea-doo Wake PRO, 2016 Pump Diagram

#

Description
Price

1

Hex. Screw 10-32 X 3/8", Stainless

204100269

$0.87

2

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

3

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

5

Stainless Flat Washer M6

234061600

$0.28

8

Elastic Flange Nut M20

250100104

$11.15

9

Angled Bearing This part replaces 267000030.

267000900

$76.09

10

Guard

271002228

$11.31

12

Impeller Shaft

267000388

$108.18

13

Wear Ring

267000372

$79.07

14

Impeller Cover

267000428

$16.39

16

Black, Plastic Plug

267000469

$6.88

17

Impeller Ass'y | Model GTX LTD S 260 This part replaces 267000623.

267000945

$462.66

23

Impeller Housing

271002018

$261.16

28

Plug | Includes 370z to 370z1

267000282

$16.39

29

Spacer

271001393

$7.03

30

Siphon Tube

271001885

$1.46

31

Anode Zinc

271001920

$13.12

33

Seal

271002071

$30.57

34

Neoprene Seal

293200087

$10.55

35

Oil Seal

293200089

$17.88

36

O-Ring

293300013

$6.54

37

O-Ring

293300086

$3.33

38

O-Ring

293300090

$6.85

39

O-Ring

293300114

$14.90

40

Circlip

293370038

$8.18

42

Black Venturi

267000844

$194.75
