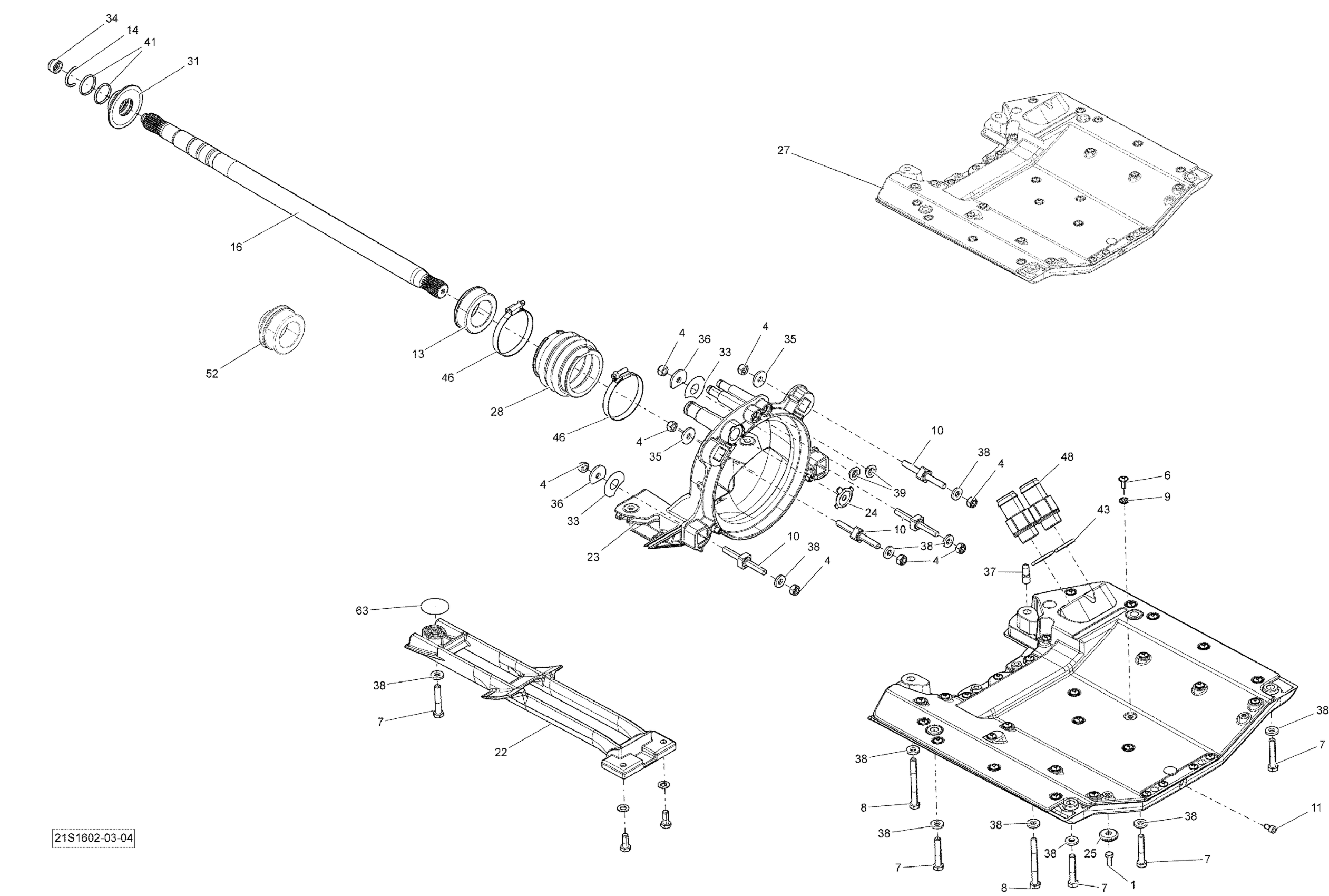

Sea-doo Wake PRO, 2016 Propulsion Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

4

Hex. Elastic Nut M8 Brass

232581200

$1.29

6

Torx Screw M6 X 14

250000384

$6.15

7

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

8

Hexagonal Head Cap Screw M8 X 75

250000812

$2.35

9

Sealing Washer

250200114

$3.61

10

Square Stud

250300046

$11.91

11

Socket Drain Plug M6 X 12

250500005

$11.74

13

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

14

C-Clip

271001577

$2.68

16

Drive Shaft

271001719

Unavailable

22

Pump Grate

271001967

$85.12

23

Pump Support

271001964

$33.12

24

Reducer, Green This part replaces 271001586.

271002029

$12.82

25

Anode Zinc

271001920

$11.43

26

Pump Support

271001931

$36.89

27

Riding Plate Ass'y | Includes 210 to 210f

271001939

$181.32

28

Bellow This part replaces 271001422.

271001933

$18.82

31

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$77.32

33

Shim 0.3 mm

272000053

$8.02

34

Drive Shaft Plug

272000173

$7.02

35

Flat Washer

279000336

$8.35

36

Flat Washer

279000326

$3.85

37

Cap Plug

293000105

$3.38

38

Flat Washer M8.5 x 18

293050001

$1.29

39

Watertight Seal

293250084

$5.81

41

O-Ring

293300107

$0.83

43

O-Ring

293300121

$6.18

46

Norma Clamp

293650079

$8.89

48

Strait Fitting

293710124

$12.91

52

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$77.32

63

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable
