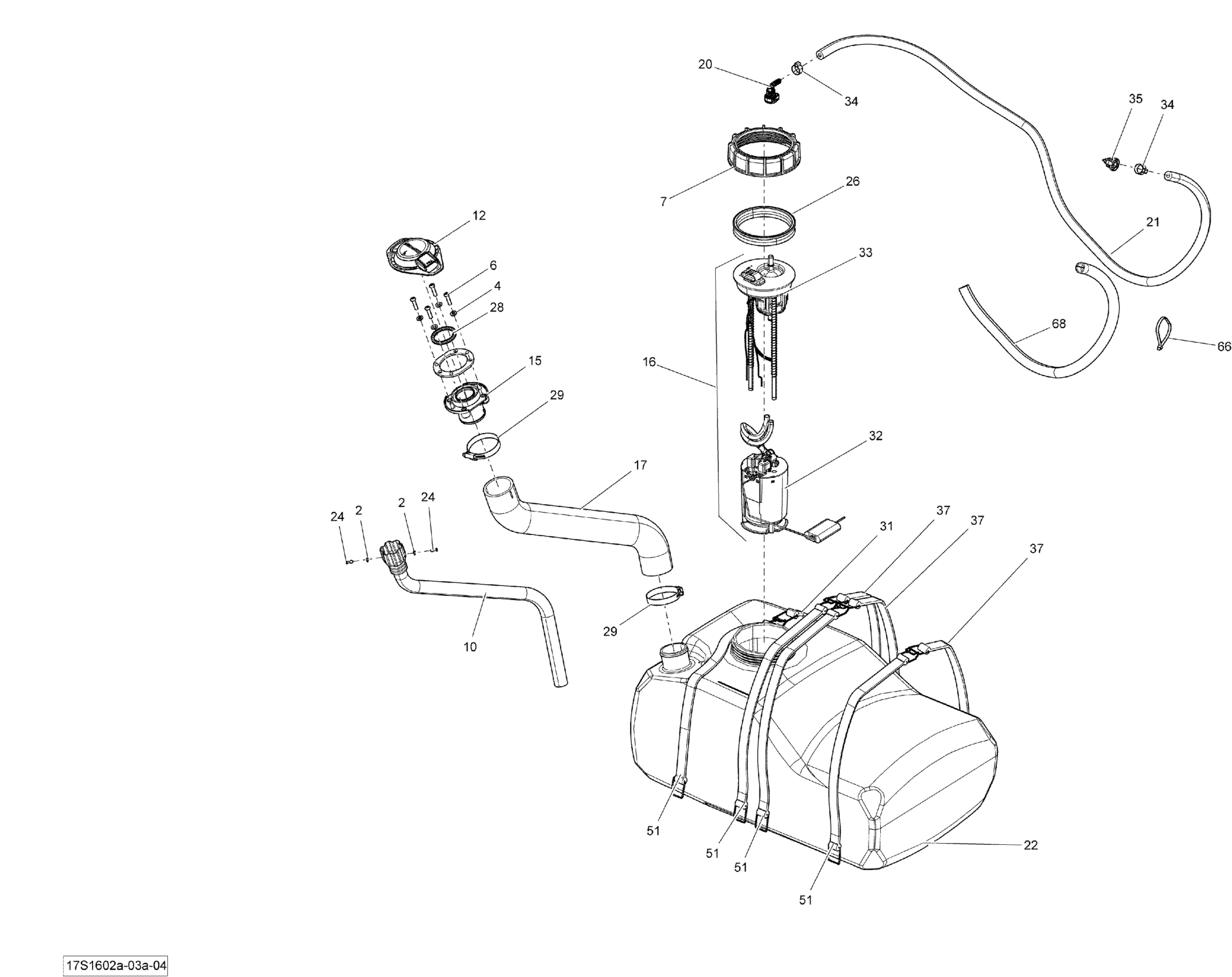

Sea-doo Wake PRO, 2016 02- Fuel System Diagram
#
Description
Price
2
Flat Washer M3, Stainless
234032600
$0.55
4
Stainless Flat Washer M6
234061600
$0.33
6
Torx Screw M6 X 25, Scotch Grip
250000328
$2.19
7
Special Nut M130
250100062
$21.99
10
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
12
Fuel Cap Ass'y
275500832
$69.99
15
Fuel Filler Neck
275500848
$39.49
16
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
17
HOSE - Call your local BRP dealership
275500917
Unavailable
20
Quick Disconnect
275500921
$16.49
21
HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership
219704395
Unavailable
22
Fuel Tank
275500962
$359.99
24
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
26
Gasket
293250173
$18.49
28
X-Ring
293300139
$23.99
29
Norma Clamp
293650081
$12.18
31
Fuel Tank Strap
293850087
$19.99
32
Sensor Lever
275500780
$224.99
33
Fuel Filter
270600113
$33.99
34
Crimp Clamp
293650053
$3.09
35
Elbow Fitting 90°
293710105
$14.22
37
Fuel Tank Strap
293850093
$21.99
51
Fuel Tank Strap
293850101
$17.49
66
Tie Wrap 368 mm
293750008
$1.04
68
Tubing 16 Mm 1000Mm Long
219704408
$7.49
