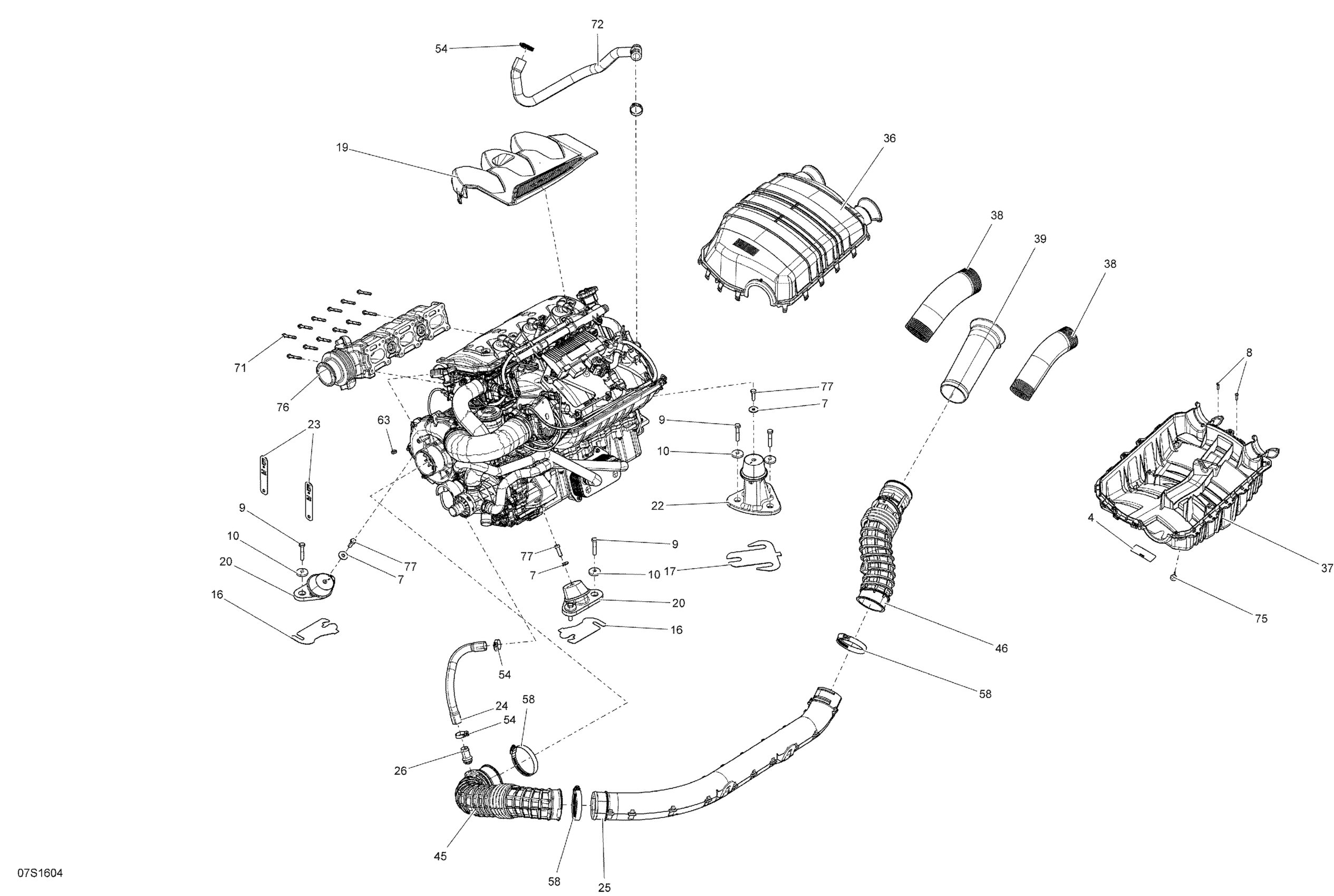

Sea-doo Wake PRO, 2016 Engine Diagram

#

Description
Price

4

Air Silencer Notice Decal

219903177

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Flange Torx Screw K40 X 16

250000287

$2.11

9

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

10

Cone Washer

250200018

$5.61

16

Shim 1.3 mm

270000762

$12.99

17

Shim 1.3 mm

270000770

$16.49

19

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

20

Engine Support Ass'y

270001081

$109.99

22

Rubber Mount

270000886

$129.99

23

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

24

Formed Hose

270000950

$10.99

25

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

26

Breather Valve

273000234

$14.49

36

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

37

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

38

Air Silencer Hose

273000290

$22.49

38

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

39

Intake Hose

273000359

$48.99

45

Hose Intake, Rear | Model GTR

273000328

$54.99

46

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

54

Tridon Gear Clamp

293650051

$4.19

58

Tridon Clamp

293650179

$11.49

71

Torx Flange Screw M6 X 45

420641198

$4.12

72

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

75

Rubber Stopper

708000759

$4.19

76

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

77

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43
