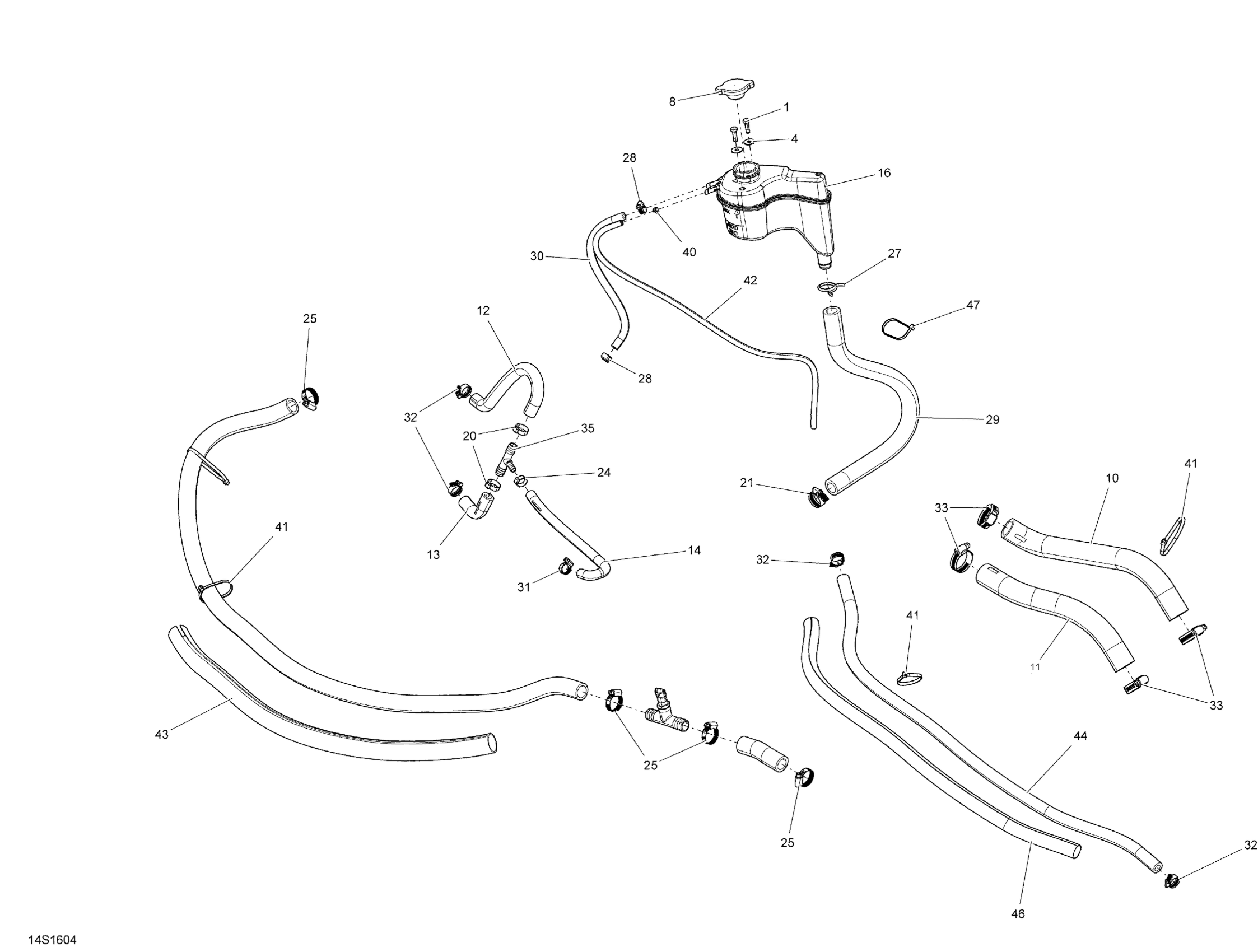

Sea-doo Wake PRO, 2016 Cooling System Diagram

#

Description
Price

1

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

4

Flat Washer M6, Stainless

234062600

$0.77

8

Pressure Cap | Includes 720 to 720a

276000100

$25.99

10

Radiator Hose This part replaces 276000240.

276000491

$49.99

11

Radiator Hose

276000241

$32.99

12

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

13

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

14

Formed Hose | Without Catalyst

276000246

$19.49

16

Coolant Tank

276000265

$134.99

20

Oetiker Clamp

293650012

$7.49

21

Tridon Gear Clamp

293650019

$5.82

24

Oetiker Clamp | Europe

293650030

$5.19

25

Tridon Gear Clamp

293650051

$4.19

27

Spring Clamp

293650115

$3.09

28

Tridon Gear Clamp

293650170

$1.99

29

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

30

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

31

Tridon Gear Clamp

293650171

$3.09

32

Tridon Gear Clamp

293650172

$3.09

33

Tridon Gear Clamp

293650185

$13.99

35

T-Fitting

293710116

$17.62

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 368 mm

293750008

$1.04

42

Polyurethane Hose 10000Mm Long

219704410

$56.99

43

Tubing 25 MM 1000MM Long

219704402

$15.99

44

Was 276000001 Hose 12.5 mm

219704394

$51.99

46

Was 515175319 Tubing 22 mm

219704423

$14.99

47

Tie-Rap 180 mm

414115200

$0.11
